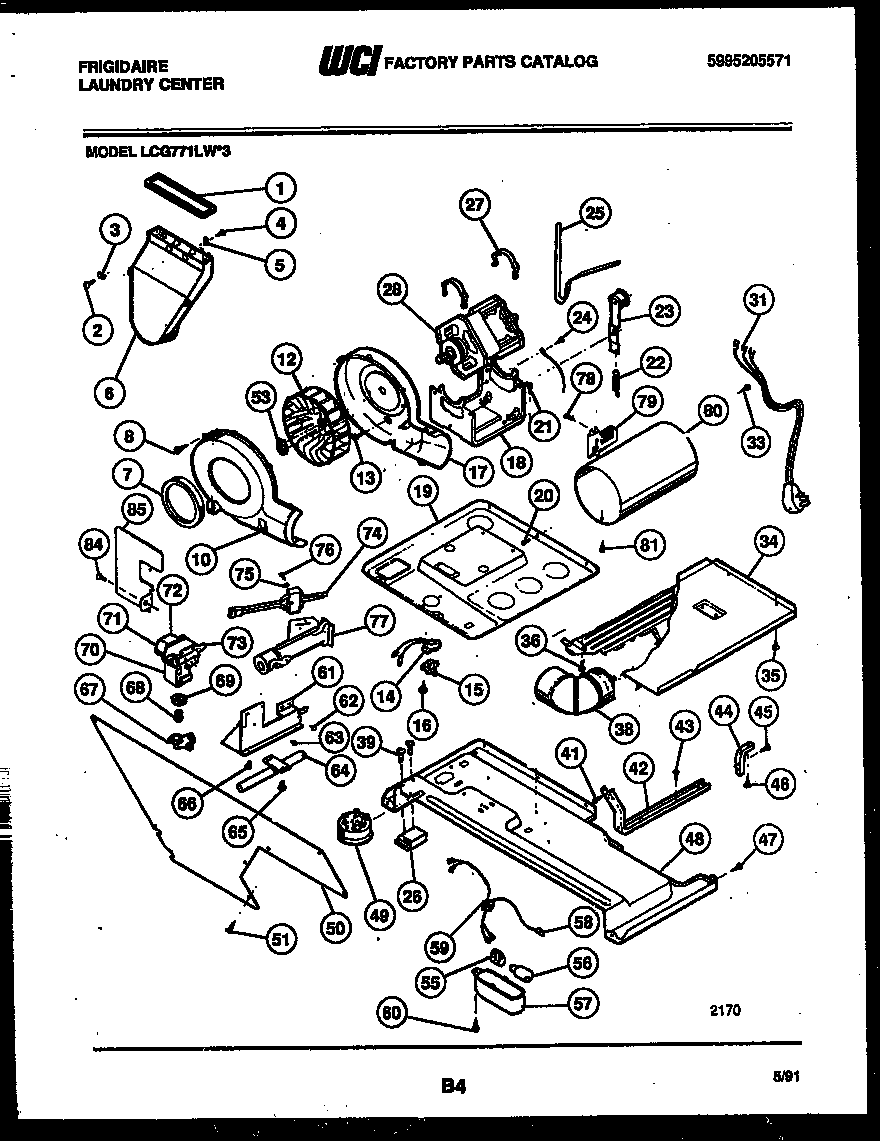

LCG771LL3 03 – MOTOR, BLOWER AND CABINET PARTS

LCG771LL3 03 – MOTOR, BLOWER AND CABINET PARTS

Written by

in

LCG771LL3 03 – MOTOR, BLOWER AND CABINET PARTS

Products

PositionProduct
*45636WCI 5303937054
*45636PCK3100 Frigidaire Conversion Kit
1SEAL – AIR DUCT
45303300265 Frigidaire Oven Screw
5CLIP (8)
65304521121 Frigidaire Duct
73204490 Frigidaire Seal
8SCREW (6)
105304485558 Frigidaire Blower Housing Assembly, Front & Rear
12BLOWER WHEEL
14WCI 5303207400
15CONTROL THERMOSTAT
16134178901 Frigidaire Screw
17WCI 5303271179
19WCI 3204311
20131168200 Frigidaire Dryer Screw
21WCI 3281077
223205241 Frigidaire Idler Spring
23IDLER ARM
25WCI 3204314
26BLOCK-SUPPORT
27WCI 5303212834
28MOTOR & PULLEY (DRYER)
31WCI 5303207402
33134154100 Frigidaire Screw 10-32 x 0.375 Co
34WCI 5303207403
38ELBOW
39131205100 Frigidaire Screw
42BRACKET (2)
443204326 Frigidaire Bracket Assembly
46SCREW (2)
48137455500 Frigidaire Lower Pan Assembly
49SWITCH-PRESSURE
50SAFETY COVER
535304488479 Frigidaire Washer Hose Clamp
55RECEPTACLE-LAMP
56131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
57WCI 5303209106
58WCI 5303269740
59WCI 5303209108
61BRACKET-VALVE
63131243800 Frigidaire Screw
64WCI 5303207405
67VALVE-ANGLE
68TAIL PIECE
69NUT-HEX UNION
70DRYER GAS VALVE
715303931775 Frigidaire Dryer Coil Kit
735303207410 Frigidaire Orifice
73A5303207411 Frigidaire Orifice
745303937186 Frigidaire Dryer Flat Igniter Assembly
755300809968 Frigidaire Dishwasher P-1 Washer
76WCI 5303281150
77WCI 5303207412
795303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80131712405 Frigidaire Tube
81WCI 08011280
84131302800 Frigidaire Drum Vane Screw
85WCI 5303212889
