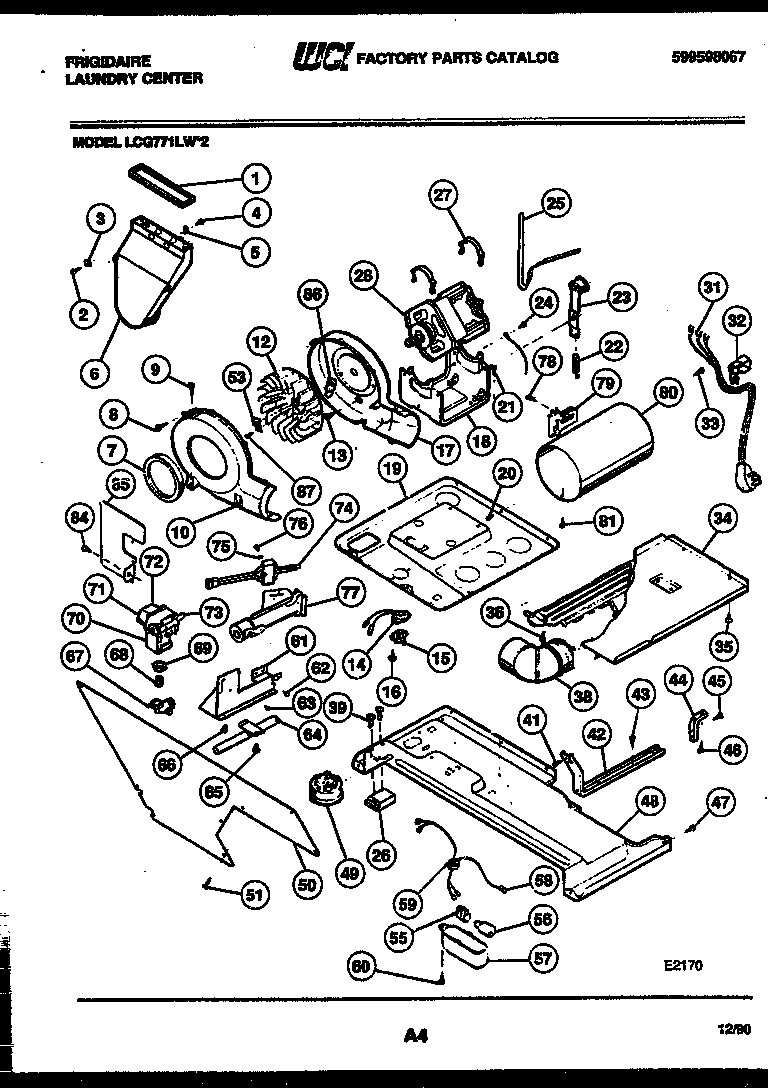

LCG771LW2 03 – MOTOR AND BLOWER PARTS

LCG771LW2 03 – MOTOR AND BLOWER PARTS

Written by

in

LCG771LW2 03 – MOTOR AND BLOWER PARTS

Products

PositionProduct
*38327PCK3100 Frigidaire Conversion Kit
*38327WCI 5303937054
*38327WCI 5303209664
1SEAL – AIR DUCT
45303300265 Frigidaire Oven Screw
5CLIP (8)
65304521121 Frigidaire Duct
73204490 Frigidaire Seal
8SCREW (6)
10WCI 3204301
12WCI 5303937064
14WCI 5303207400
15CONTROL THERMOSTAT
16134178901 Frigidaire Screw
17WCI 3204309
19WCI 3204311
20131168200 Frigidaire Dryer Screw
21WCI 3281077
223205241 Frigidaire Idler Spring
23IDLER ARM
25WCI 3204314
26BLOCK-SUPPORT
27WCI 5303212834
28MOTOR & PULLEY (DRYER)
31WCI 5303212888
32WCI 5303209663
33134154100 Frigidaire Screw 10-32 x 0.375 Co
34WCI 5303207403
38ELBOW
39131205100 Frigidaire Screw
42BRACKET (2)
443204326 Frigidaire Bracket Assembly
46SCREW (2)
48137455500 Frigidaire Lower Pan Assembly
49SWITCH-PRESSURE
50SAFETY COVER
53CLAMP-FRONT
55RECEPTACLE-LAMP
56131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
57WCI 5303209106
58WCI 5303269740
59WCI 5303209108
61BRACKET-VALVE
63131243800 Frigidaire Screw
64WCI 5303207405
67VALVE-ANGLE
68TAIL PIECE
69NUT-HEX UNION
70DRYER GAS VALVE
715303931775 Frigidaire Dryer Coil Kit
735303207410 Frigidaire Orifice
73A5303207411 Frigidaire Orifice
745303937186 Frigidaire Dryer Flat Igniter Assembly
755300809968 Frigidaire Dishwasher P-1 Washer
76WCI 5303281150
77WCI 5303207412
795303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80131712405 Frigidaire Tube
81WCI 08011280
84131302800 Frigidaire Drum Vane Screw
85WCI 5303212889
86WCI 3205237
87WCI 3205238
