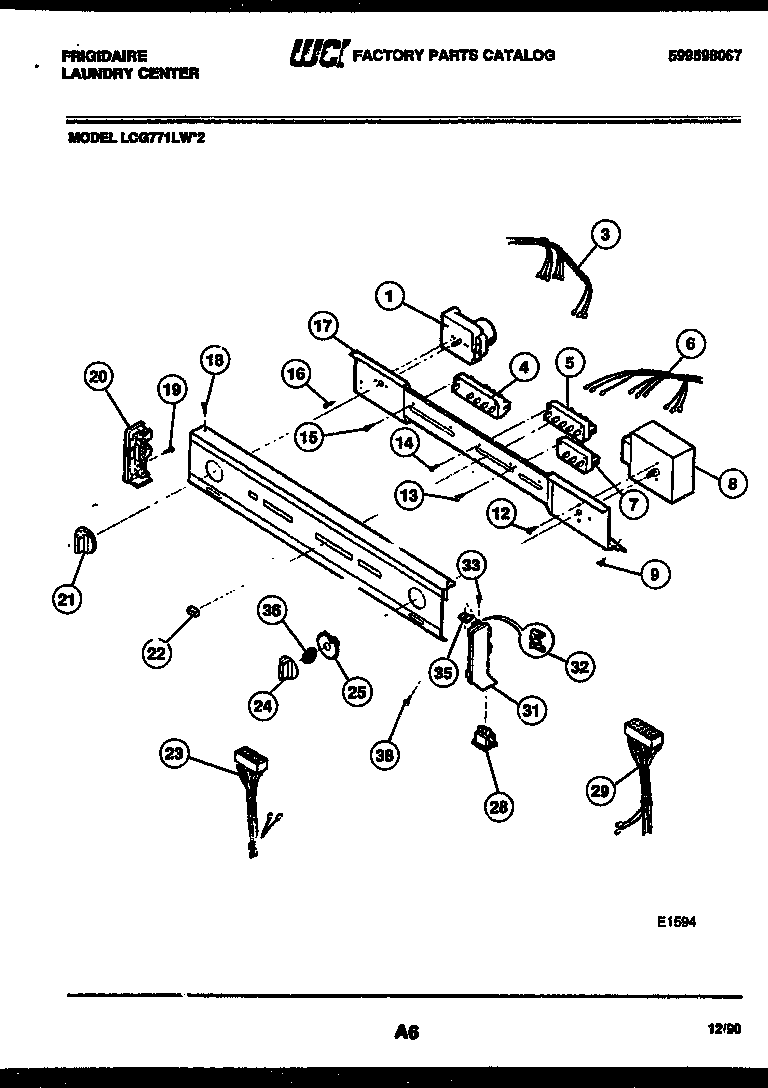

LCG771LW2 04 – CONSOLE AND CONTROL PARTS

LCG771LW2 04 – CONSOLE AND CONTROL PARTS

Written by

in

LCG771LW2 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
*38329SPACER PAD-CONTROL PANEL BRACKET (2)
1WCI 5303269848
3WCI 5303209667
4SWITCH-TEMP DRYER
5SWITCH-TEMP WASHER
6HARNESS-WASHER CONTROL
7WCI 3204335
8TIMER-WASHER
9131302800 Frigidaire Drum Vane Screw
16SCREW (2)
17WCI 5303209112
18PANEL-CONTROL
19131168200 Frigidaire Dryer Screw
20WCI 5303209671
21KNOB-DRYER
22WCI 5303207416
22PUSHBUTTON (5) SQUARE
22APUSHBUTTON (6) ROUNDED
23WCI 5303210276
24WCI 3205643
25INDICATOR – WASHER TIMER
28WCI 5303209123
29HARNESS-WASHER
31WCI 5303209675
32WCI 3204357
33SCREW (2)
35CLIP (8)
36SPACER-TIMER-SHAFT
38SCREW (2)
