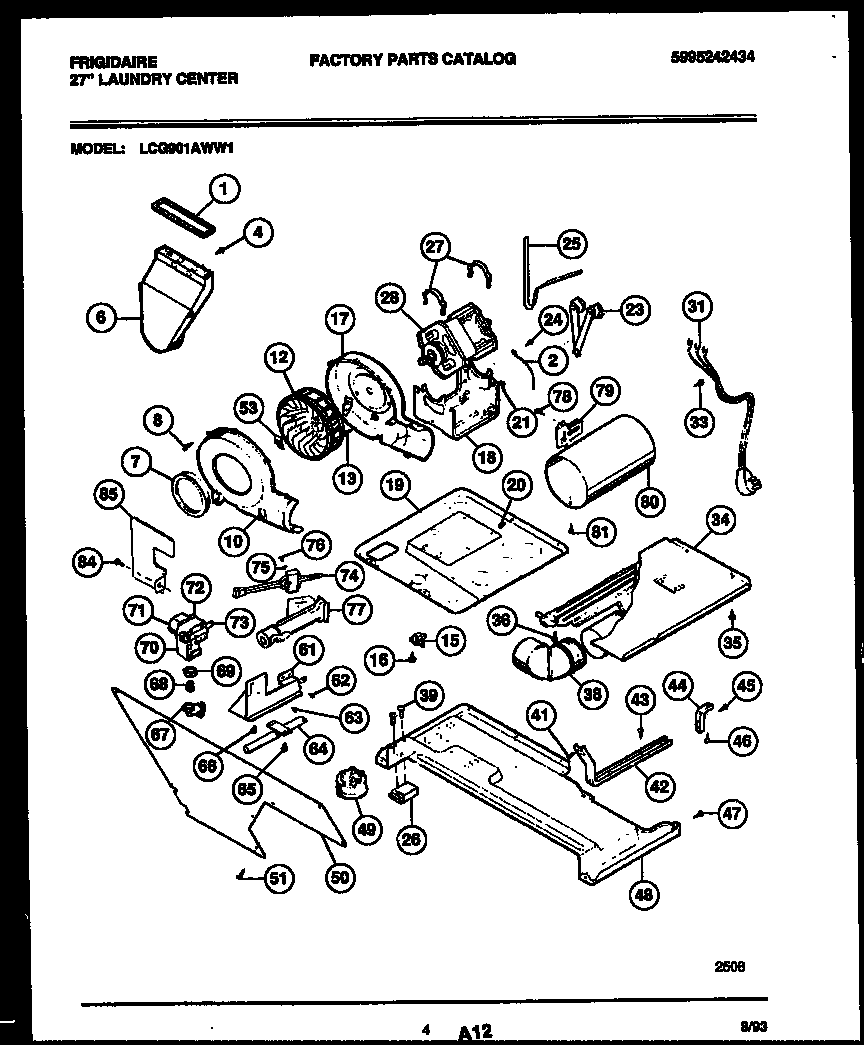

LCG901ADD1 03 – MOTOR, BLOWER AND CABINET PARTS

LCG901ADD1 03 – MOTOR, BLOWER AND CABINET PARTS

Written by

in

LCG901ADD1 03 – MOTOR, BLOWER AND CABINET PARTS

Products

PositionProduct
*82247PCK3100 Frigidaire Conversion Kit
*82247WCI 5303937054
*82247WCI 5303272164
1WCI 131151200
2WCI 131062205
4SCREW (2)
65304521121 Frigidaire Duct
73204490 Frigidaire Seal
8SCREW (6)
105304485558 Frigidaire Blower Housing Assembly, Front & Rear
12BLOWER WHEEL
15WCI 131073400
16134178901 Frigidaire Screw
17WCI 5303271179
19WCI 3204311
21WCI 3281077
23WCI 131131501
25134503600 Frigidaire Dryer Belt
26BLOCK-SUPPORT
27WCI 5303212834
28WCI 131198500
31WCI 5303207402
33134154100 Frigidaire Screw 10-32 x 0.375 Co
34SHIELD-ACCESS
38ELBOW
39131205100 Frigidaire Screw
42BRACKET (2)
443204326 Frigidaire Bracket Assembly
46SCREW (2)
48137455500 Frigidaire Lower Pan Assembly
49WCI 5303293375
50SAFETY COVER
51131302800 Frigidaire Drum Vane Screw
535304488479 Frigidaire Washer Hose Clamp
61BRACKET-VALVE
63131243800 Frigidaire Screw
64WCI 5303207405
65WCI 08011280
67VALVE-ANGLE
68TAIL PIECE
69NUT-HEX UNION
70DRYER GAS VALVE
715303931775 Frigidaire Dryer Coil Kit
735303207410 Frigidaire Orifice
745303937186 Frigidaire Dryer Flat Igniter Assembly
755300809968 Frigidaire Dishwasher P-1 Washer
76WCI 5303281150
77WCI 5303207412
79WCI 131196900
80131712405 Frigidaire Tube
81131168200 Frigidaire Dryer Screw
84SCREW
85WCI 5303212889
