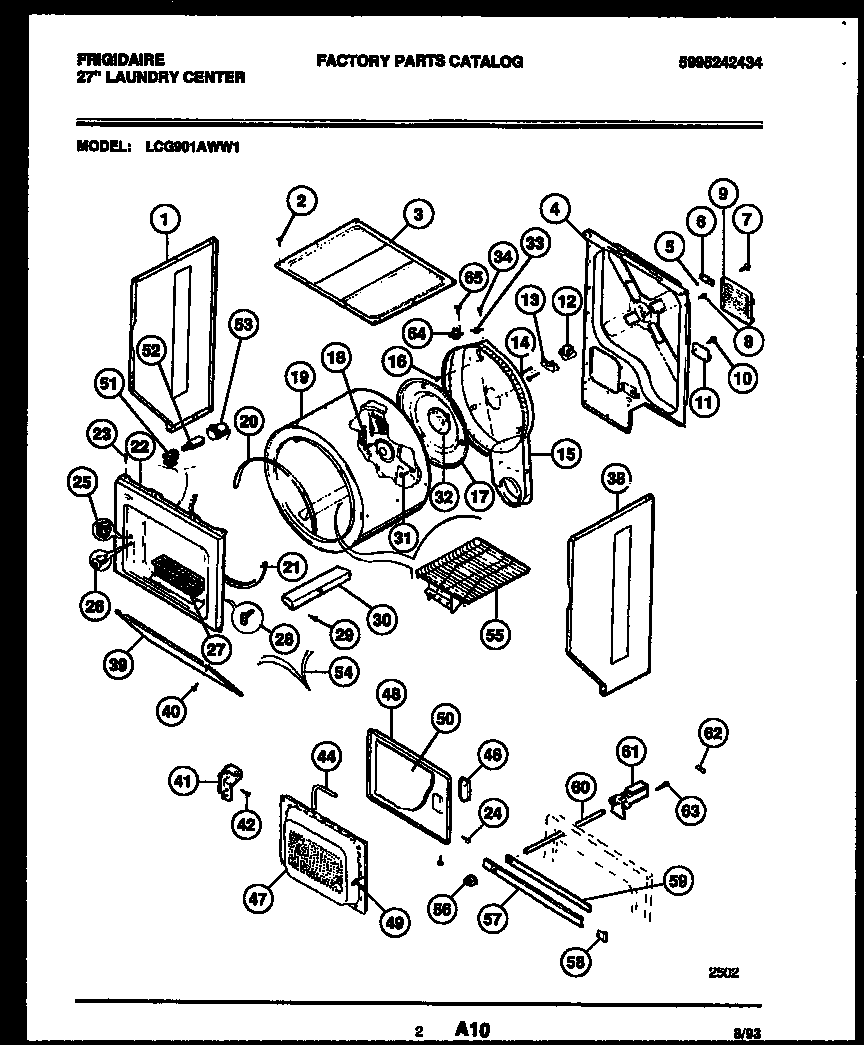

LCG901AWW1 02 – CABINET AND COMPONENT PARTS

Products

Position	Product
1	WCI 131084700
3	131883301 Frigidaire Panel
4	WCI 5303283283
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
9	PANEL-MOTOR ACCESS
11	COVER-TERM BLOCK
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	HEATER HOUSING & DUCT
17	3204254 Frigidaire Baffle Assembly
18	SCREW (3) (PART OF REAR BEARING KIT.)
19	134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
20	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
21	5303283286 Frigidaire Drum Felt Seal Lower Front
22	WCI 131150712
23	WCI 08011280
24	SCREW (8)
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	DOOR-SWITCH
27	LINT FILTER
28	CLIP GUIDE (4)
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
31	WCI 5303207393
32	5303931781 Frigidaire Shaft
33	WCI 5303272046
34	131168200 Frigidaire Dryer Screw
38	WCI 131084800
39	137546910 Frigidaire Panel
40	131202300 Frigidaire Screw
41	HINGE-UPPER
41A	HINGE-LOWER
42A	131302800 Frigidaire Drum Vane Screw
44	137551901 Frigidaire Gasket
46	WCI 131063600
47	WCI 5303300245
48	WCI 3204284
49	5303207102 Frigidaire Door Strike
50	134535300 Frigidaire Insulator
51	RECEPTACLE-LAMP
52	131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
53	WCI 3204288
54	WCI 5303212869
55	RACK-DRYER
56	WCI 5303300844
57	WCI 131191600
58	WCI 5303300846
59	ADHESIVE STRIP
60	WCI 3204296
61	WCI 3204295
62	WCI 3205240
63	131205100 Frigidaire Screw
64	134120900 Frigidaire Dryer Limiter Thermal
65	WCI 08010804
