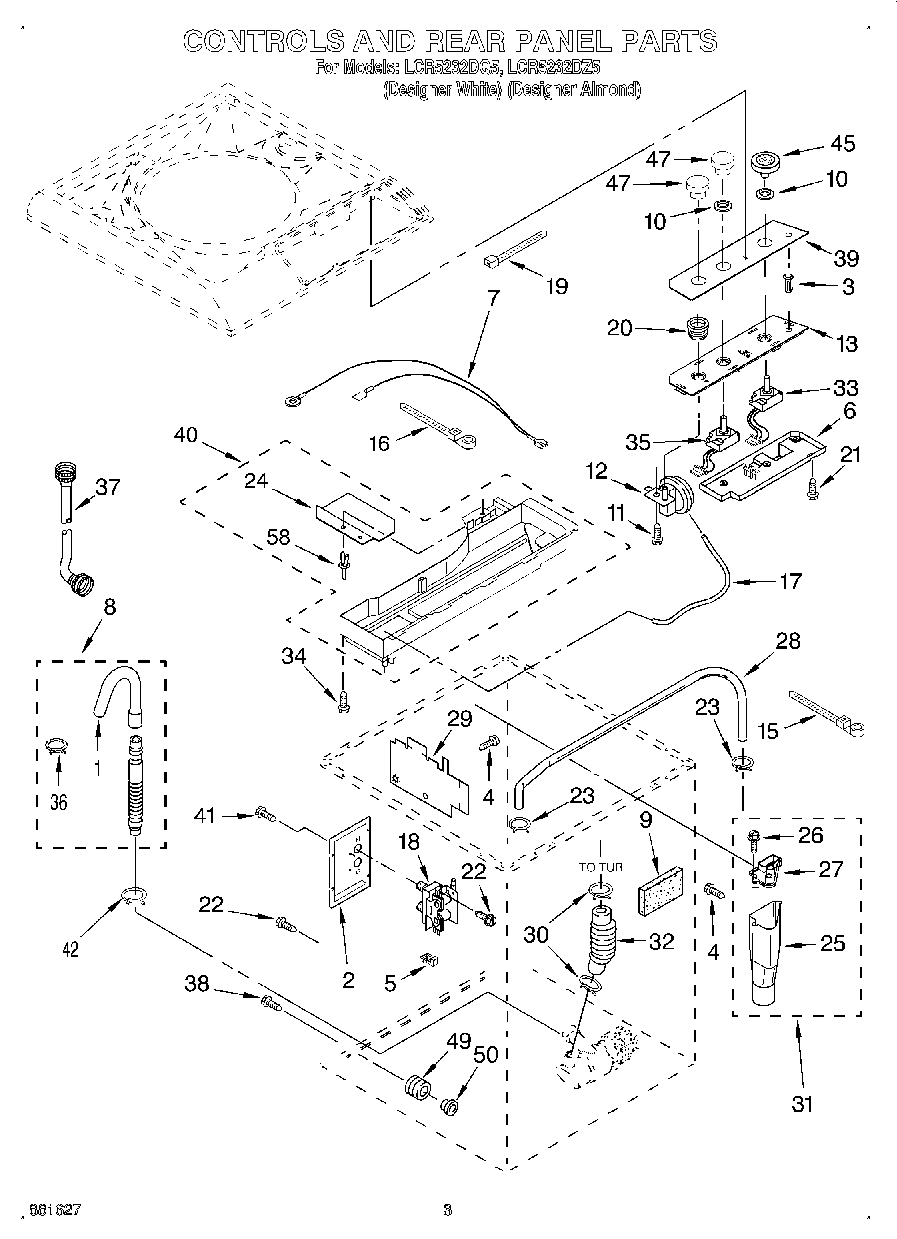

LCR5232DQ5 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP3357027 Whirlpool Nozzle Assembly
2	Bracket-Valve
3	Extension, Start-Pause
4	Screw, Console Cover (4)
5	Clip, Harness
6	Timer/Control Board
7	Jumper-Wire
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
9	Pad-Protector
10	Seal
11	Screw, Switch Mtg.
12	Switch, Water Level
13	Bracket, Control (Must Order No. 3 & No. 39.)
15	Tie, Wire (2) (Push Mount)
16	Clamp, Tie Wrap
17	Hose, Pressure Switch.
18	Valve, Water Mixing
19	WP2205813 Whirlpool Refrigerator Wire Tie
20	Seal, Pressure Switch
21	Screw, Control Board (3)
22	WP3400094 Whirlpool Screw
23	WP596669 Whirlpool Hose Clamp
24	Shield, Harness
25	Funnel-Inlet (Body)
26	WP3400872 Whirlpool Screw
27	Funnel-Inlet (Top)
28	Hose, Valve To Water Inlet
29	Shield & Warning Water Valve
30	WP616099 Whirlpool Clamp
31	Funnel-Inlet Asy.
32	Hose, Pump To Tub
33	Switch, Cycle Selection
34	Screw
35	Switch, Water Temperature
36	WP3357331 Whirlpool Clamp
37	WP89503 Whirlpool Washer Fill Hose
38	Screw, Pump Mtg. (2)
39	Panel, Console (Includes Inlay) (Almond)
39	Panel, Console (Includes Inlay) (White)
40	Top, Shield Assy.
41	Screw
42	WP356138 Whirlpool Hose Clamp
45	Knob, Cycle Selection (White)
45	Knob, Cycle Selection (Almond)
47	3957797 Whirlpool Knob
47	WP3957796 Whirlpool Knob
49	Grommet, Pump
50	Spacer, Pump (3)
58	Rivet
