LCR5232DZ2 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

LCR5232DZ2 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

Written by

in

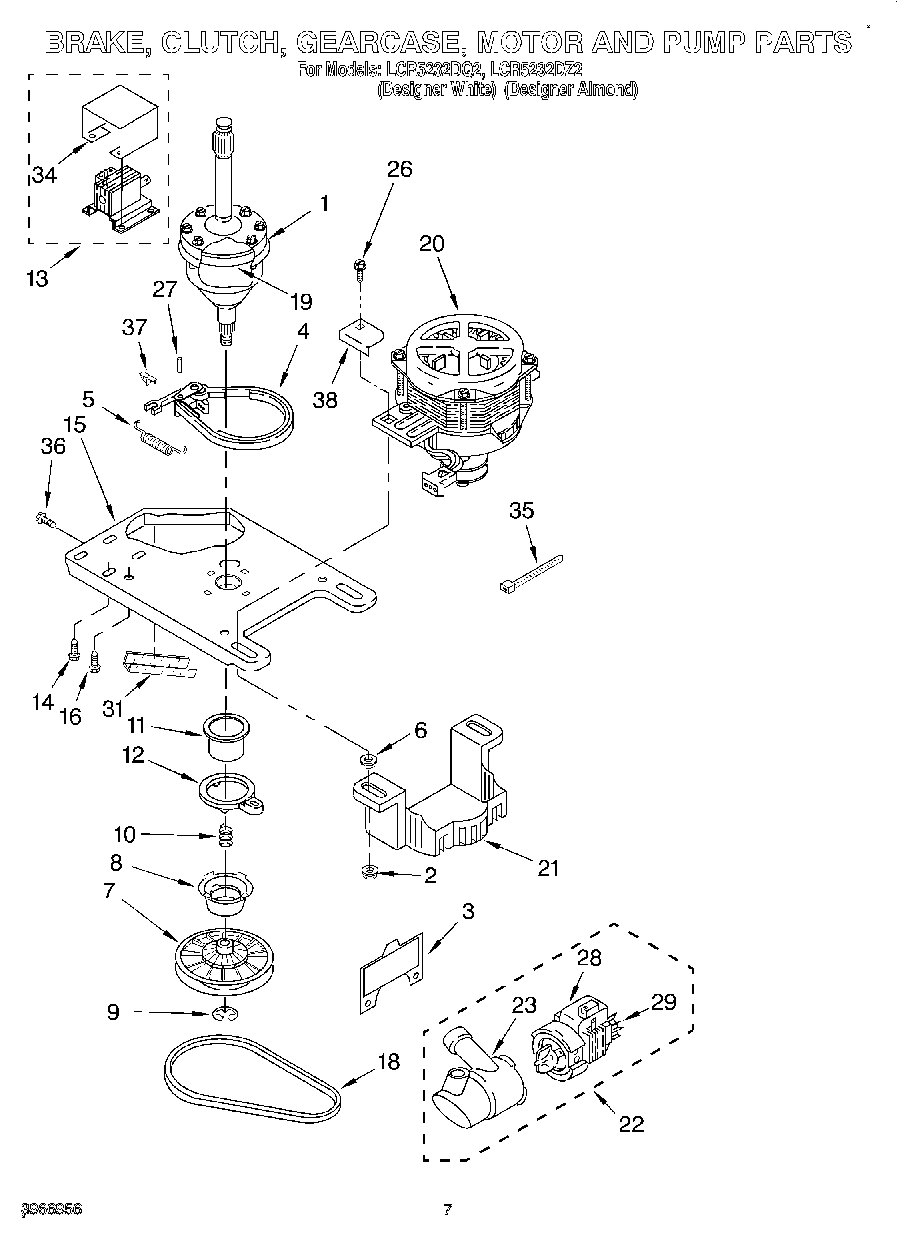

LCR5232DZ2 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

Products

PositionProduct
1Gearcase Assembly
290984 Whirlpool Nut
3Shield & Warning Motor Splash
4Brake Band
5Spring, Brake
6Nut, Washer Locking (2)
7Pulley, Splutch
8Cam, Splutch
9WP354987 Whirlpool C-Clip
10Spring, Splutch
11Slider, Splutch
12Cam Ring, Splutch
13Solenoid
14Screw, Solenoid Mtg. (4)
15Plate, Motor Mount
16Bolt, Motor Plate (4)
18Drive Belt
19Sound Absorber
20Motor, Main Drive (Includes Items 33, 17, & 6)
21Shield, Pulley
22Pump (Complete)
23Housing, Pump
26Bolt, Motor Mounting (2)
27Pin, Brake Band
28Pump
29Blade, Fan
31Protector, Edge
34Shield, Solenoid
35WP2205813 Whirlpool Refrigerator Wire Tie
36WP3400094 Whirlpool Screw
37Lock, Solenoid
38Shield, Motor Connector
