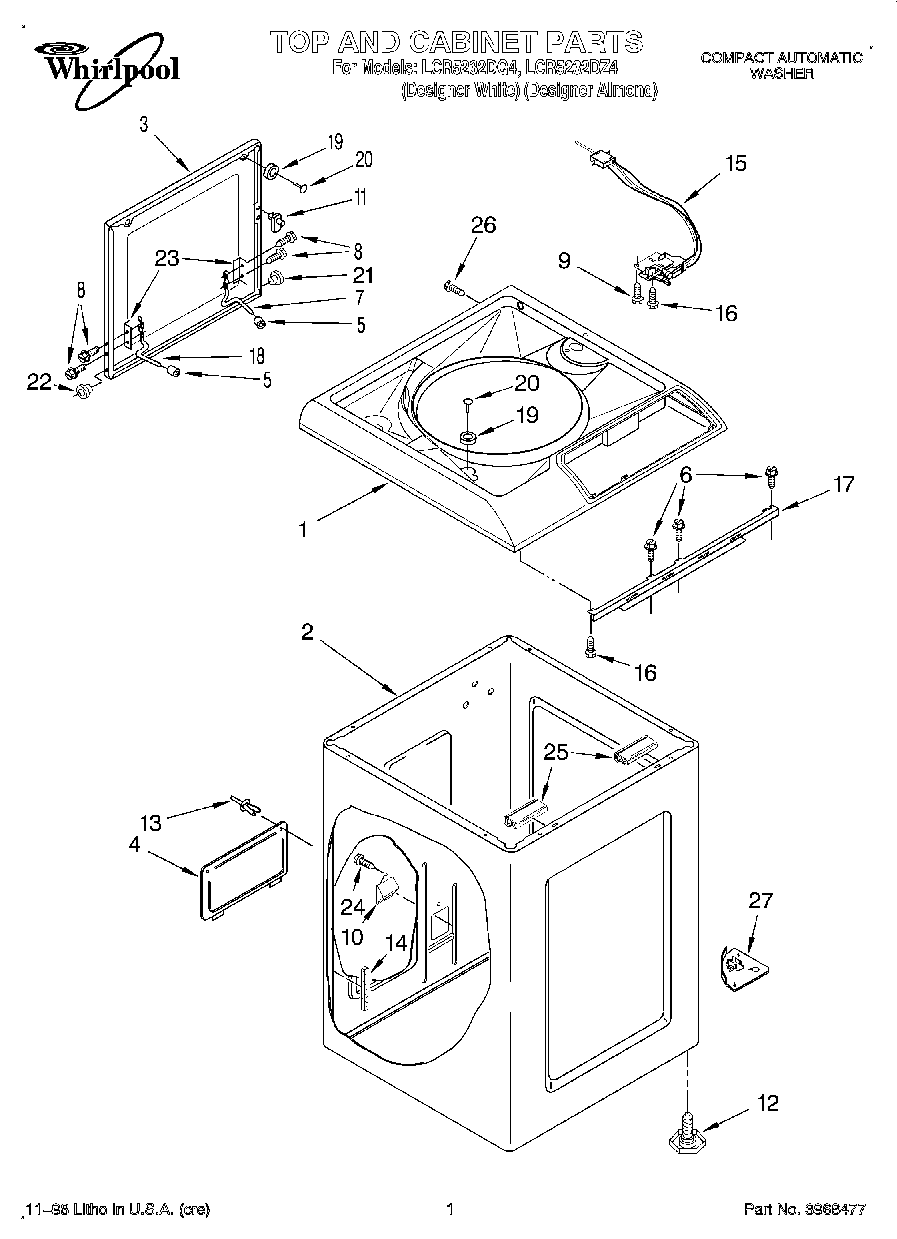

LCR5232DZ4 01 – TOP AND CABINET

Products

Position	Product
1	Top (Almond)
1	Top (White)
2	Cabinet (Almond)
2	Cabinet (White)
3	Lid (Almond)
3	Lid (White)
4	Panel-Cabinet Access
5	Bumper, Lid Hinge
6	WP3400872 Whirlpool Screw
7	Hinge, Lid (R.H.)
8	SCREW
9	Screw
10	Cover, Pump
11	WP358684 Whirlpool Strike Assembly
12	Foot (4)
13	Rivet, Plastic (2)
14	Protector, Edge
15	285935 Whirlpool Lid Switch
16	Screw, Switch Mtg.
17	Bracket-Cabinet To Top
18	Hinge, Lid (L.H.)
19	Bumper
20	Rivet
21	Bearing, Hinge (RH)
22	Bearing, Hinge (LH)
23	WP21097 Whirlpool Pad
24	Screw, Balance Ring (4)
25	Extrude-Top
26	Screw, Console Cover (4)
27	Gusset (Lower (L.H.))
27	Gusset (Lower (R.H.))
