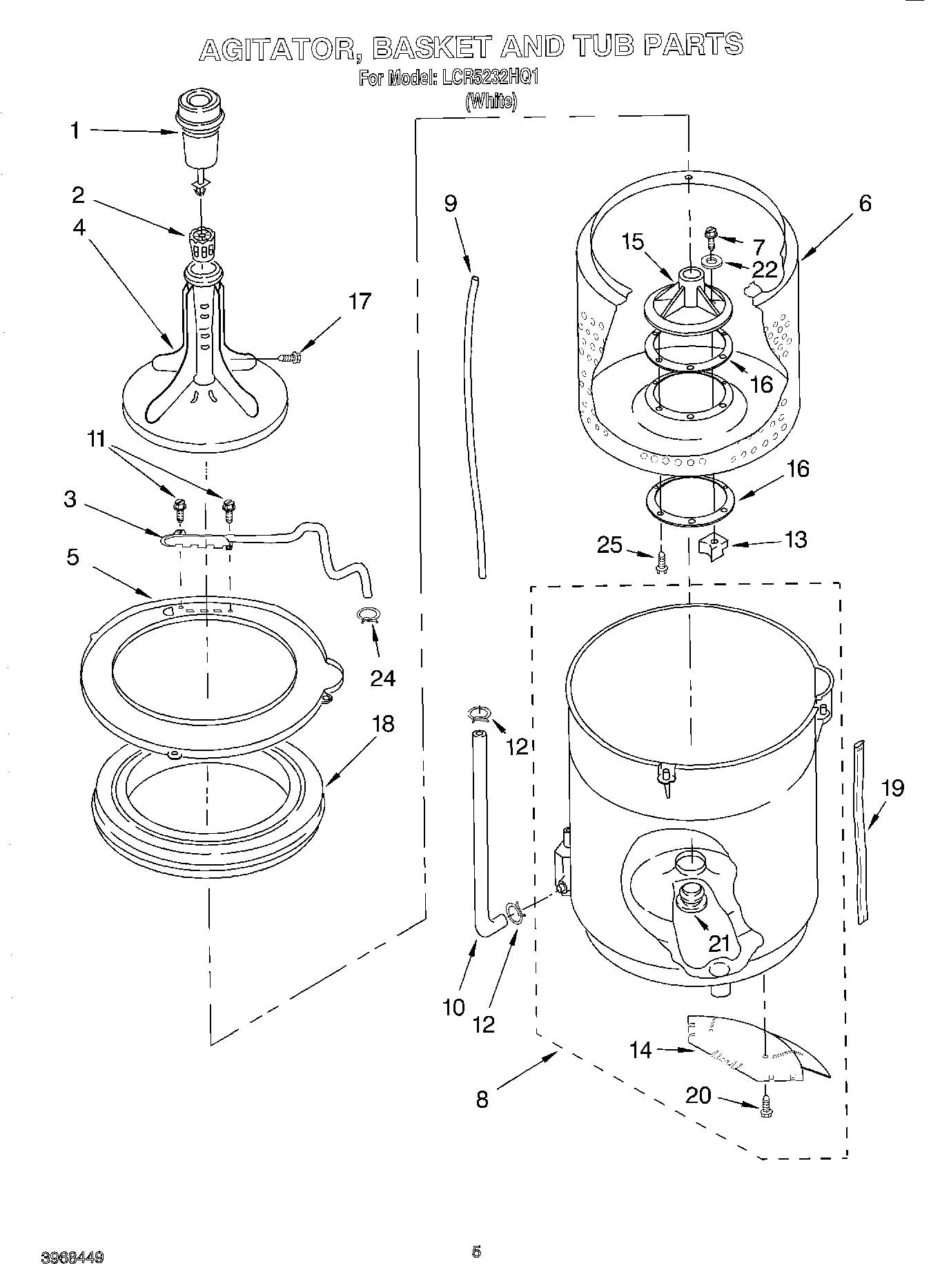

LCR5232HQ1 03 – AGITATOR, BASKET AND TUB

LCR5232HQ1 03 – AGITATOR, BASKET AND TUB

Written by

in

LCR5232HQ1 03 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP326018423 Whirlpool Dispenser Assembly
2Filter
3WP3969019 Whirlpool Vacuum Break
4Agitator
5Tub Ring
6Basket
7Screw
8Tub & Inlet Asy.
9WP353244 Whirlpool Hose
10Hose, Bleach
11WP3400872 Whirlpool Screw
12WP596669 Whirlpool Hose Clamp
13Saddle Block
14Shield, Tub/Motor
15Hub, Drive
16Gasket, Hub (2)
17W11700520 Whirlpool Screw
18Balance Ring
19Hose, Tub Overflow
21WP3968381 Whirlpool Tub Seal
22Washer
24Clamp
25Screw, 1/4 (6)
