LCR5232HQ2 01 – TOP AND CABINET PARTS

LCR5232HQ2 01 – TOP AND CABINET PARTS

Written by

in

LCR5232HQ2 01 – TOP AND CABINET PARTS

Products

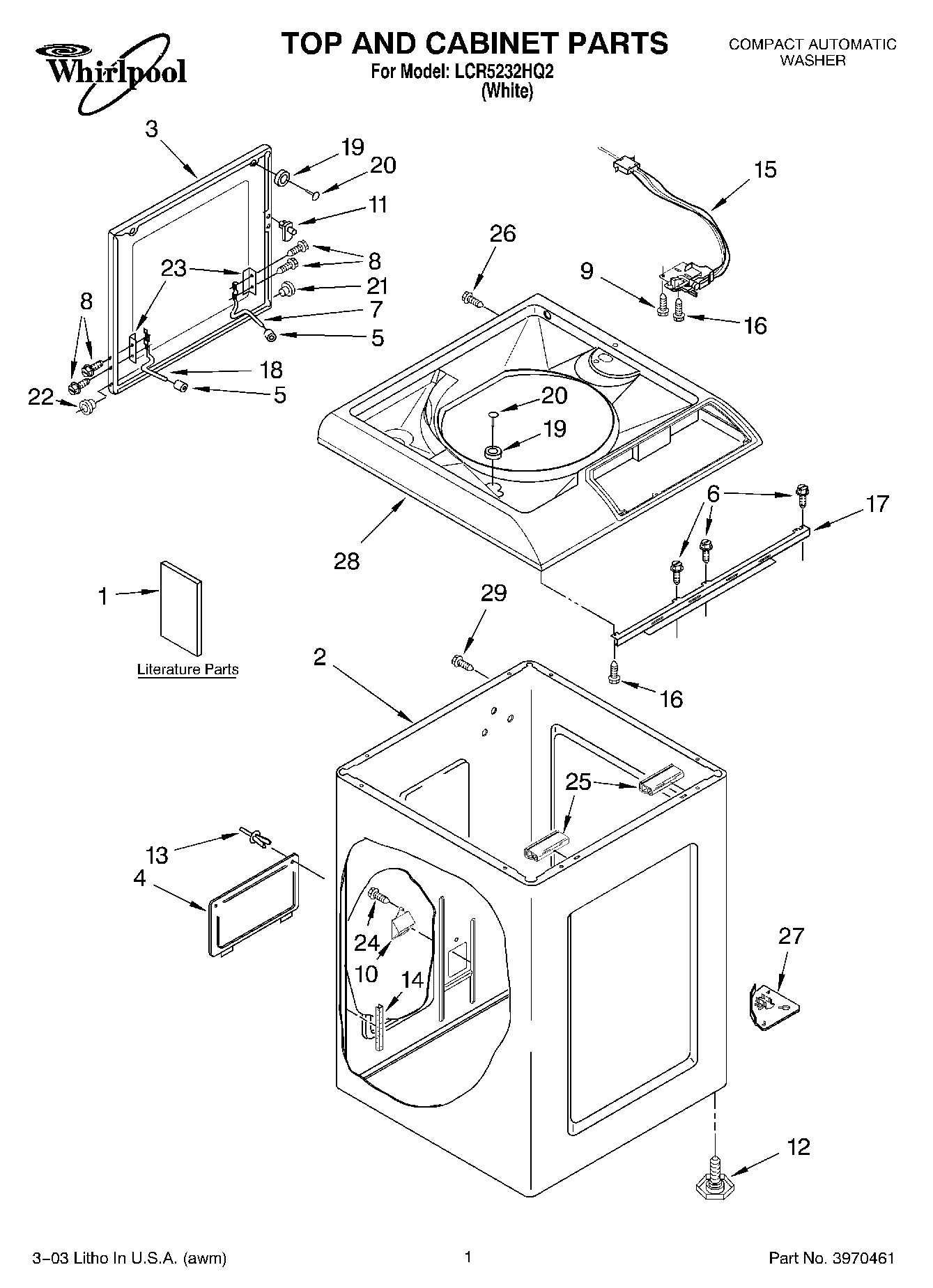

PositionProduct
1Installation Instructions
1Literature Parts (Use & Care Guide)
1Literature Parts (English)
1Literature Parts (Wiring Diagram & Tech Sheet Asm)
1Literature Parts (French)
2Cabinet
3Lid (White)
4Panel-Cabinet Access
5Bumper, Lid Hinge
6WP3400872 Whirlpool Screw
7Hinge, Lid (R.H.)
8SCREW
9Screw
10Cover, Pump
11WP358684 Whirlpool Strike Assembly
12Foot (4)
13Rivet, Plastic (2)
14Protector, Edge
15285935 Whirlpool Lid Switch
16Screw, Switch Mtg.
17Bracket-Cabinet To Top
18Hinge, Lid (L.H.)
19Bumper
20Rivet
21Bearing, Hinge (RH)
22Bearing, Hinge (LH)
23WP21097 Whirlpool Pad
24Screw, Pump Mtg. (2)
25Extrude-Top
26Screw, Console Cover (4)
27Gusset (Lower (L.H.))
27Gusset (Lower (R.H.))
28Top
29WP3351614 Whirlpool Screw
