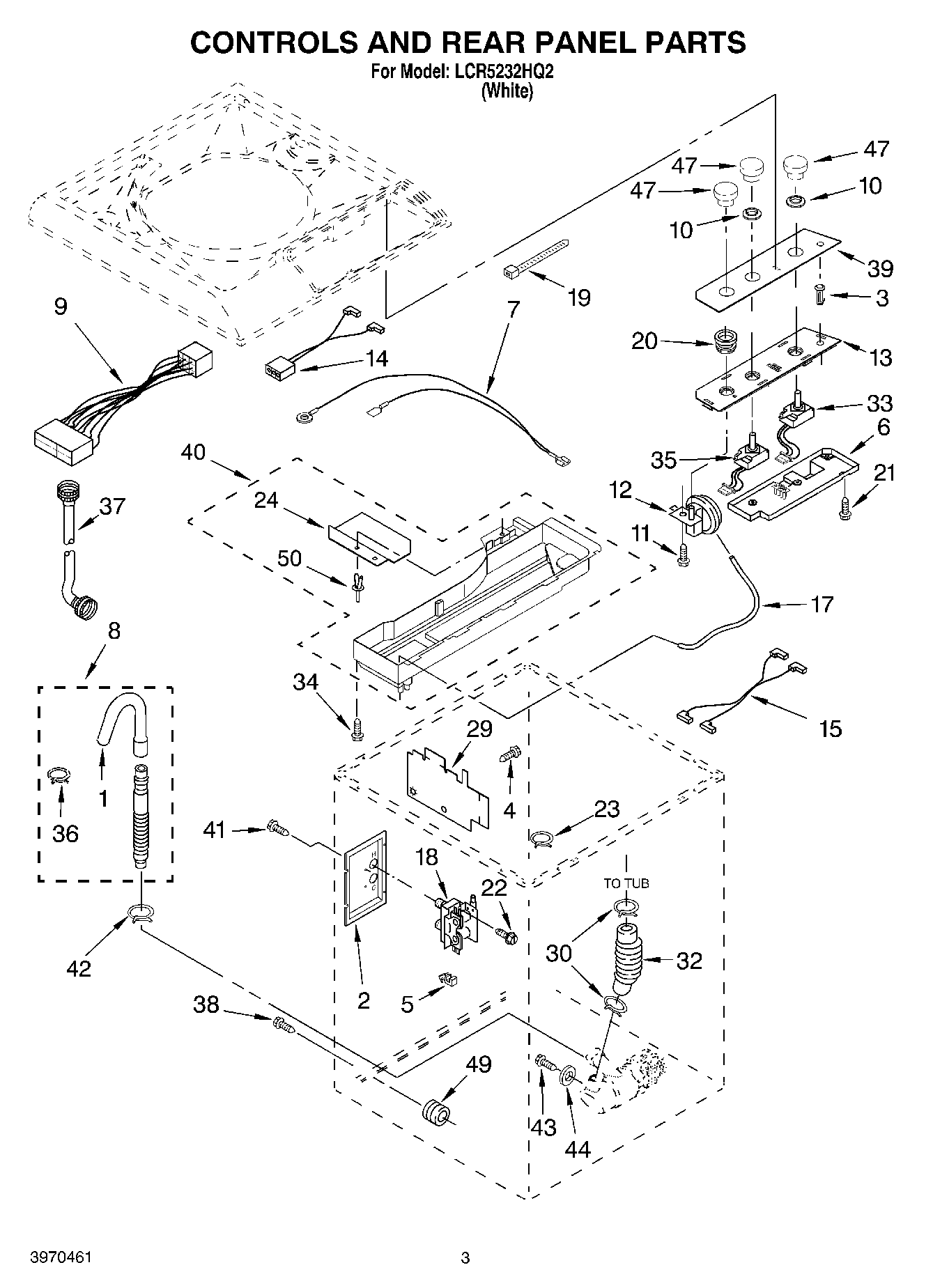

LCR5232HQ2 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP3357027 Whirlpool Nozzle Assembly
2	Bracket-Valve
3	Extension, Start-Pause
4	Screw, Console Cover (4)
5	Clip, Harness
6	Timer/Control Board
7	Jumper-Wire
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
9	Harness, Control Board
10	Seal
11	Screw, Switch Mtg.
12	Switch, Water Level
13	Bracket, Control (Must Order No. 3 & No. 39.)
14	Harness, Lid Switch
15	Harness, Pressure Switch
17	Hose, Pressure Switch
18	Valve, Water Mixing
19	WP2205813 Whirlpool Refrigerator Wire Tie
20	Seal, Pressure Switch
21	Screw, Control Board (3)
22	WP3390631 Whirlpool Screw
23	Clamp
24	Shield, Harness
29	Shield & Warning Water Valve
30	WP616099 Whirlpool Clamp
32	Hose, Pump To Tub
33	Switch, Cycle Selection
34	Screw
35	Switch, Water Temperature
36	WP3357331 Whirlpool Clamp
37	WP89503 Whirlpool Washer Fill Hose
39	Panel, Console
40	Top, Shield Asm
41	Screw
42	WP356138 Whirlpool Hose Clamp
43	Screw, Pump Mtg. (2)
44	W10903204 Whirlpool Refrigerator Washer
47	WP3957796 Whirlpool Knob
49	Grommet, Pump
50	Rivet
