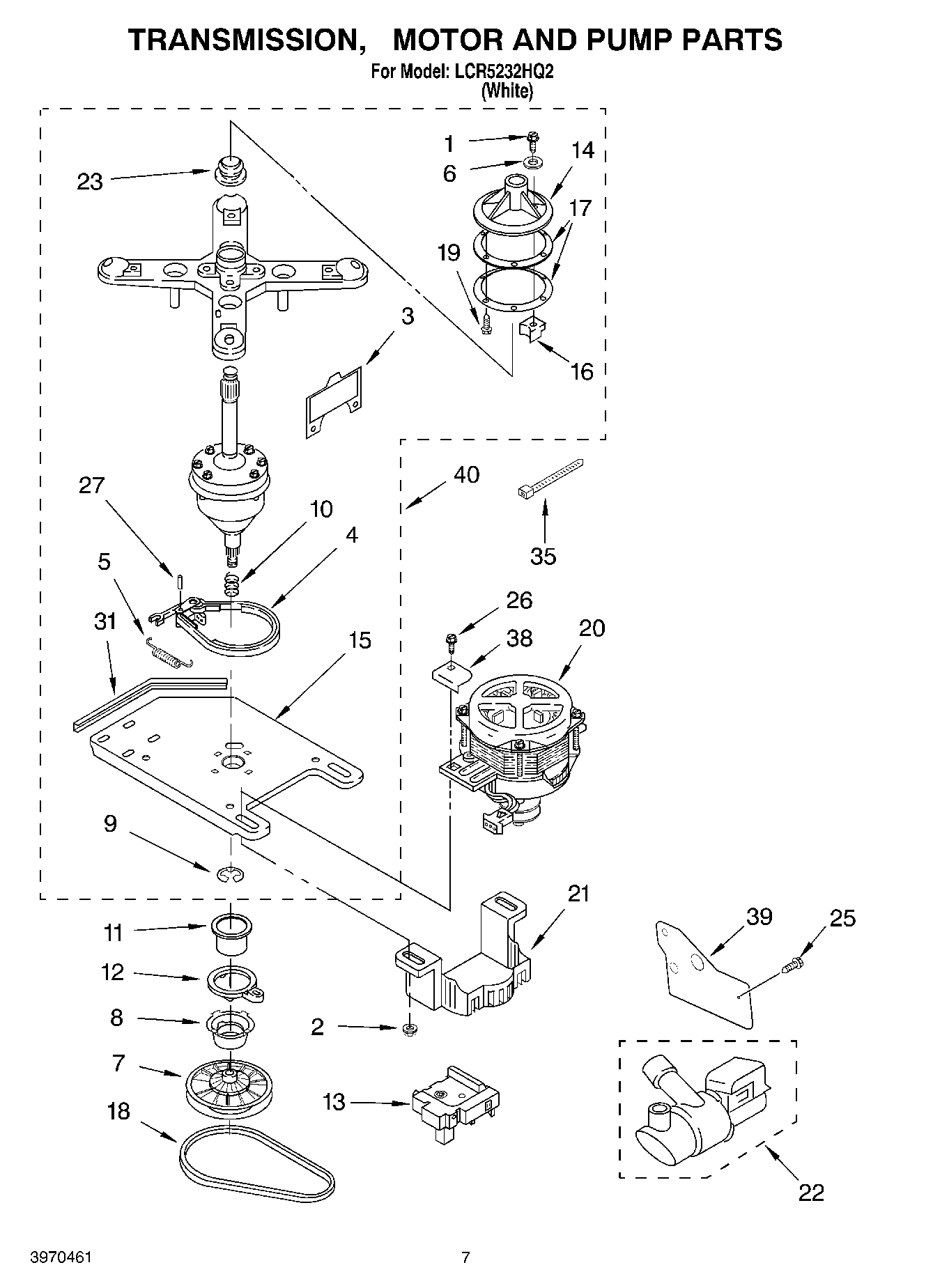

LCR5232HQ2 04 – TRANSMISSION, MOTOR AND PUMP PARTS

Products

PositionProduct
1Screw
290984 Whirlpool Nut
3Shield, Motor Splash
4Brake Band
5Spring, Brake
6Washer
7Pulley, Splutch
8Cam, Splutch
9WP354987 Whirlpool C-Clip
10Spring, Splutch
11Slider, Splutch
12Cam Ring, Splutch
13Brake Actuator
14Hub, Drive
15Motor Plate & Bearing Asm
16Saddle Block
17Gasket, Hub (2)
18Drive Belt
19Screw, 1/4 (6)
20Motor, Main Drive (Includes Items 33, 17, & 6)
21Shield, Pulley
22Pump (Complete)
23WP3968381 Whirlpool Tub Seal
25Screw
26Bolt, Motor Mounting (2)
27Pin, Brake Band
31Protector, Edge
35WP2205813 Whirlpool Refrigerator Wire Tie
38Shield, Motor Connector
39Shield, Pump
40Transmission Kit
