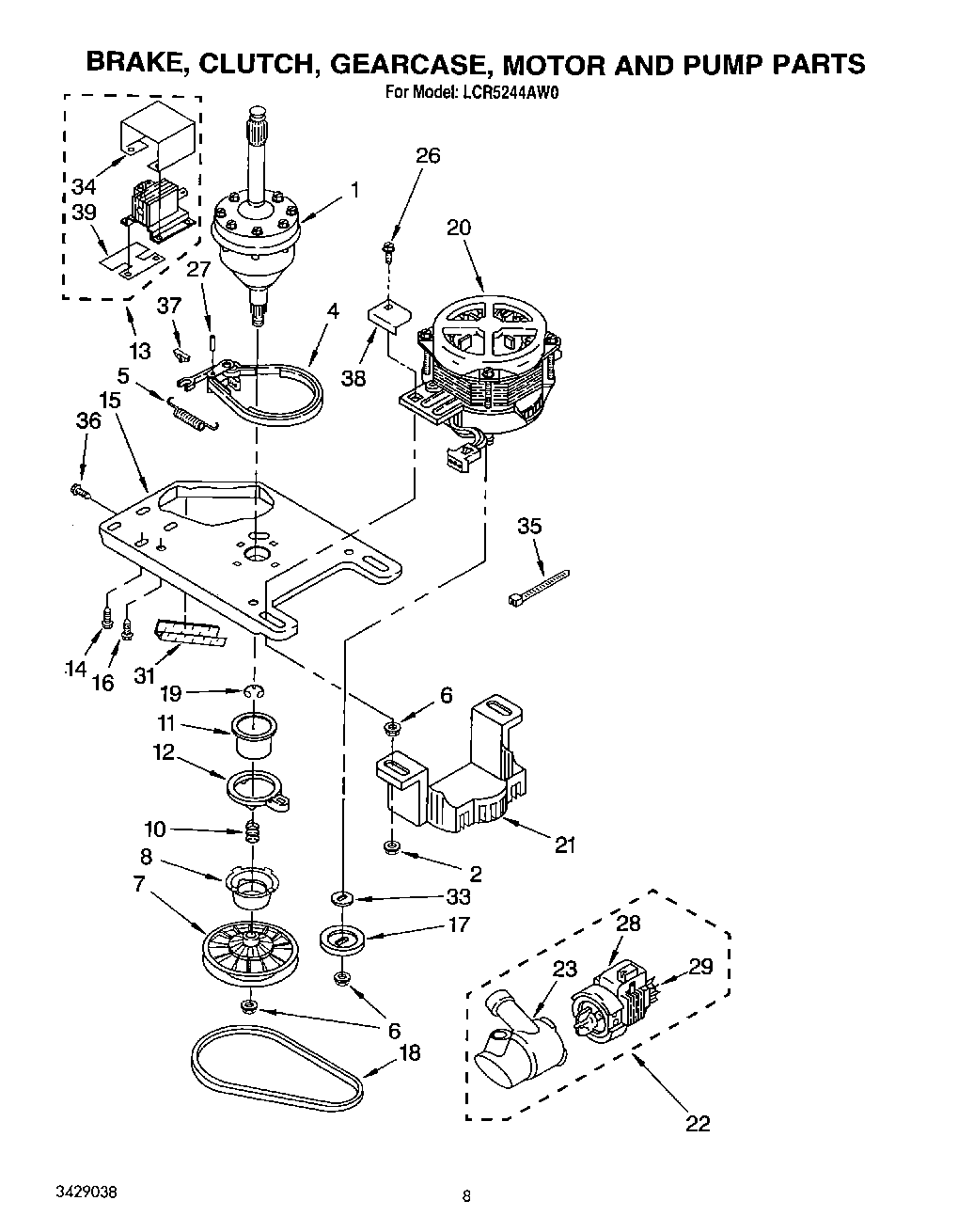

LCR5244AN0 06 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

LCR5244AN0 06 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

Written by

in

LCR5244AN0 06 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

Products

PositionProduct
1Gearcase Assembly
2Hex Nut
4Brake Band
5Spring, Brake
6Nut, Washer Locking
7Pulley, Splutch
8Cam, Splutch
10Spring, Splutch
11Slider, Splutch
12Cam Ring, Splutch
13Solenoid (Includes In-Line Fuse)
14Screw, Solenoid Mtg. (4)
15Plate, Motor Mount
16Bolt, Motor Plate (4)
17Pulley, Motor
18Drive Belt
19Ring, Snap
20Motor, Main Drive (Includes Items 33, 17, & 6)
21Shield, Pulley
22Pump (Complete)
23Housing, Pump
26Bolt, Motor Mounting (2)
27Pin, Brake Band
28Pump
29Blade, Fan
31Protector, Edge
33Washer, Pulley
34Solenoid Shield, Top
35WP2205813 Whirlpool Refrigerator Wire Tie
36WP3351614 Whirlpool Screw
37Lock, Solenoid
38Shield, Motor Connector
39Solenoid Shield, Bottom
