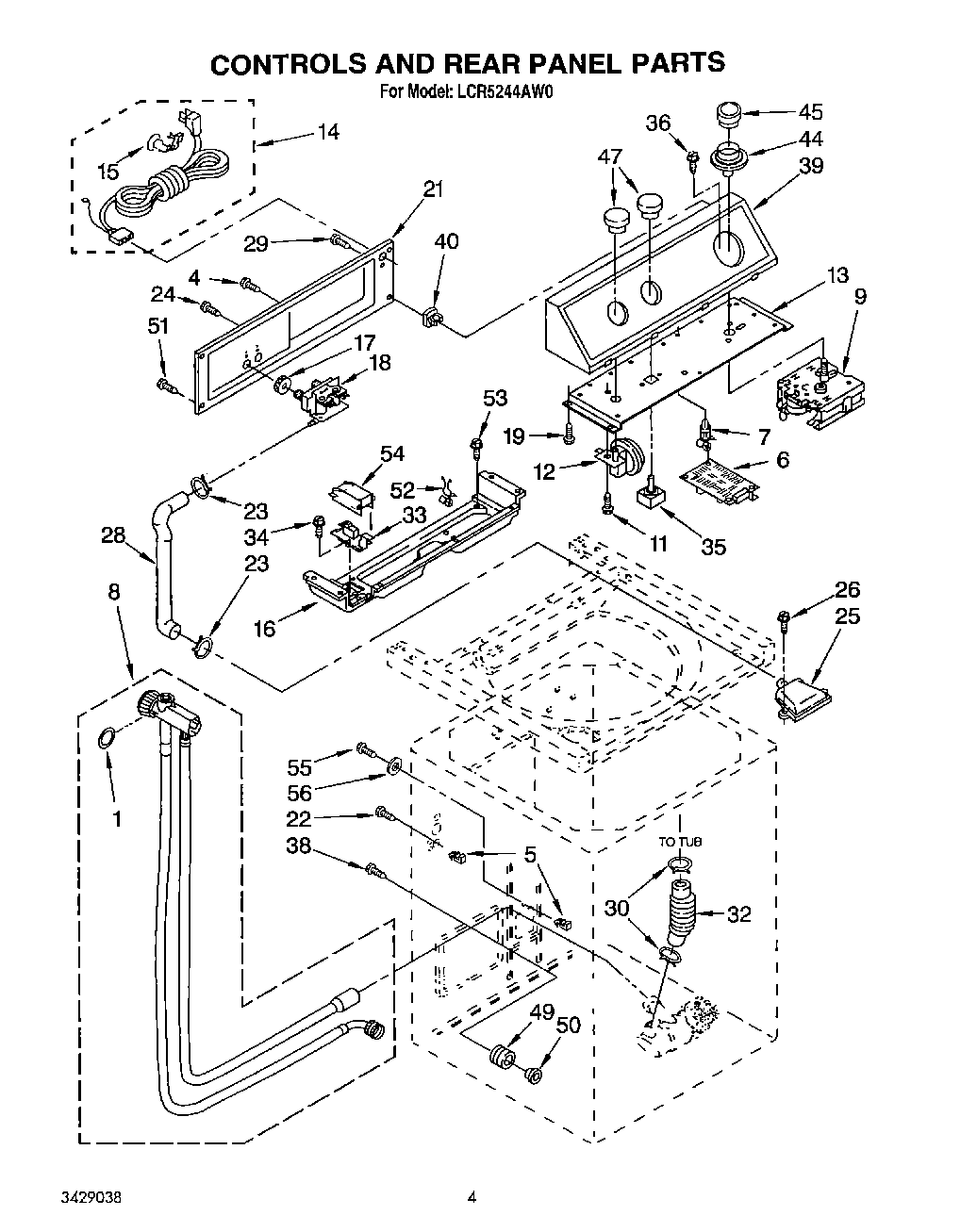

LCR5244AW0 03 – CONTROLS AND REAR PANEL

Products

Position	Product
1	Seal
4	Screw, Console Cover (4)
5	Clip, Harness
6	Board, Control
7	Stand Off, Small (2)
7	Stand Off, Large (2)
8	W10849778 Whirlpool Hose Assembly
9	Timer, Control (60 Hz.)
12	Switch, Water Level
13	Bracket, Control
14	Cord, Power
15	Strain Relief, Power Cord
16	Pan, Console
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	Valve, Water Mixing
21	Cover, Console Rear
23	WP596669 Whirlpool Hose Clamp
25	Water Inlet (Lower)
25	Water Inlet (Upper)
26	Screw, Solenoid Mtg. (4)
28	Hose, Valve To Water Inlet
29	WP3351614 Whirlpool Screw
30	WP616099 Whirlpool Clamp
32	Hose, Pump To Tub
33	Switch, Lid
34	WP3400872 Whirlpool Screw
35	Switch, Water Temperature
36	WP3428970 Whirlpool Refrigerator Screw
38	Screw, Pump Mtg. (2)
39	Panel, Console (Includes Inlay) (Almond)
39	Panel, Console (Includes Inlay) (White)
40	WP689559 Whirlpool Nut
42	WP3357331 Whirlpool Clamp
44	Blade, Timer Knob
45	WPL 3392698
47	Knob, Control
49	Grommet, Pump
50	Spacer, Pump (3)
51	Screw
52	Clip, Coil (2)
53	Screw, Top To Cabinet (2)
54	Shield, Lid Switch
55	Screw, Balance Ring (4)
56	Washer
