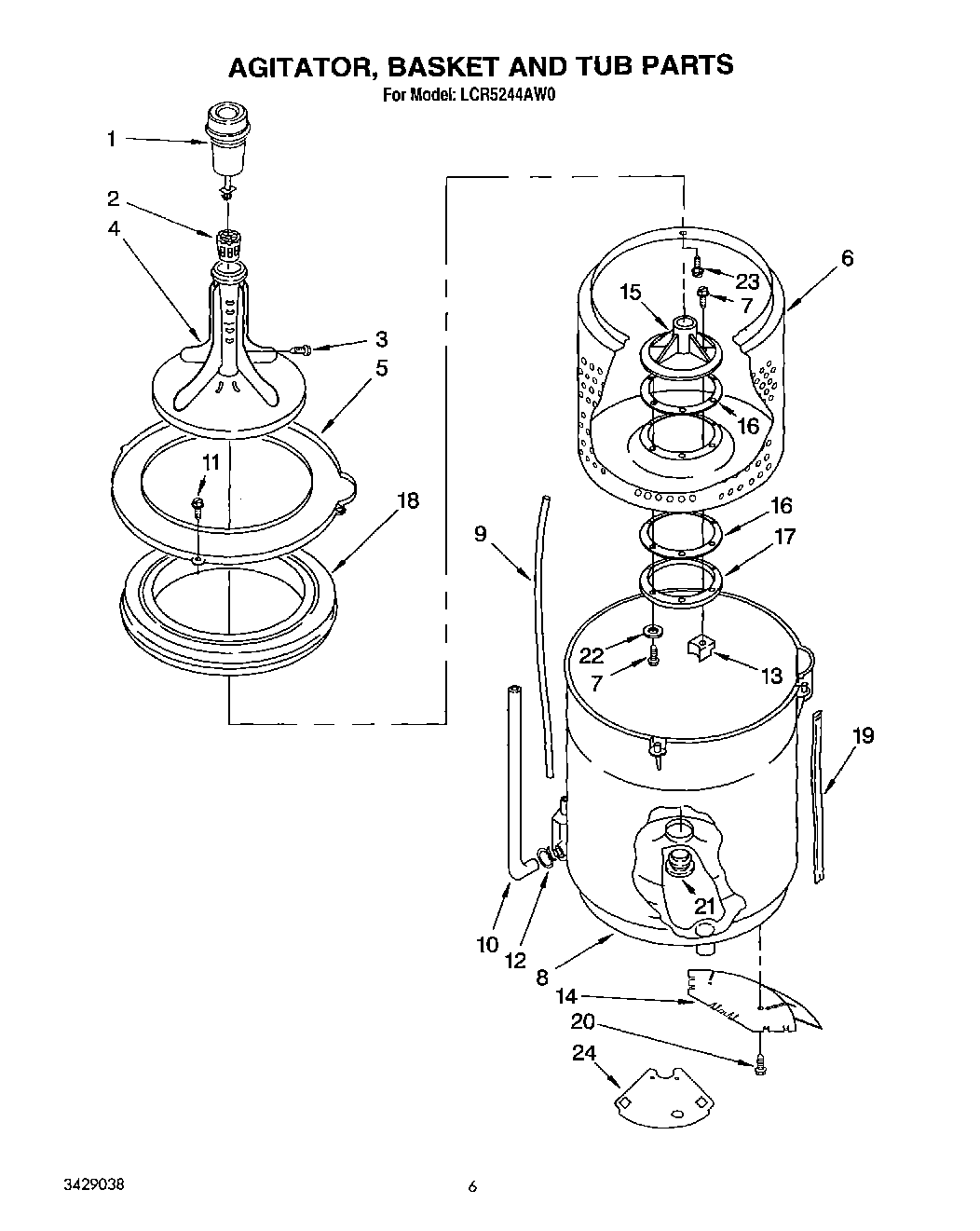

LCR5244AW0 04 – AGITATOR, BASKET AND TUB

LCR5244AW0 04 – AGITATOR, BASKET AND TUB

Written by

in

LCR5244AW0 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP326018423 Whirlpool Dispenser Assembly
2Filter
4Agitator
5Tub Ring
6Basket
7Screw
8Tub
9WP353244 Whirlpool Hose
10Hose, Bleach
12WP596669 Whirlpool Hose Clamp
13Saddle Block
14Shield, Tub/Motor
15Hub, Drive
16Gasket, Hub (2)
17Clamp, Ring
18Balance Ring
19Hose, Tub Overflow
20WP3400872 Whirlpool Screw
21WP3968381 Whirlpool Tub Seal
22Washer
23Screw, Balance Ring (4)
24Shield, Tub/Solenoid
