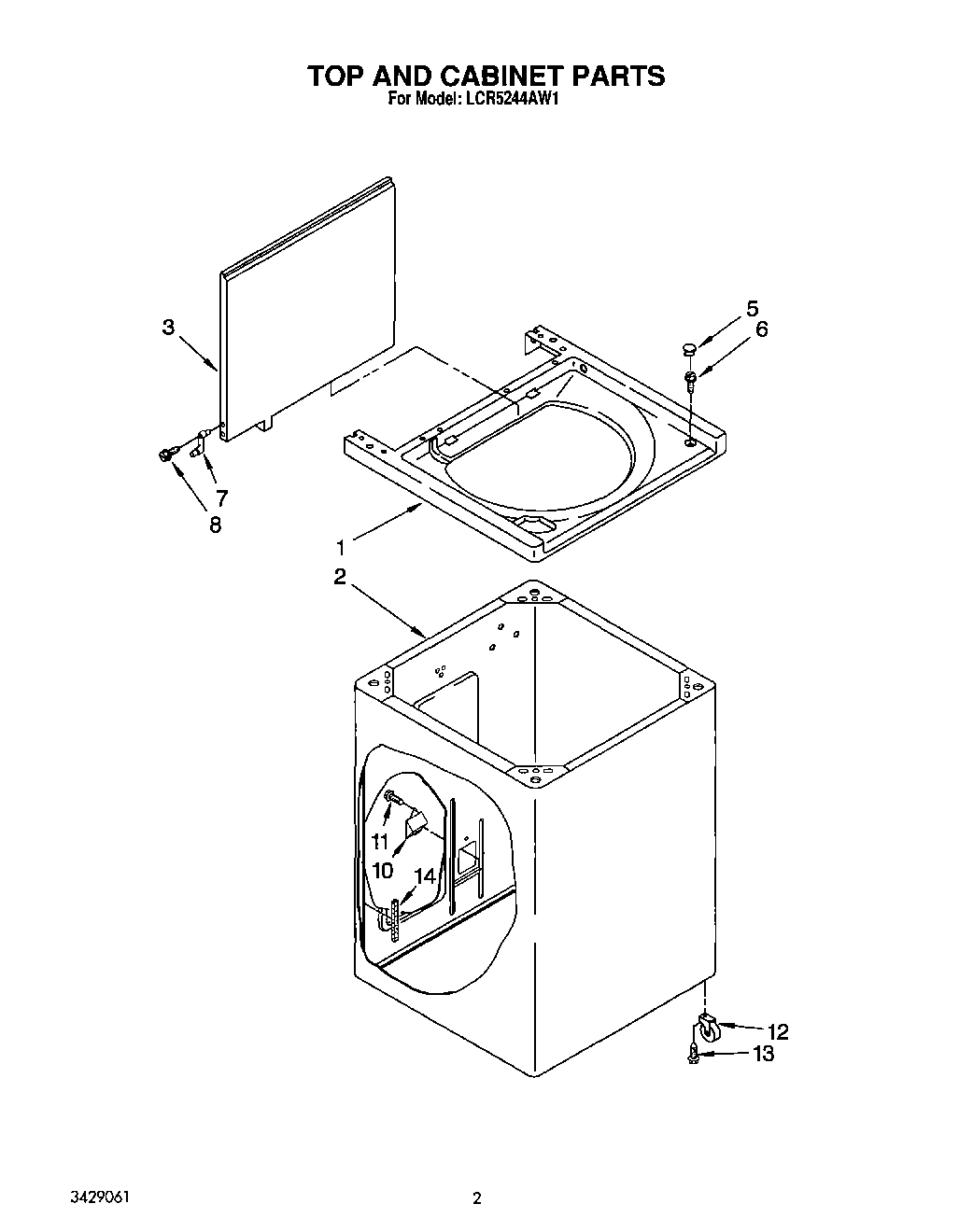

LCR5244AW1 02 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	List, Repair Parts
	Guide, Use and Care
	Sheet, Installation Instructions
	Dryer Stack Stand
	Wall Mount
	285677 Whirlpool Convection Kit
	Label, Wiring Diagram
	Energy Guide
	WP72107 Whirlpool Touchup
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	Leveler (Thinner)
	Almond (Uncut)
	350956 Whirlpool Spray Assembly
	WP384496 Whirlpool Hose Coupling
	350938 Whirlpool Spray Gun
1	Top (Almond)
1	Top (White)
2	Cabinet (White)
2	Cabinet (Almond)
3	Lid (Almond)
3	Lid (White)
5	Bumper, Lid (White)
5	Bumper, Lid (Almond)
6	Screw, Top To Cabinet (2)
7	Hinge, Lid (2)
8	Screw, Lid Hinge Mounting (2)
10	Cover, Pump
11	Screw, Balance Ring (4)
12	Caster (4)
13	Screw
14	Protector, Edge
