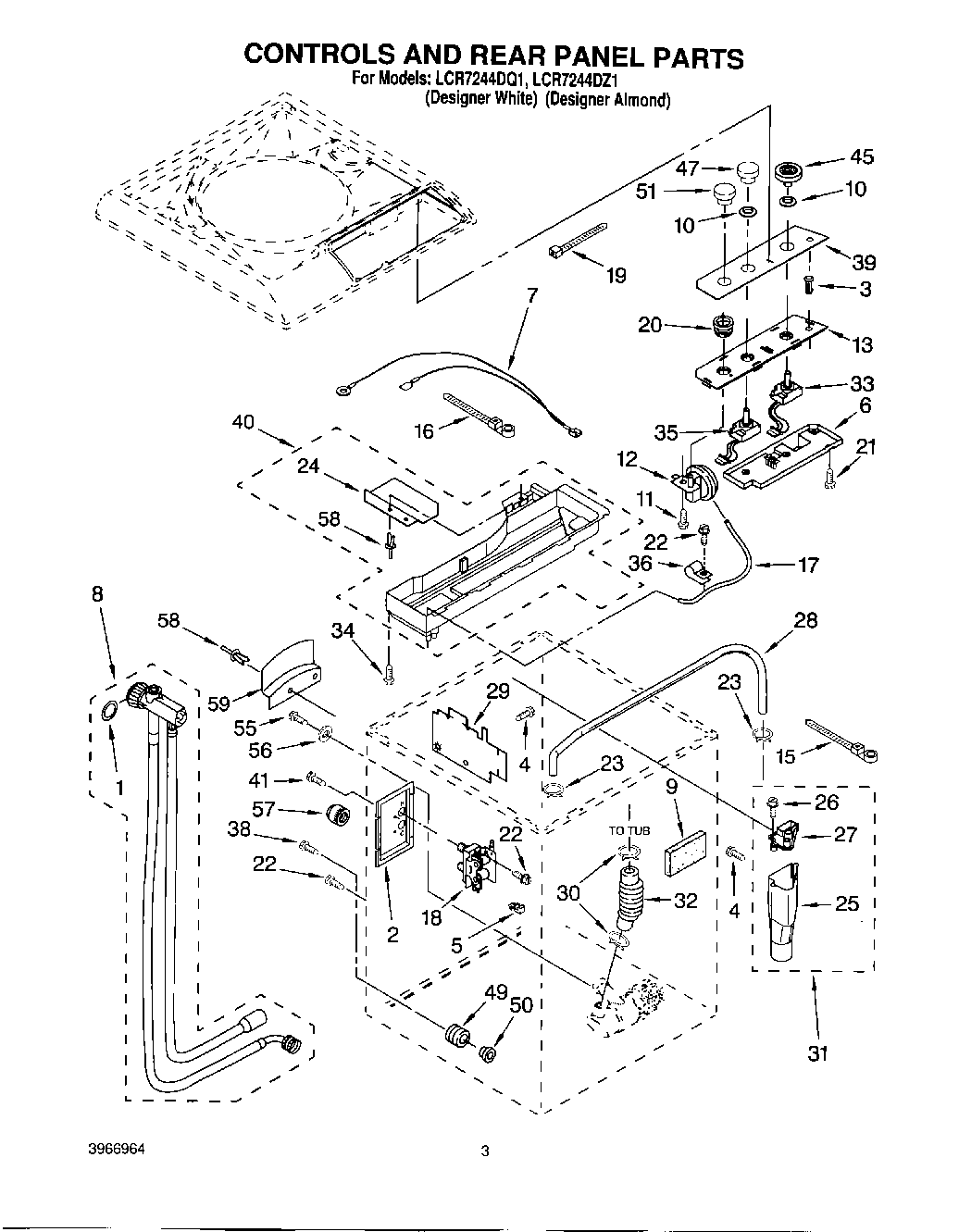

LCR7244DQ1 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	Bracket-Valve
3	Extension, Start-Pause
4	Screw, Console Cover (4)
5	Clip, Harness
6	Timer/Control Board
7	Jumper-Wire
8	W10849778 Whirlpool Hose Assembly
9	Pad-Protector
10	Seal
11	Screw, Switch Mtg.
12	Switch, Water Level
13	Bracket, Control (Must Order No. 3 And No. 39.)
15	Tie, Wire (2) (Push Mount)
16	Clamp, Tie Wrap
17	Hose, Pressure Switch.
18	Valve, Water Mixing
19	WP2205813 Whirlpool Refrigerator Wire Tie
20	Seal, Pressure Switch
21	Screw
22	WP3400094 Whirlpool Screw
23	WP596669 Whirlpool Hose Clamp
24	Shield, Harness
25	Funnel-Inlet (Body)
26	WP3400872 Whirlpool Screw
27	Funnel-Inlet (Top)
28	Hose, Valve To Water Inlet
29	Shield & Warning Water Valve
30	WP616099 Whirlpool Clamp
31	Funnel-Inlet Asy.
32	Hose, Pump To Tub
33	Switch, Cycle Selection
34	Screw
35	Switch, Water Temperature
36	Clamp, Cable (Pressure Switch)
38	Screw, Pump Mtg. (2)
39	Panel, Console (Includes Inlay) (White)
39	Panel, Console (Includes Inlay) (Almond)
40	Top, Shield Assy.
41	Screw
45	Knob, Cycle Selection (Almond)
45	Knob, Cycle Selection (White)
47	WP3957796 Whirlpool Knob
47	3957797 Whirlpool Knob
49	Grommet, Pump
50	Spacer, Pump (3)
51	WPL 3935445
51	WPL 3935446
55	Screw, Balance Ring (4)
56	Washer
57	WP356054 Whirlpool Cap Assembly
58	Rivet
59	Bracket, Hose Storage
