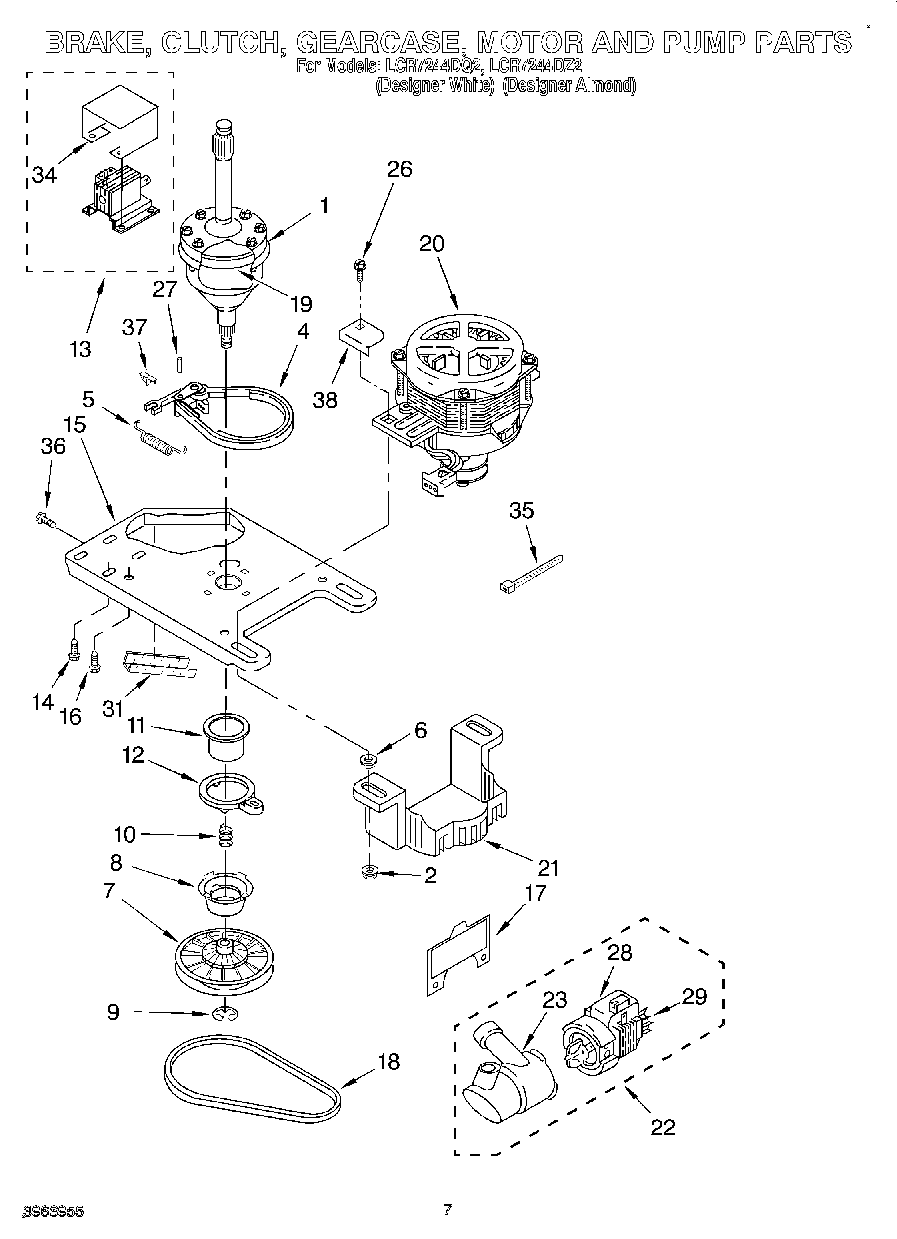

LCR7244DQ2 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMPadmin2025-04-26T12:06:33+00:00LCR7244DQ2 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP
Products
| Position | Product |
|---|
| 1 | Adhesive |
| 1 | Gearcase Assembly |
| 2 | 90984 Whirlpool Nut |
| 4 | Brake Band |
| 5 | Spring, Brake |
| 6 | Nut, Washer Locking (2) |
| 7 | Pulley, Splutch |
| 8 | Cam, Splutch |
| 9 | WP354987 Whirlpool C-Clip |
| 10 | Spring, Splutch |
| 11 | Slider, Splutch |
| 12 | Cam Ring, Splutch |
| 13 | Solenoid |
| 14 | Screw, Solenoid Mtg. (4) |
| 15 | Plate, Motor Mount |
| 16 | Bolt, Motor Plate (4) |
| 17 | Shield & Warning Motor Splash |
| 18 | Drive Belt |
| 19 | Sound Absorber |
| 20 | Motor, Main Drive (Includes Items 33, 17, & 6) |
| 21 | Shield, Pulley |
| 22 | Pump (Complete) |
| 23 | Housing, Pump |
| 26 | Bolt, Motor Mounting (2) |
| 27 | Pin, Brake Band |
| 28 | Pump |
| 29 | Blade, Fan |
| 31 | Protector, Edge |
| 34 | Solenoid Shield, Top |
| 35 | WP2205813 Whirlpool Refrigerator Wire Tie |
| 36 | WP3400094 Whirlpool Screw |
| 37 | Lock, Solenoid |
| 38 | Shield, Motor Connector |
