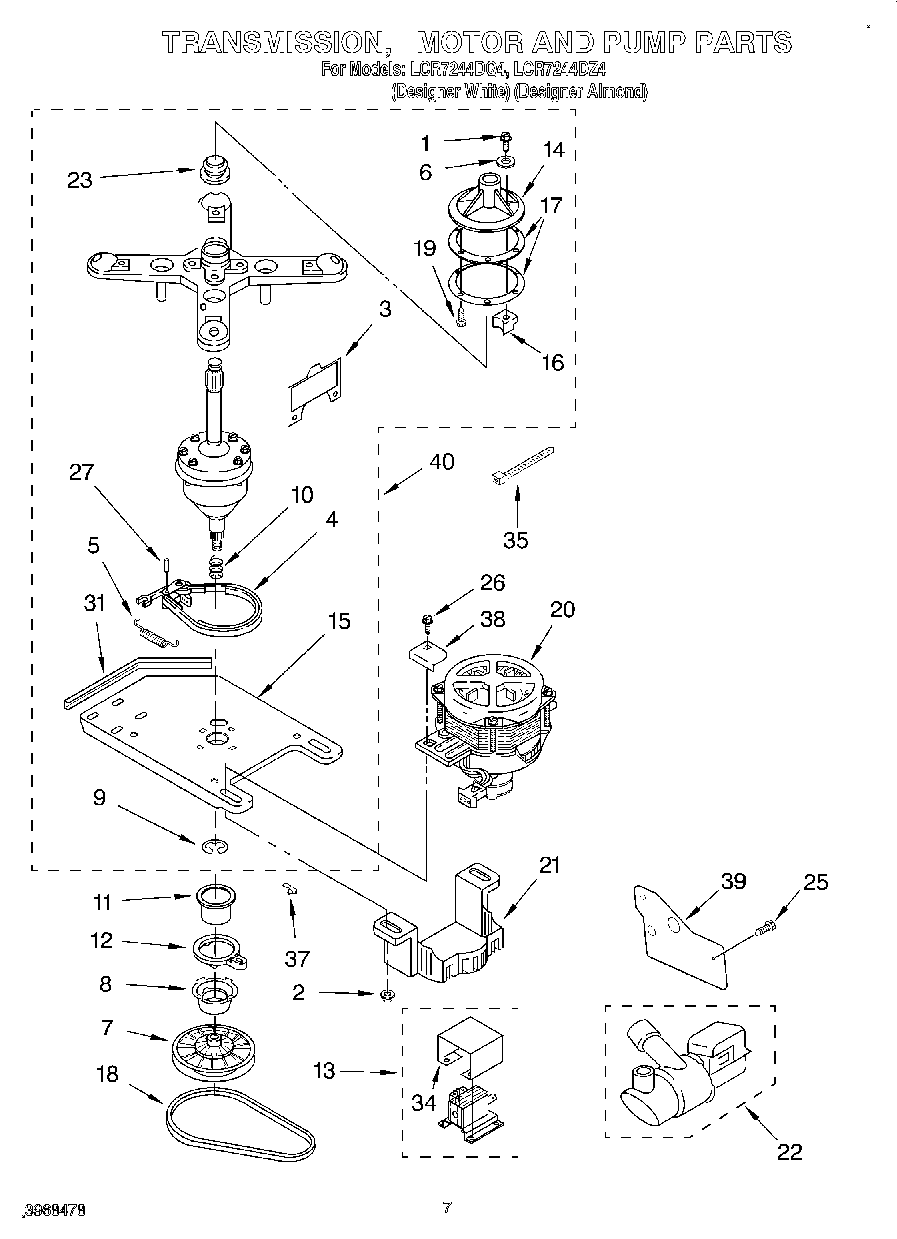

LCR7244DQ4 04 – TRANSMISSION, MOTOR AND PUMP

Products

Position	Product
1	Screw
2	90984 Whirlpool Nut
3	Shield & Warning Motor Splash
4	Brake Band
5	Spring, Brake
6	Washer
7	Pulley, Splutch
8	Cam, Splutch
9	WP354987 Whirlpool C-Clip
10	Spring, Splutch
11	Slider, Splutch
12	Cam Ring, Splutch
13	Solenoid
14	Hub, Drive
15	Plate, Motor Mount
16	Saddle Block
17	Gasket, Hub (2)
18	Drive Belt
19	Screw, 1/4 (6)
20	Motor, Main Drive (Includes Items 33, 17, & 6)
21	Shield, Pulley
22	Pump (Complete)
23	WP3968381 Whirlpool Tub Seal
25	Screw
26	Bolt, Motor Mounting (2)
27	Pin, Brake Band
31	Protector, Edge
34	Shield, Solenoid
35	WP2205813 Whirlpool Refrigerator Wire Tie
37	Lock, Solenoid
38	Shield, Motor Connector
39	Shield, Pump
40	Transmission Kit
