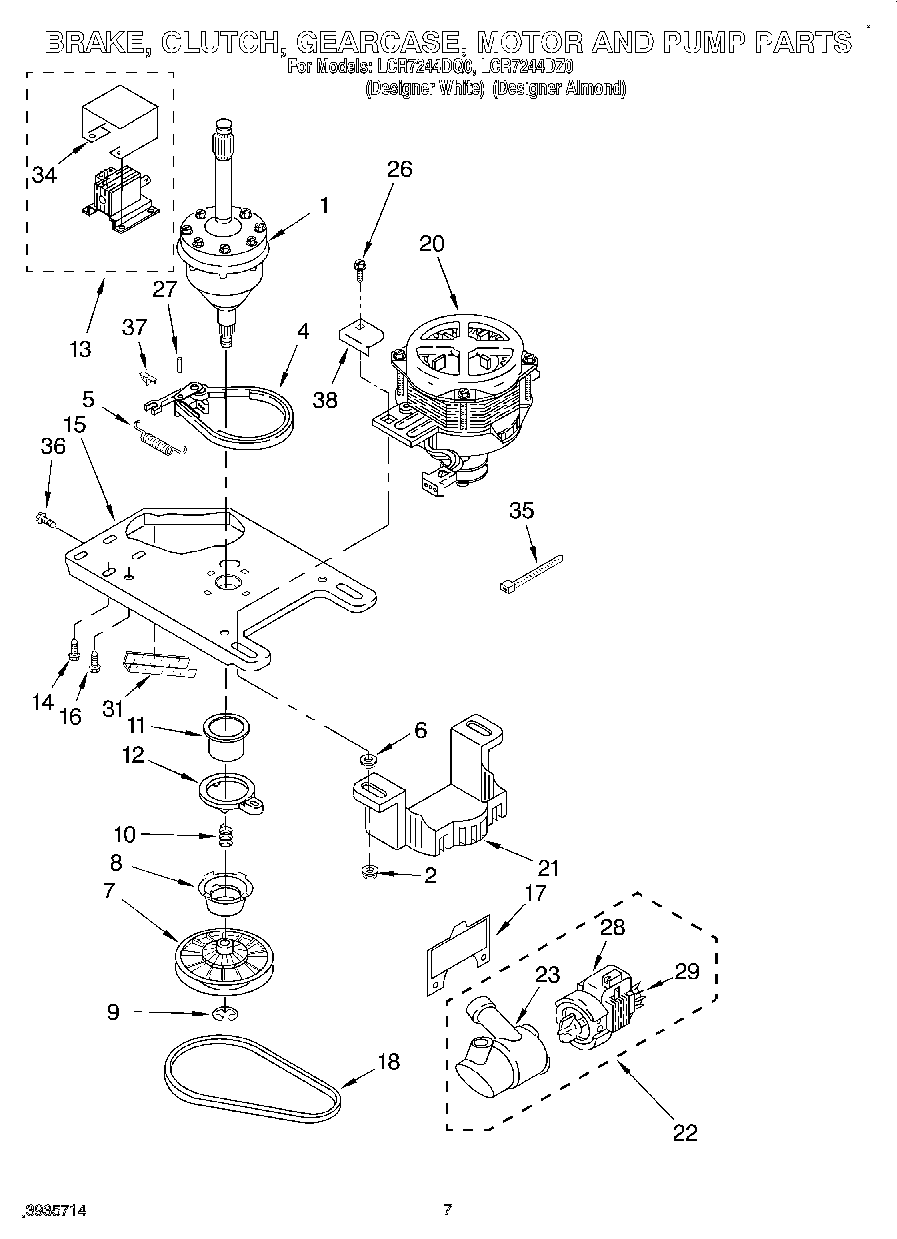

LCR7244DZ0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

LCR7244DZ0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

Written by

in

LCR7244DZ0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

Products

PositionProduct
1Gearcase Assembly
290984 Whirlpool Nut
4Brake Band
5Spring, Brake
6Nut, Washer Locking (2)
7Pulley, Splutch
8Cam, Splutch
9WP354987 Whirlpool C-Clip
10Spring, Splutch
11Slider, Splutch
12Cam Ring, Splutch
13Solenoid
14Screw, Solenoid Mtg. (4)
15Plate, Motor Mount
16Bolt, Motor Plate (4)
17Shield & Warning Motor Splash
18Drive Belt
20Motor, Main Drive (Includes Items 33, 17, & 6)
21Shield, Pulley
22Pump (Complete)
23Housing, Pump
26Bolt, Motor Mounting (2)
27Pin, Brake Band
28Pump
29Blade, Fan
31Protector, Edge
34Solenoid Shield, Top
35WP2205813 Whirlpool Refrigerator Wire Tie
36WP3400094 Whirlpool Screw
37Lock, Solenoid
38Shield, Motor Connector
