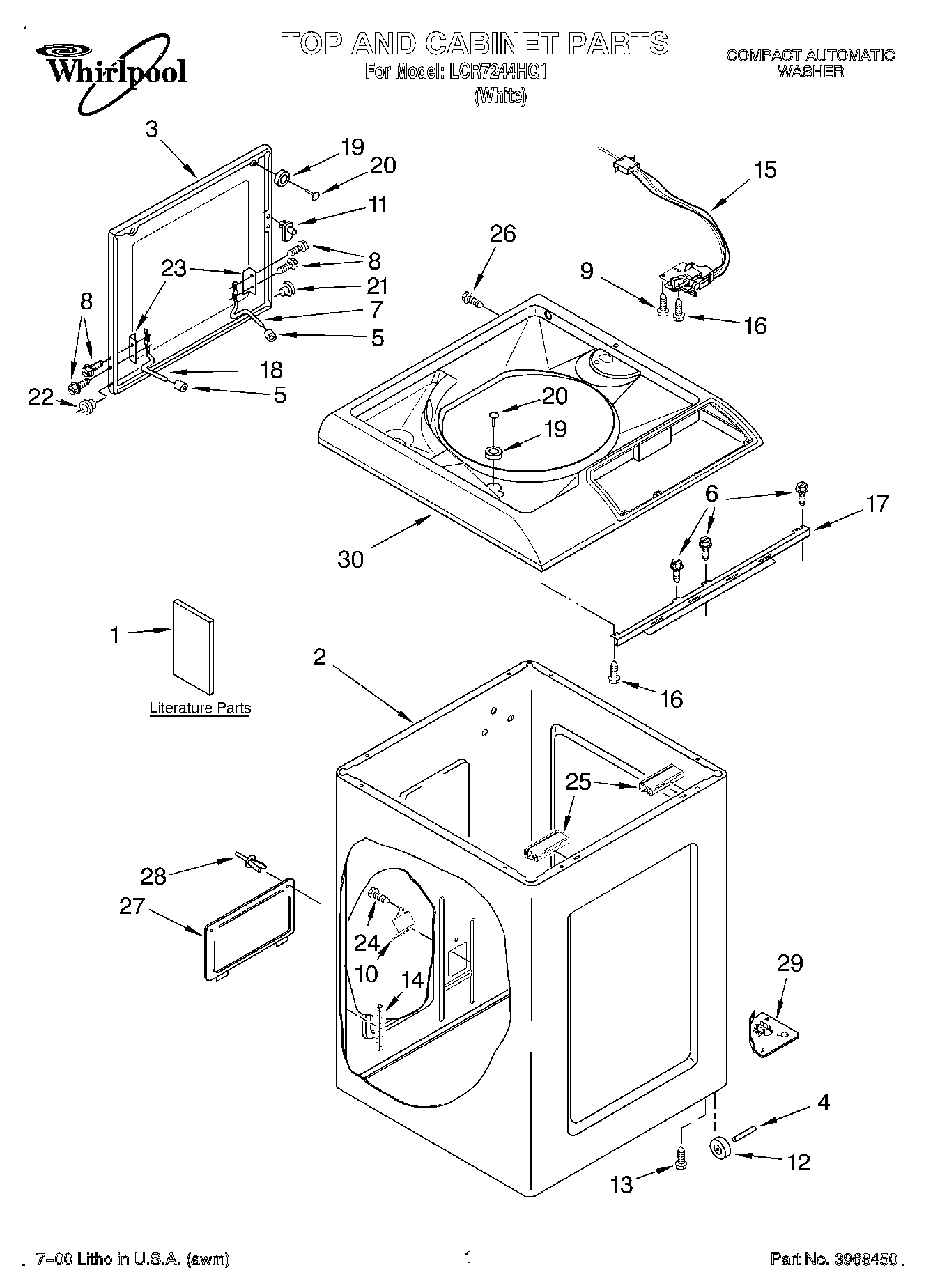

LCR7244HQ1 01 – TOP AND CABINET, LITERATURE

Products

PositionProduct
1Literature Parts (Tech Sheet) (English)
1Literature Parts (Use & Care Guide)
1Installation Instructions
1Literature Parts (Energy Guide)
1Literature Parts (Wiring Diagram)
1Literature Parts (Tech Sheet) (French)
2Cabinet
3Lid (White)
4Pin, Wheel
5Bumper, Lid Hinge
6WP3400872 Whirlpool Screw
7Hinge, Lid (R.H.)
8SCREW
9Screw
10Cover, Pump
11WP358684 Whirlpool Strike Assembly
12Caster (4)
13Screw
14Protector, Edge
15285935 Whirlpool Lid Switch
16Screw, Switch Mtg.
17Bracket-Cabinet To Top
18Hinge, Lid (L.H.)
19Bumper
20Rivet
21Bearing, Hinge (RH)
22Bearing, Hinge (LH)
23WP21097 Whirlpool Pad
24W11700520 Whirlpool Screw
25Extrude-Top
26Screw, Console Cover (4)
27Panel-Cabinet Access
28Rivet, Plastic (2)
29Gusset (Lower (R.H.))
29Gusset (Lower (L.H.))
30Top
