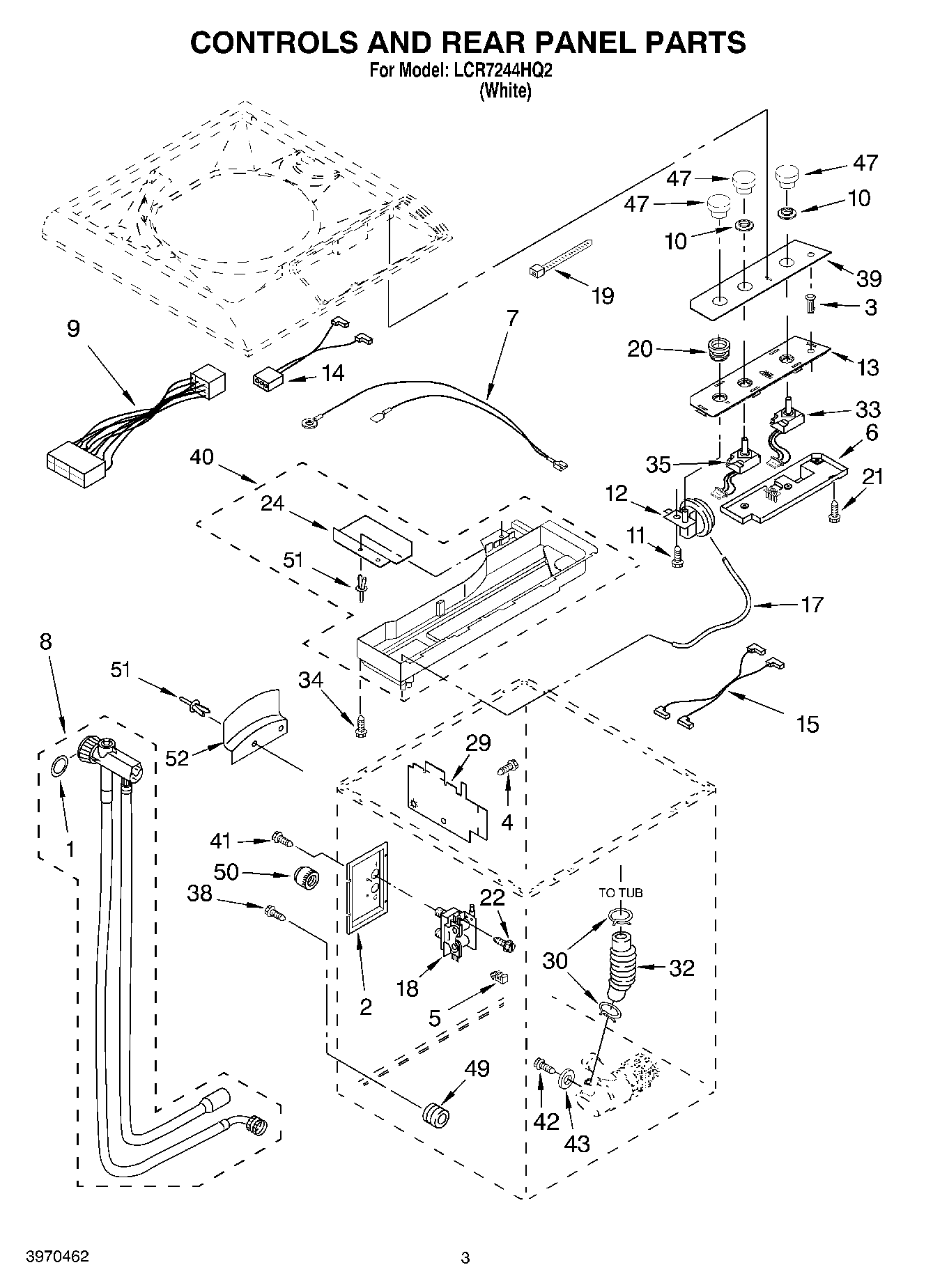

LCR7244HQ2 02 – CONTROLS AND REAR PANEL PARTS

LCR7244HQ2 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

LCR7244HQ2 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2Bracket-Valve
3Extension, Start-Pause
4Screw, Console Cover (4)
5Clip, Harness
6Timer/Control Board
7Jumper-Wire
8W10849778 Whirlpool Hose Assembly
9Harness, Control Board
10Seal
11Screw, Switch Mtg.
12Switch, Water Level
13Bracket, Control (Must Order No. 3 & No. 39.)
14Harness, Lid Switch
15Harness, Pressure Switch
17Hose, Pressure Switch
18Valve, Water Mixing
19WP2205813 Whirlpool Refrigerator Wire Tie
20Seal, Pressure Switch
21Screw, Control Board (3)
22WP3390631 Whirlpool Screw
24Shield, Harness
29Shield & Warning Water Valve
30WP616099 Whirlpool Clamp
32Hose, Pump To Tub
33Switch, Cycle Selection
34Screw
35Switch, Water Temperature
39Panel, Console
40Top, Shield Asm
41Screw
42Screw, Pump Mtg. (2)
43W10903204 Whirlpool Refrigerator Washer
47WP3957796 Whirlpool Knob
49Grommet, Pump
50WP356054 Whirlpool Cap Assembly
51Rivet
52Bracket, Hose Storage
