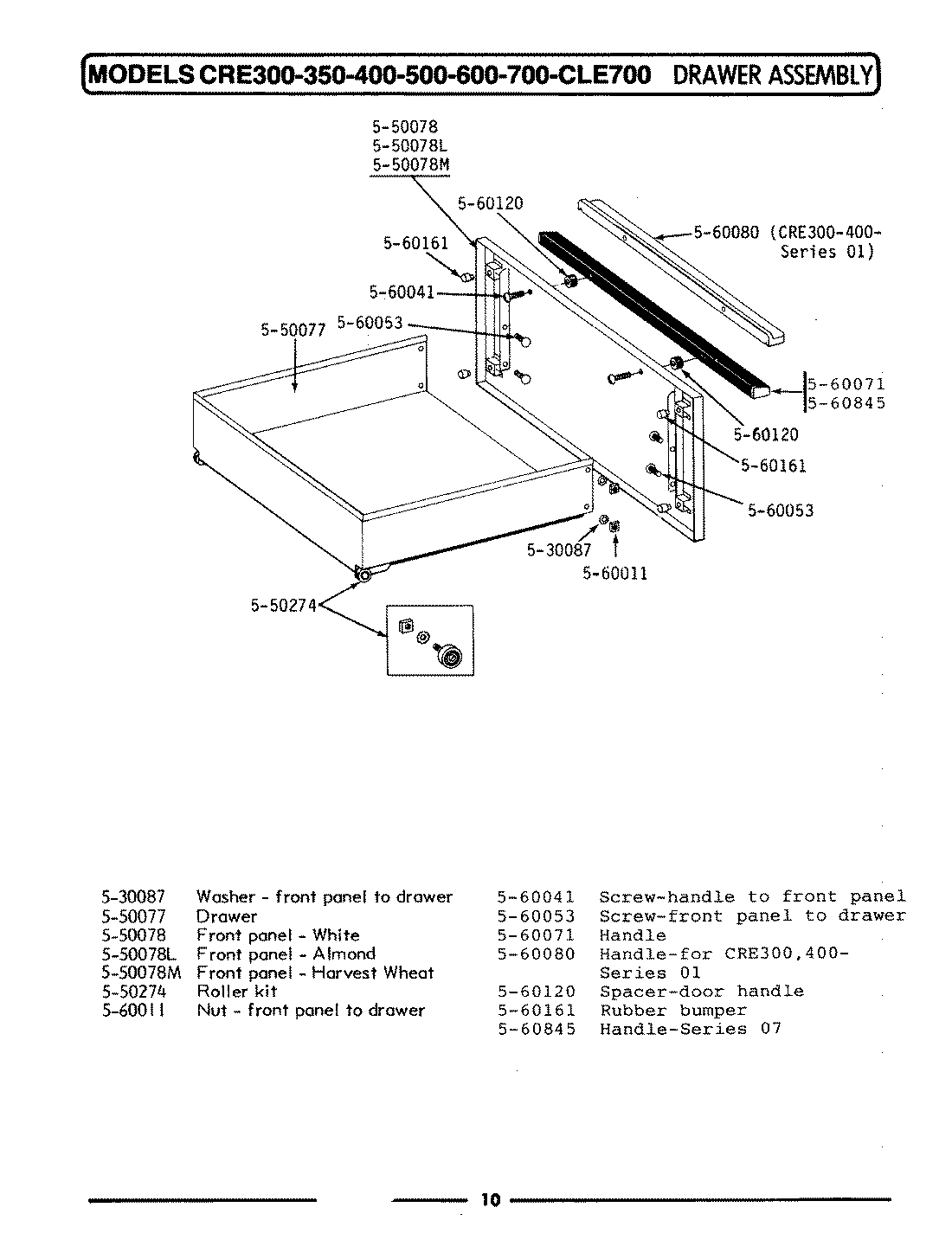

LCRE400 03 – DRAWER ASSEMBLY
Products
| Position | Product |
|---|---|
| 1 | MAY 530087 |
| 2 | MAY 550077 |
| 3 | MAY 550078 |
| 4 | MAY 550078L |
| 5 | MAY 550078M |
| 6 | MAY 550274 |
| 7 | MAY 560011 |
| 8 | MAY 560041 |
| 9 | MAY 560053 |
| 10 | MAY 560071 |
| 11 | MAY 560080 |
| 12 | MAY 560120 |
| 13 | MAY 560161 |
| 14 | MAY 560845 |
