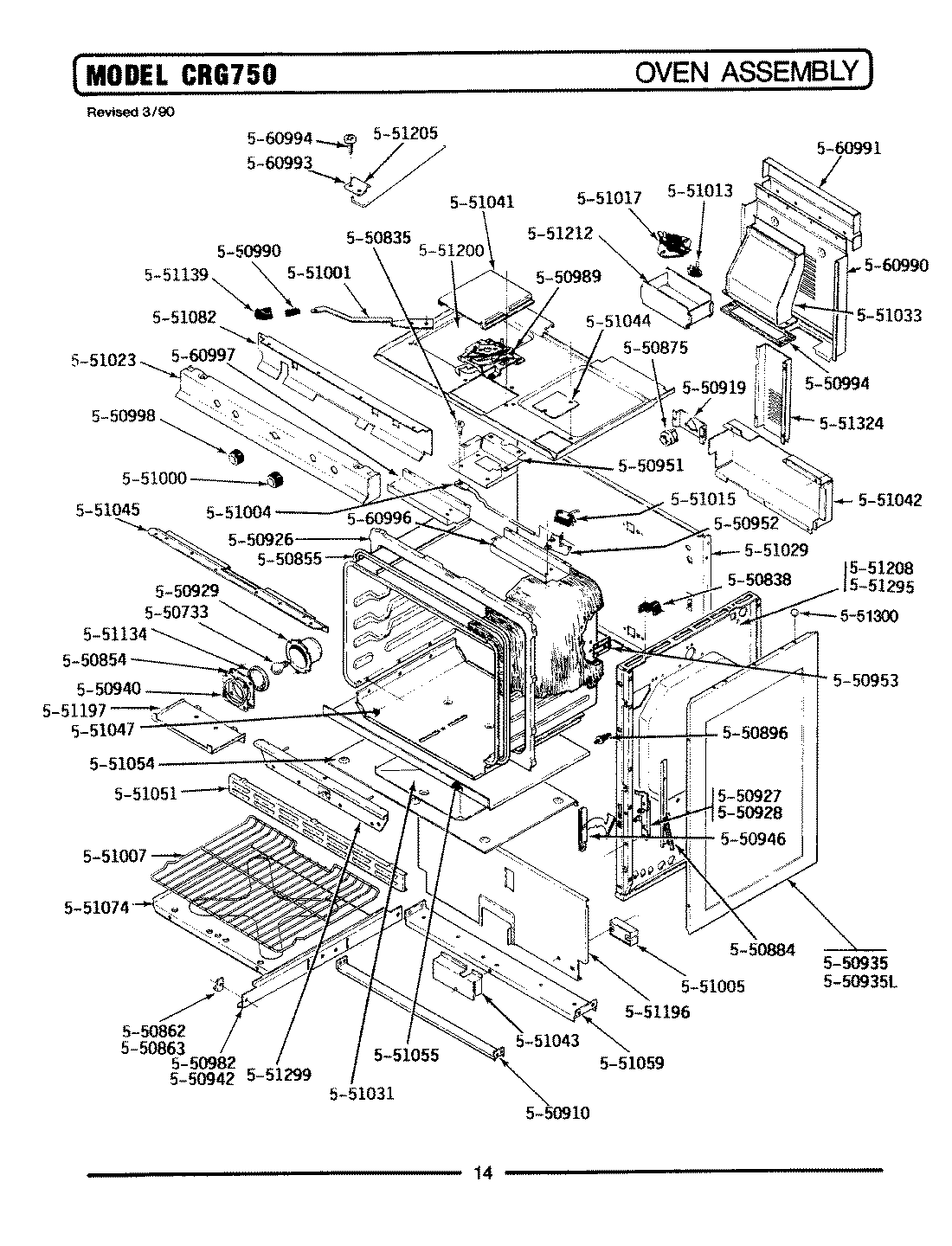

LCRG750 04 – OVEN ASSEMBLY
Written by
in
LCRG750 04 – OVEN ASSEMBLY
Products
Position
Product
1
MAY 550711
2
MAY 550713
3
MAY 550733
4
MAY 550739
5
MAY 550835
6
MAY 550838
7
MAY 550854
8
MAY 550855
9
MAY 550862
10
MAY 550863
11
MAY 550875
12
MAY 550884
13
MAY 550896
14
MAY 550910
15
MAY 550919
16
MAY 550926
17
MAY Y550927
18
MAY 550928
19
MAY 550929
21
MAY 550935L
22
MAY 550940
23
MAY 550942
24
MAY 550946
25
MAY 550951
26
MAY 550952
27
MAY 550953
28
MAY 550982
29
MAY 550989
30
MAY 550990
31
MAY 550991
32
MAY 550994
33
MAY 550998
34
MAY 551000
35
MAY 551001
36
MAY 551004
37
MAY 551005
38
MAY 551007
39
MAY 551009
40
MAY 551010
41
MAY 551013
42
MAY 551015
43
MAY 551017
44
MAY 551018
45
MAY 551023
46
MAY 551029
47
MAY 551031
48
MAY 551033
49
MAY 551035
50
MAY 551036
51
MAY 551037
52
MAY 551038
53
MAY 551041
54
MAY 551042
55
MAY 551043
56
MAY 551044
57
MAY 551045
58
MAY 551047
59
MAY 551051
60
MAY 551054
61
MAY 551055
62
MAY 551059
63
MAY 551074
64
MAY 551082
65
MAY 551134
66
MAY 551139
67
MAY 551194
68
MAY 551196
69
MAY 551197
70
MAY 551200
71
MAY 551205
72
MAY 551208
73
MAY 551212
74
MAY 551295
75
MAY 551299
76
MAY 551300
77
MAY 551324
78
MAY 560901
79
MAY 560902
80
MAY 560990
81
MAY 560991
82
MAY 560993
83
MAY 560994
84
MAY 560996
85
MAY 560997
←
