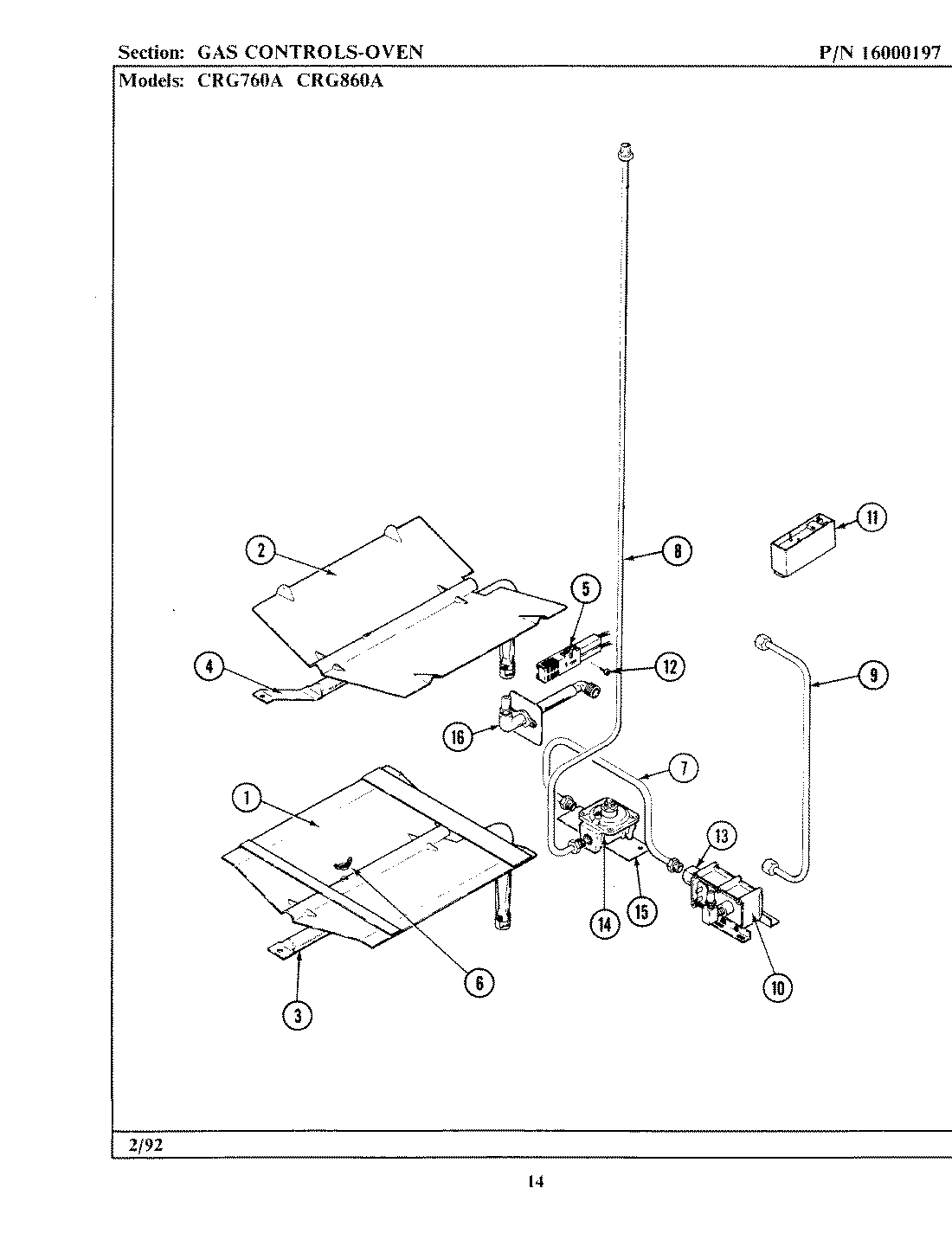

LCRG860A 04 – GAS CONTROLS-OVEN (xCRG760A xCRG860A)

LCRG860A 04 – GAS CONTROLS-OVEN (xCRG760A xCRG860A)

Written by

in

LCRG860A 04 – GAS CONTROLS-OVEN (xCRG760A xCRG860A)

Products

PositionProduct
1MAY 3601W184-19
2MAY 3601F181-45
3MAY 3403D027-45
4MAY 3403D028-45
5MAY 4005F363-45
5MAY 7432P067-60
6NUT, WING
7MAY 7506P075-60
8MAY 7506P101-60
9MAY 3414F057-44
10MAY 7501P095-60
11MAY 3801F270-45
11MAY 3801F303-45
11MAY 7431P021-60
12SCREW (10-24X5/16-NI)
13MAY 1555251
14MAY 7510P048-60
15MAY 3801F191-45
16MAY 7507P028-60
