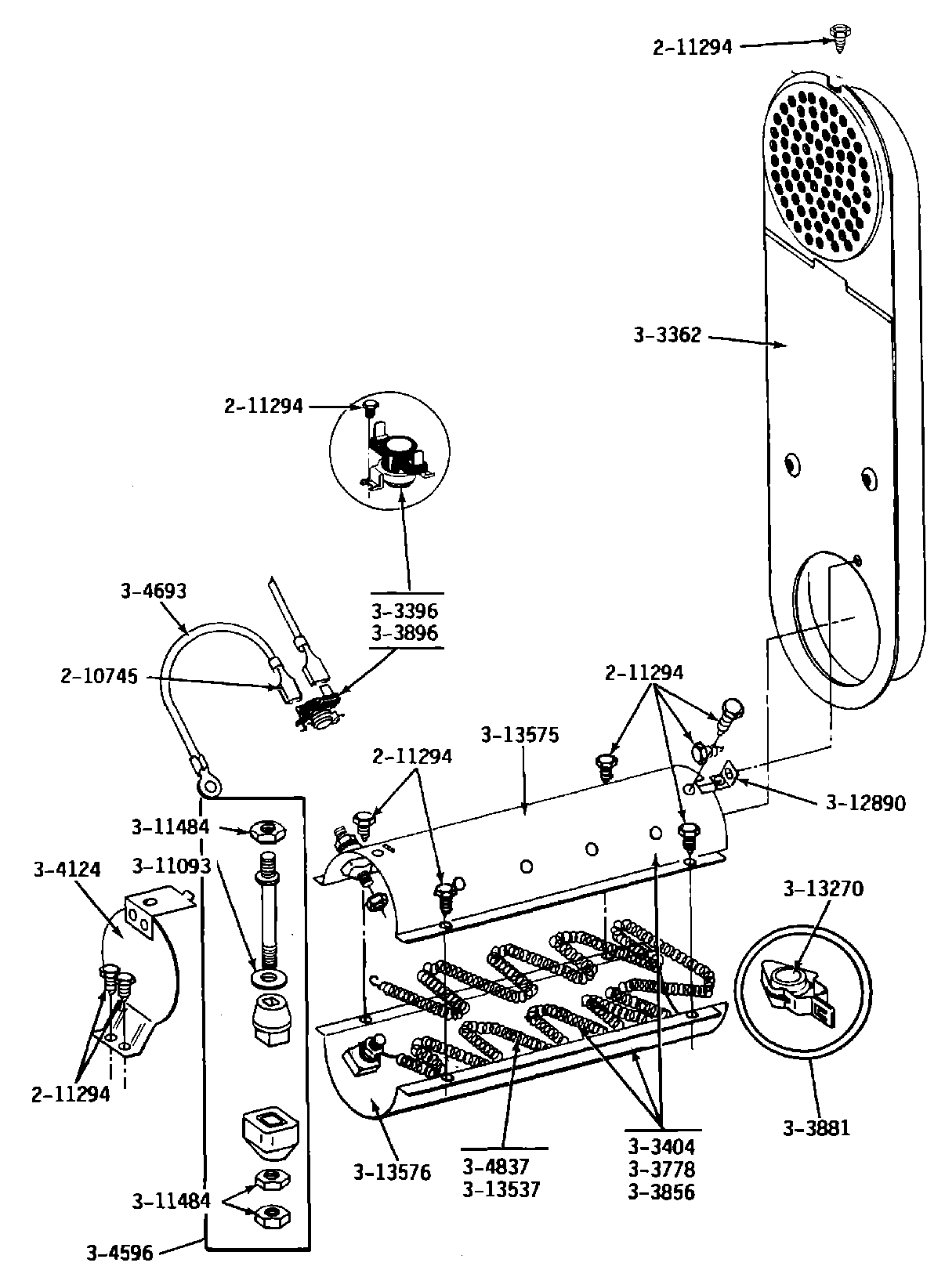

LDE19CD 05 – INLET DUCT & HEATER ASSEMBLY

Products

Position	Product
001	MAY 210745
002	WP90767 Whirlpool Screw
003	MAY Y303362
004	WP303396 Whirlpool Thermostat
005	WPY303404 Whirlpool Heating Element
006	MAY Y303778
007	MAY Y303856
008	WPY303881 Whirlpool Clip and Insulator
009	WP303896 Whirlpool High Limit Thermostat
010	MAY 304124
011	Y304596 Whirlpool Terminal Insulator Assembly
012	WPY304693 Whirlpool Wire Jumper
013	W10116793 Whirlpool Element
014	WP311093 Whirlpool Washer 7
015	WP112432 Whirlpool Nut Assembly
016	MAY Y312890
017	MAY Y313270
018	MAY Y313537
019	MAY Y313575
020	MAY Y313576
