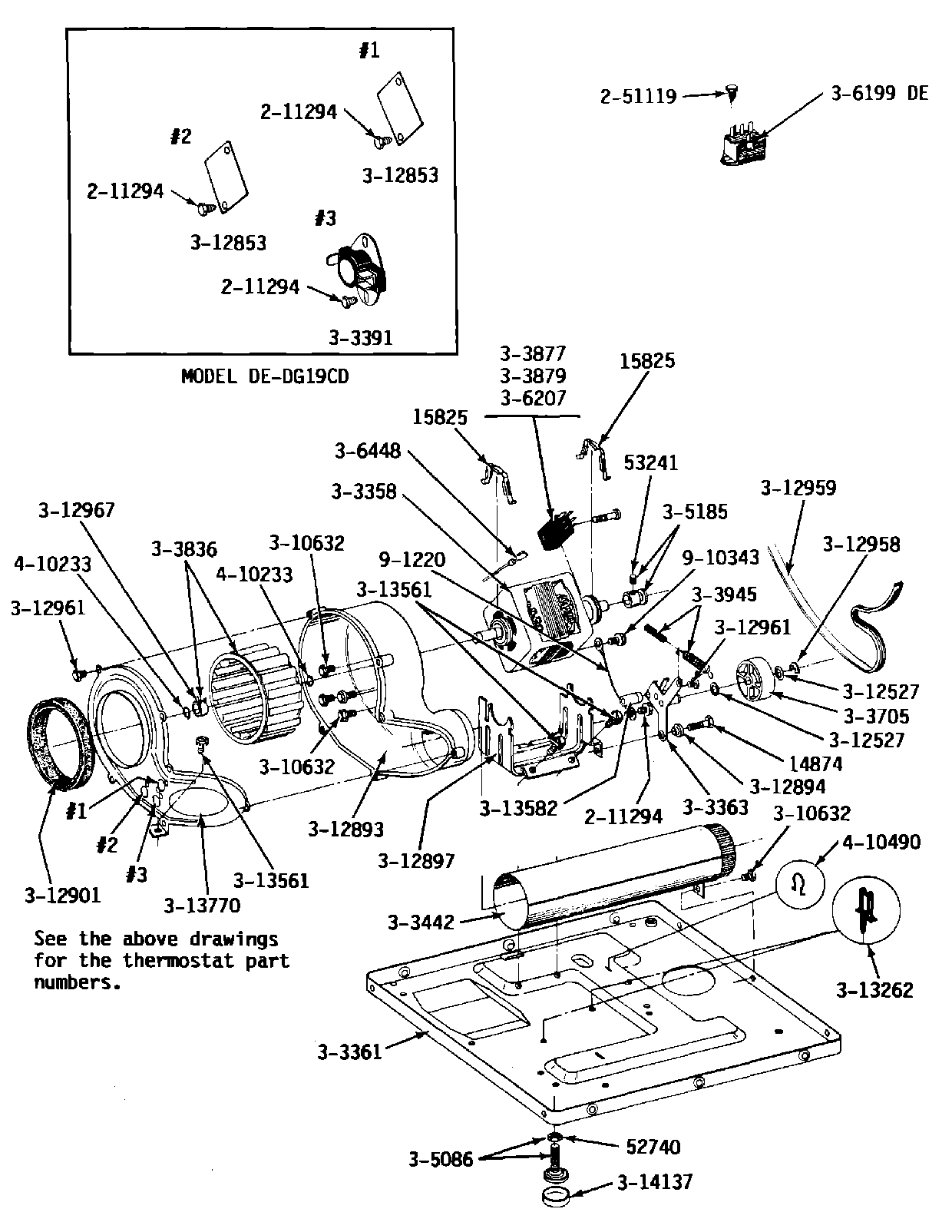

LDE19CD 06 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

Position	Product
001	WPY014874 Whirlpool Screw
002	WPY015825 Whirlpool Motor Clip
003	WP62739 Whirlpool Nut
004	MAY Y053241
005	WP90767 Whirlpool Screw
006	W10410999 Whirlpool Dryer Drive Motor
007	MAY Y303361
008	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
009	WP33303391 Whirlpool Thermostat
010	MAY Y303442
011	WP6-3037050 Whirlpool Idler Pulley
012	Y303836 Whirlpool Dryer Blower Wheel
013	MAY Y303877
014	MAY Y303879
015	MAY Y303945
016	W10176519 Whirlpool Leveling Feet
017	MAY Y305185
020	MAY 306199
021	WP3177991 Whirlpool Screw
022	MAY Y310632
023	MAY Y312527
024	MAY Y312853
025	MAY Y312893
026	SLEEVE, IDLER ARM ----S
027	DOWEL PIN FOR HANDLE
028	WPY312901 Whirlpool Blow Seal
029	WP354987 Whirlpool C-Clip
030	WPY312959 Whirlpool Dryer Drum Belt
031	WPW10116751 Whirlpool Screw
032	WP312967 Whirlpool Clamp
033	MAY Y313262
034	MAY Y313561
035	WPW10116756 Whirlpool Spacer
036	COVER FOR BLOWER HOUSING
037	WPY314137 Whirlpool Rubber Foot
038	WP9703438 Whirlpool Snap Retaining Ring
039	MAY 410490
040	MAY 901220
041	MAY 910343
