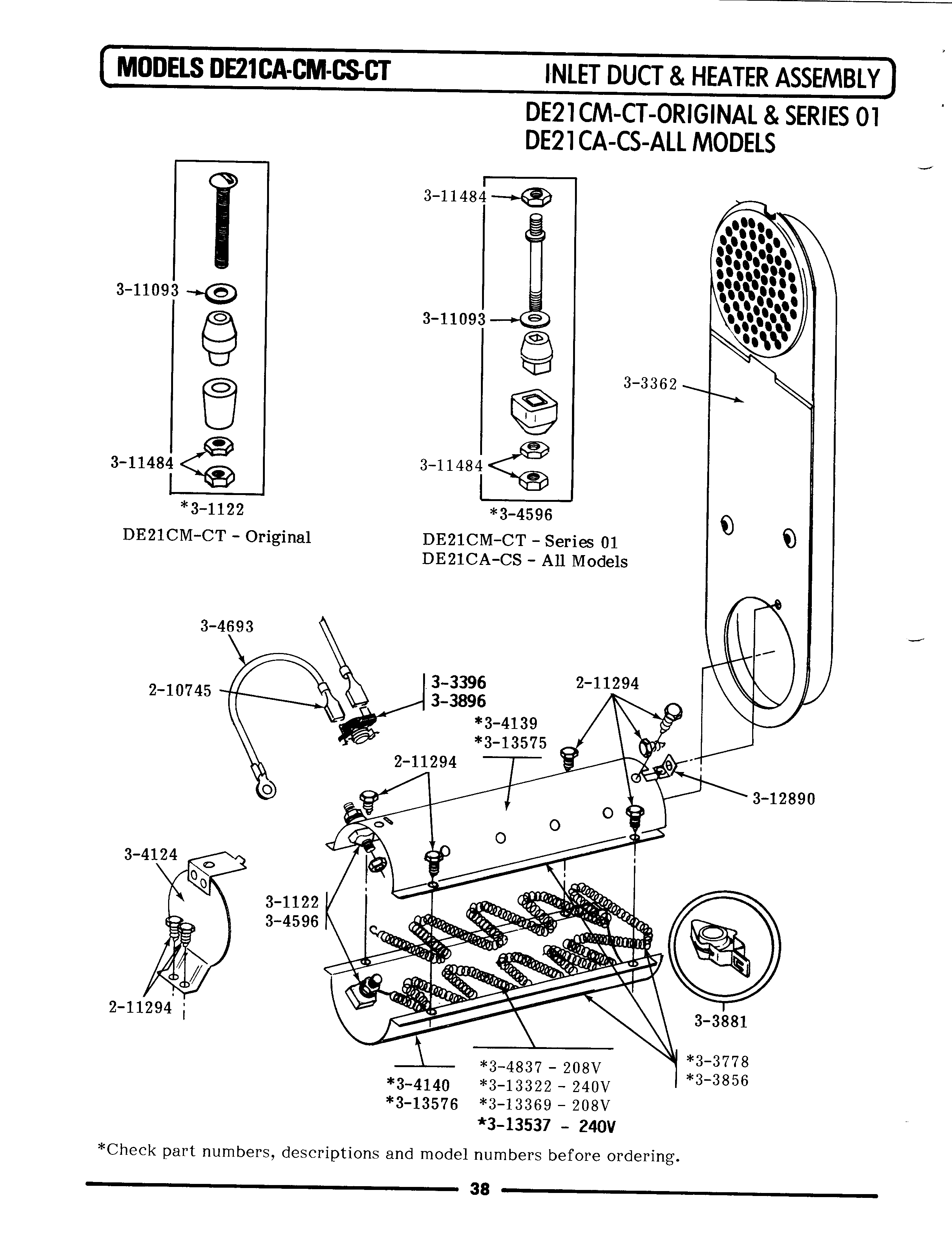

LDE21CS 08 – INLET DUCT & HEATER ASSEMBLY

Products

Position	Product
001	MAY 210745
002	WP90767 Whirlpool Screw
003	Y304596 Whirlpool Terminal Insulator Assembly
004	MAY Y303362
005	WP303396 Whirlpool Thermostat
006	MAY Y303778
007	MAY Y303856
008	WPY303881 Whirlpool Clip and Insulator
009	MAY 304124
013	WPY304693 Whirlpool Wire Jumper
014	W10116793 Whirlpool Element
015	WP311093 Whirlpool Washer 7
016	WP112432 Whirlpool Nut Assembly
017	MAY Y312890
018	HEATER ELEMENT
019	DOWEL PIN FOR HANDLE
020	MAY Y313537
021	MAY Y313575
022	MAY Y313576
023	WP303896 Whirlpool High Limit Thermostat
