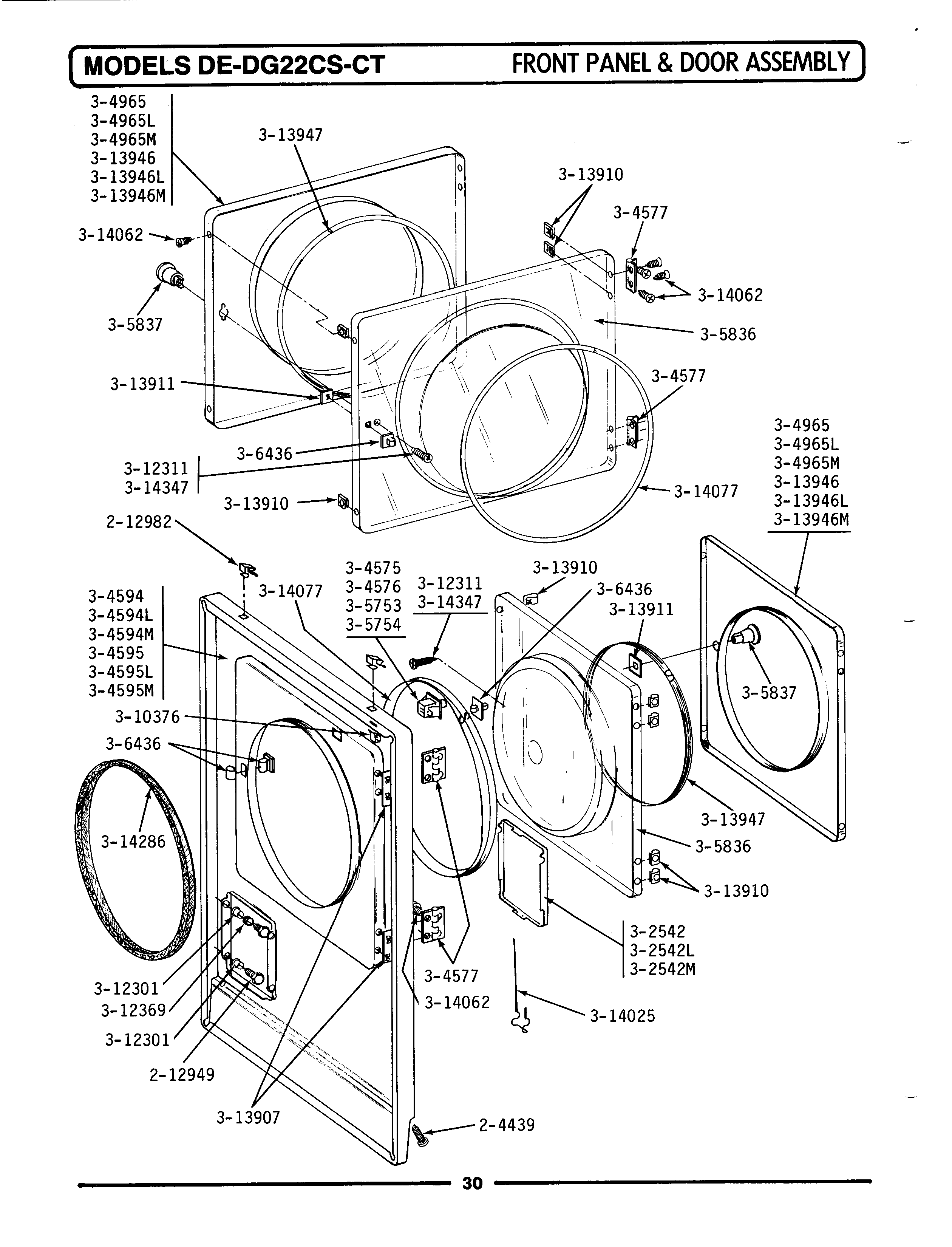

LDE22CS 08 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
001	SCREW & FSTNER ASSY (FT. PNL)
002	SCREW, BUSHINGS
003	MAY 212982
004	W10169313 Whirlpool Door Switch Kit
005	MAY Y304577
007	MAY 304965
011	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
012	MAY Y310376
015	SLEEVE, ACCESS DOOR RUBBER
016	LABEL, LINT SCREEN INSTR.
017	MAY Y313907
018	CLIP, DOOR LINER
019	MAY Y313911
020	MAY Y313927
021	MAY Y313946
022	MAY Y313947
023	LATCH, ACCESS DOOR
025	MAY 314077
028	DOWEL PIN FOR HANDLE
