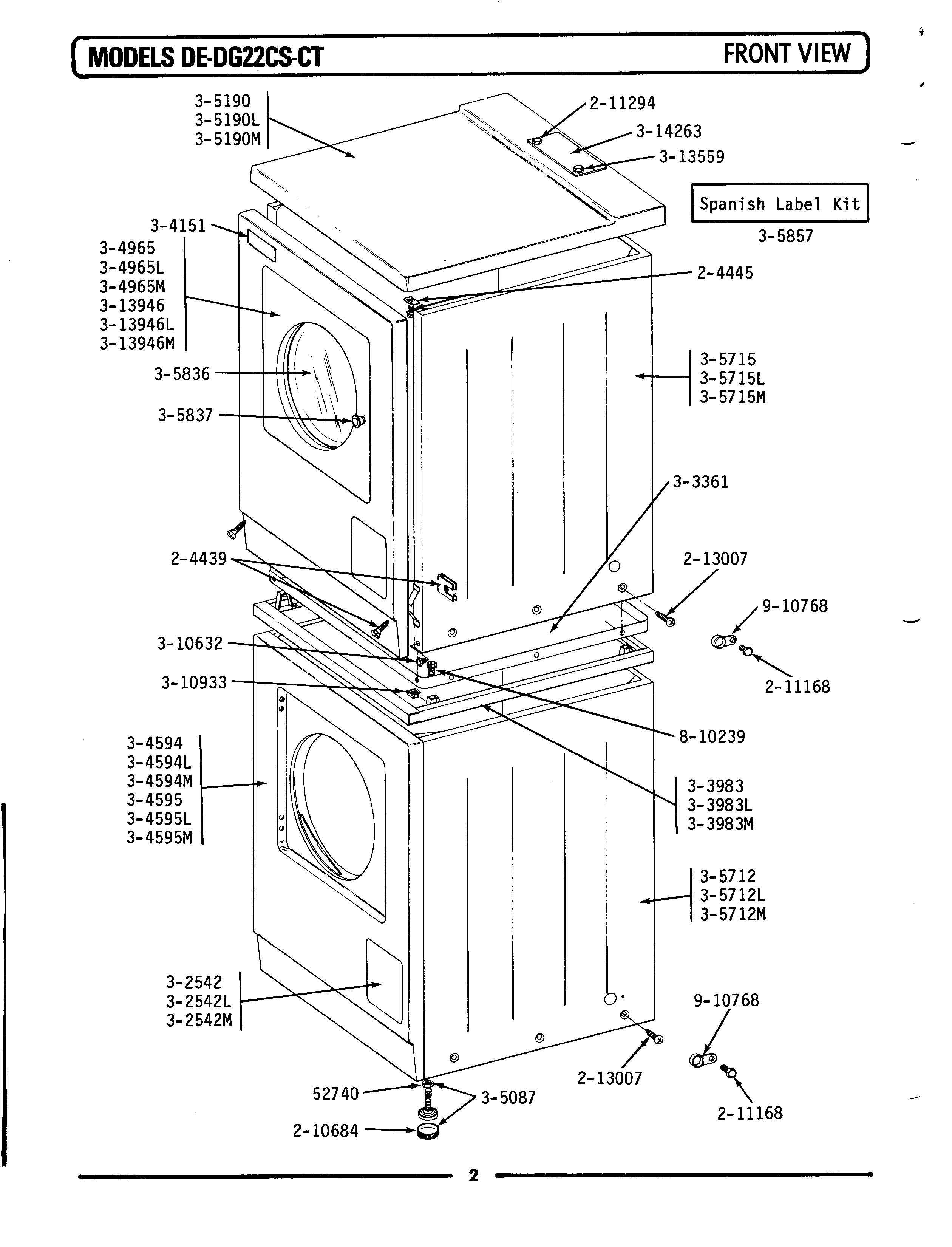

LDE22CT 01 – FRONT VIEW

Products

Position	Product
001	WP62739 Whirlpool Nut
002	SCREW & FSTNER ASSY (FT. PNL)
003	MAY 204445
004	WP210684 Whirlpool Dishwasher Leveling Leg Pad
005	WPW10139210 Whirlpool Screw
006	WP90767 Whirlpool Screw
007	213007 Whirlpool Screw #12
008	MAY Y303361
012	MAY 304965
013	MAY Y305087
014	MAY Y305190
019	MAY Y310632
020	MAY 310933
021	MAY Y313559
022	MAY Y313946
024	DOWEL PIN FOR HANDLE
025	CABLE STRAP-HARNESS TO BASE
