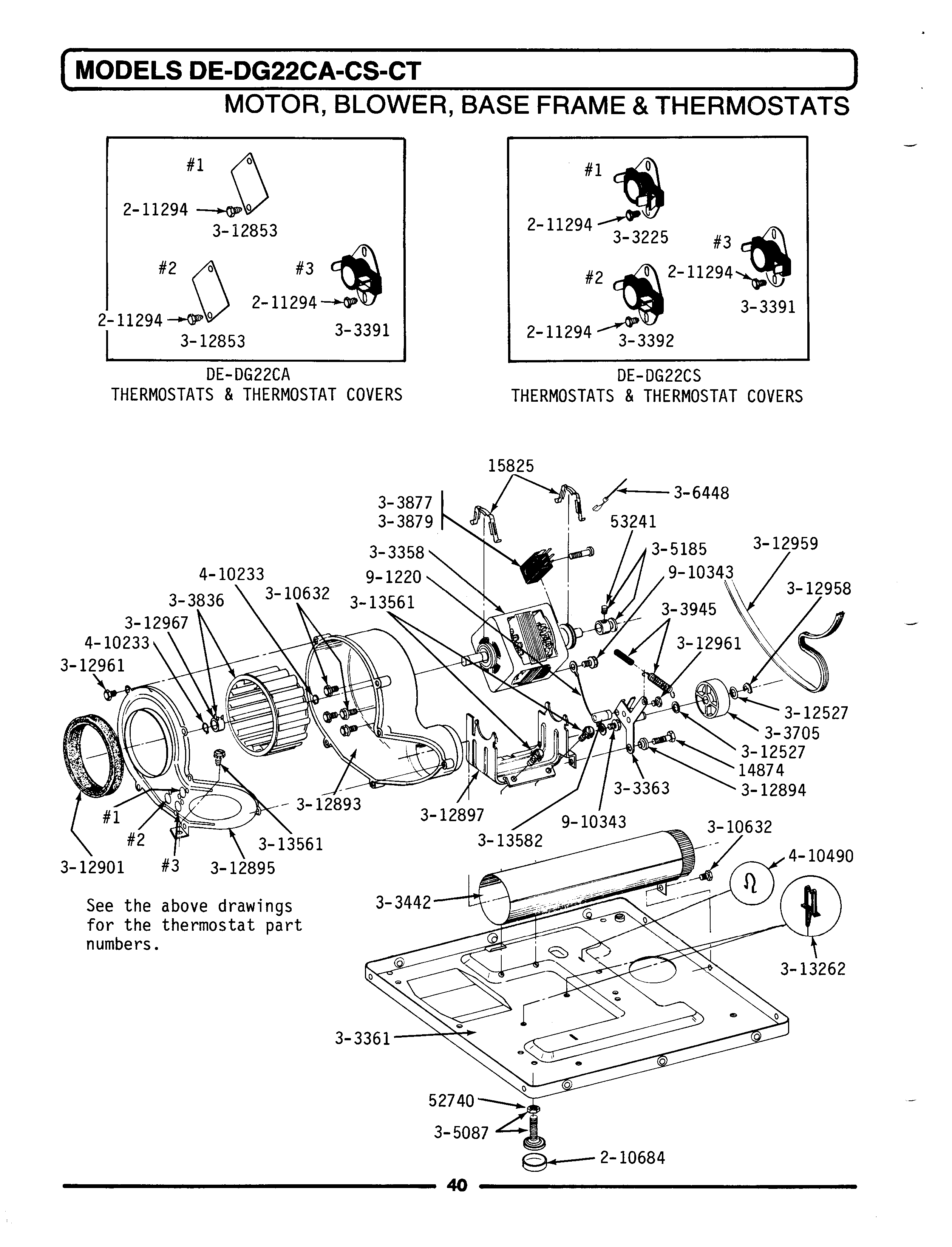

LDE22CT 11 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

Position	Product
001	WPY014874 Whirlpool Screw
002	WPY015825 Whirlpool Motor Clip
003	WP62739 Whirlpool Nut
004	MAY Y053241
005	WP210684 Whirlpool Dishwasher Leveling Leg Pad
006	WP90767 Whirlpool Screw
007	W10410999 Whirlpool Dryer Drive Motor
008	MAY Y303361
009	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
010	WP33303391 Whirlpool Thermostat
011	WP694674 Whirlpool Cycling Thermostat
012	MAY Y303442
013	WP6-3037050 Whirlpool Idler Pulley
014	Y303836 Whirlpool Dryer Blower Wheel
015	MAY Y303877
016	MAY Y303879
017	MAY Y303945
018	MAY Y305087
019	MAY Y305185
021	MAY Y310632
022	MAY Y312527
023	MAY Y312853
024	MAY Y312893
025	SLEEVE, IDLER ARM —-S
026	MAY Y312895
027	DOWEL PIN FOR HANDLE
028	WPY312901 Whirlpool Blow Seal
029	WP354987 Whirlpool C-Clip
030	WPY312959 Whirlpool Dryer Drum Belt
031	WPW10116751 Whirlpool Screw
032	WP312967 Whirlpool Clamp
034	MAY Y313262
035	MAY Y313561
036	WPW10116756 Whirlpool Spacer
037	WP9703438 Whirlpool Snap Retaining Ring
038	MAY 410490
039	MAY 901220
040	MAY 910343
