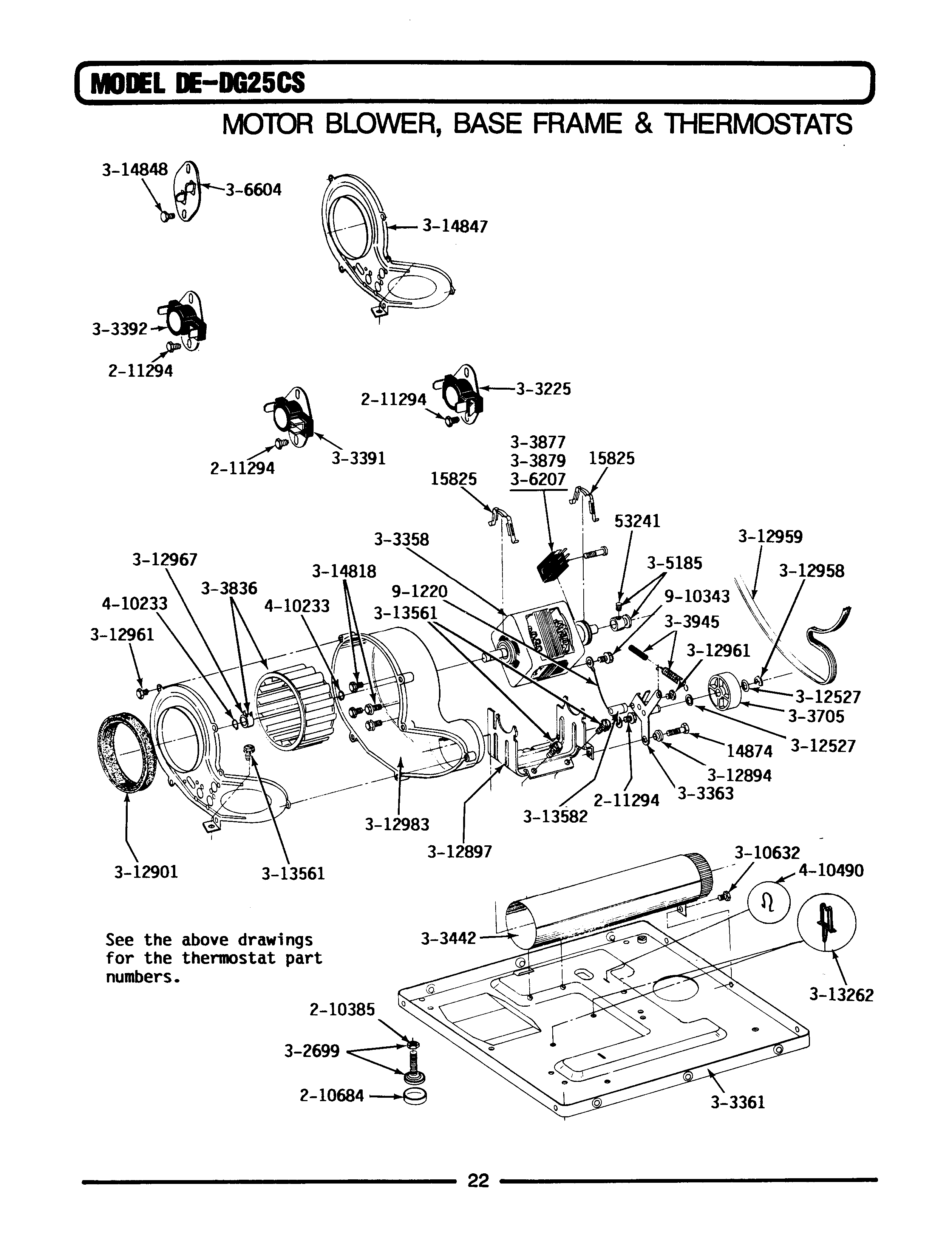

LDE25CS 09 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

PositionProduct
001WPY014874 Whirlpool Screw
002WPY015825 Whirlpool Motor Clip
003MAY Y053241
004WP210385 Whirlpool Lock Nut
005WP210684 Whirlpool Dishwasher Leveling Leg Pad
006WP90767 Whirlpool Screw
007LEG, ADJUSTABLE (W/NUT)—S
008PART NOT USED
009W10410999 Whirlpool Dryer Drive Motor
010MAY Y303361
011WP6-3033630 Whirlpool Dryer Idler Arm Assembly
012WP33303391 Whirlpool Thermostat
013WP694674 Whirlpool Cycling Thermostat
014MAY Y303442
015WP6-3037050 Whirlpool Idler Pulley
016Y303836 Whirlpool Dryer Blower Wheel
017MAY Y303877
018MAY Y303879
019MAY Y303945
020MAY Y305185
023WP306604 Whirlpool Cut-off
024MAY Y310632
025MAY Y312527
026MAY Y312893
027SLEEVE, IDLER ARM —-S
029WPY312901 Whirlpool Blow Seal
030WP354987 Whirlpool C-Clip
031WPY312959 Whirlpool Dryer Drum Belt
032WPW10116751 Whirlpool Screw
033WP312967 Whirlpool Clamp
034MAY Y313262
035MAY Y313561
036WPW10116756 Whirlpool Spacer
037MAY 314818
038MAY 314847
039DOWEL PIN FOR HANDLE
040WP9703438 Whirlpool Snap Retaining Ring
041MAY 410490
042MAY 901220
043MAY 910343
