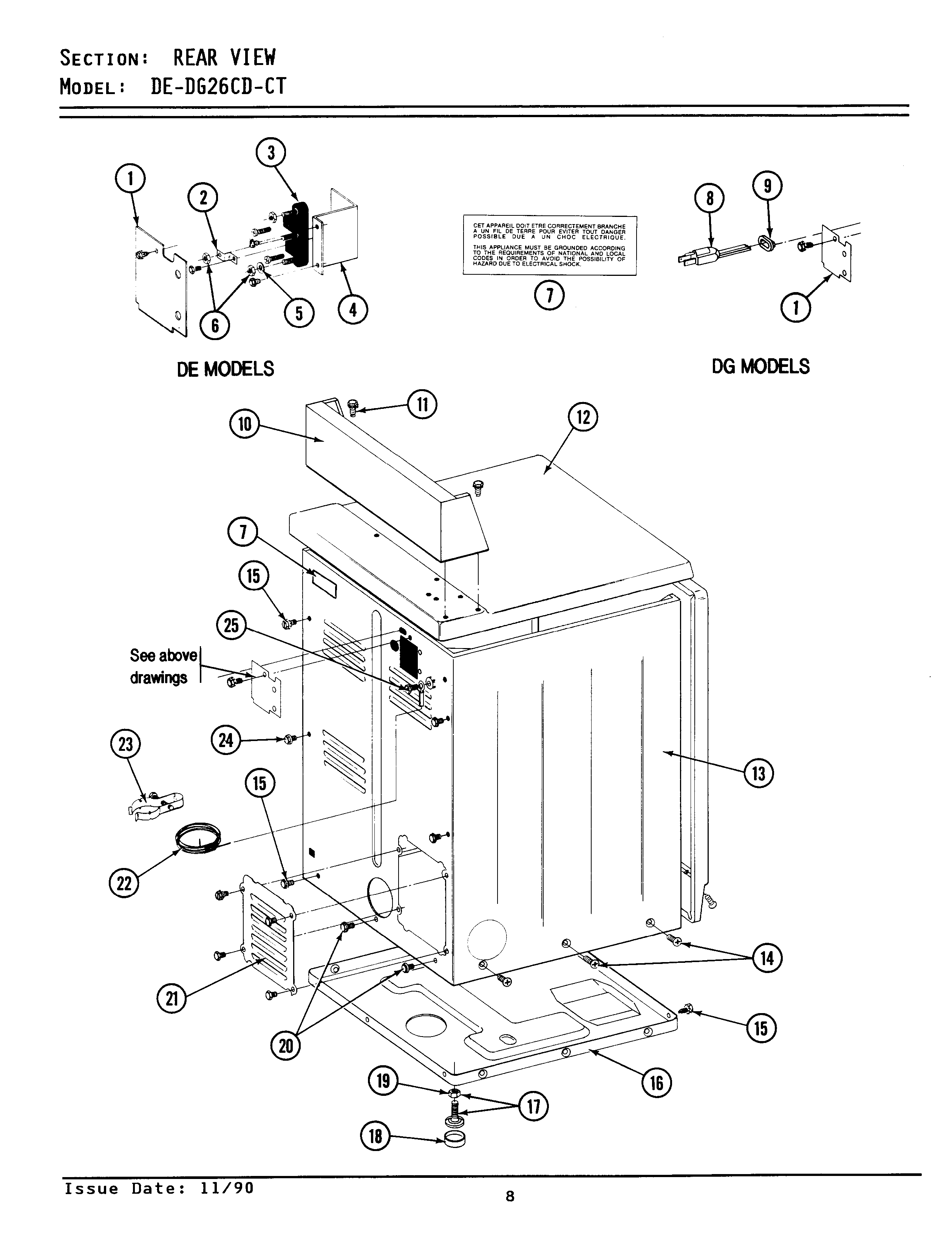

LDE26CD 02 – REAR VIEW – CD/CT MODELS – Aparts

LDE26CD 02 – REAR VIEW – CD/CT MODELS

Products

Position	Product
001	MAY Y312905
002	PART NOT USED
002	PART NOT USED
003	PART NOT USED
003	SCREW, No.10-24 X 3/4 INCH-----O
004	PART NOT USED
005	WPY311270 Whirlpool Washer TE
006	WP112432 Whirlpool Nut Assembly
007	INSTRUCTION LABEL
008	MAY 305168
009	GROMMET
011	MAY 212276
012	MAY 307105
014	213007 Whirlpool Screw #12
015	MAY Y313561
016	MAY Y303361
017	W10176519 Whirlpool Leveling Feet
018	WPY314137 Whirlpool Rubber Foot
019	WP62739 Whirlpool Nut
021	WP90767 Whirlpool Screw
021	MAY Y312951
021	MAY Y313559
022	WP311155 Whirlpool Wire Assembly
023	MAY 301548
024	MAY Y310632
025	DOWEL PIN FOR HANDLE
