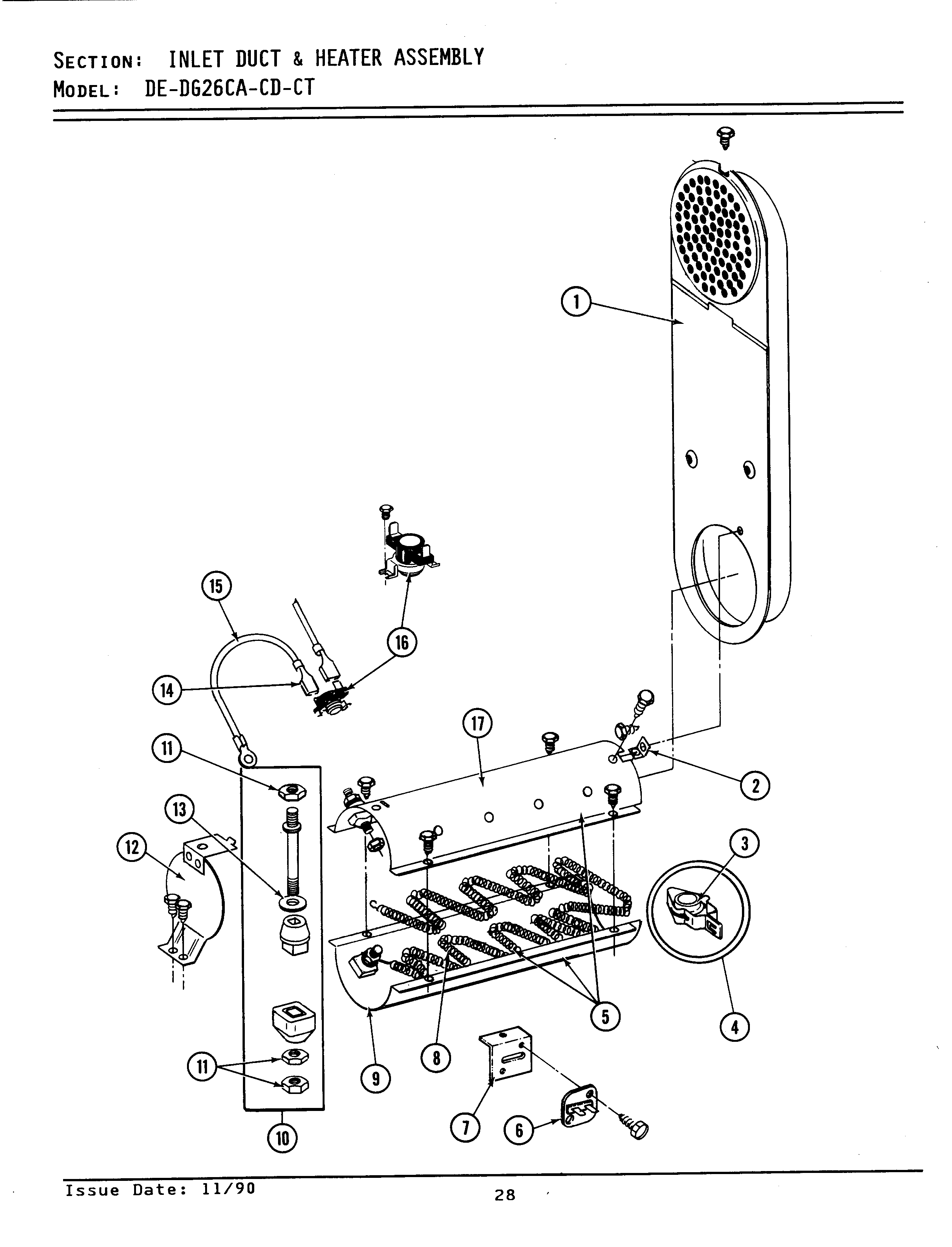

LDE26CT 08 – INLET DUCT & HEATER ASSEMBLY

Products

Position	Product
002	MAY Y312890
003	MAY Y313270
004	WPY303881 Whirlpool Clip and Insulator
005	MAY 307471
005	MAY 307470
006	WP307473 Whirlpool Thermal Fuse
006	DOWEL PIN FOR HANDLE
007	MAY 315046
008	W10116793 Whirlpool Element
008	MAY Y313537
009	MAY Y313576
010	Y304596 Whirlpool Terminal Insulator Assembly
011	WP112432 Whirlpool Nut Assembly
012	MAY 304124
013	WP311093 Whirlpool Washer 7
014	MAY 210745
015	WPY304693 Whirlpool Wire Jumper
016	WP303396 Whirlpool Thermostat
016	WP303896 Whirlpool High Limit Thermostat
017	MAY Y313575
017	WP90767 Whirlpool Screw
