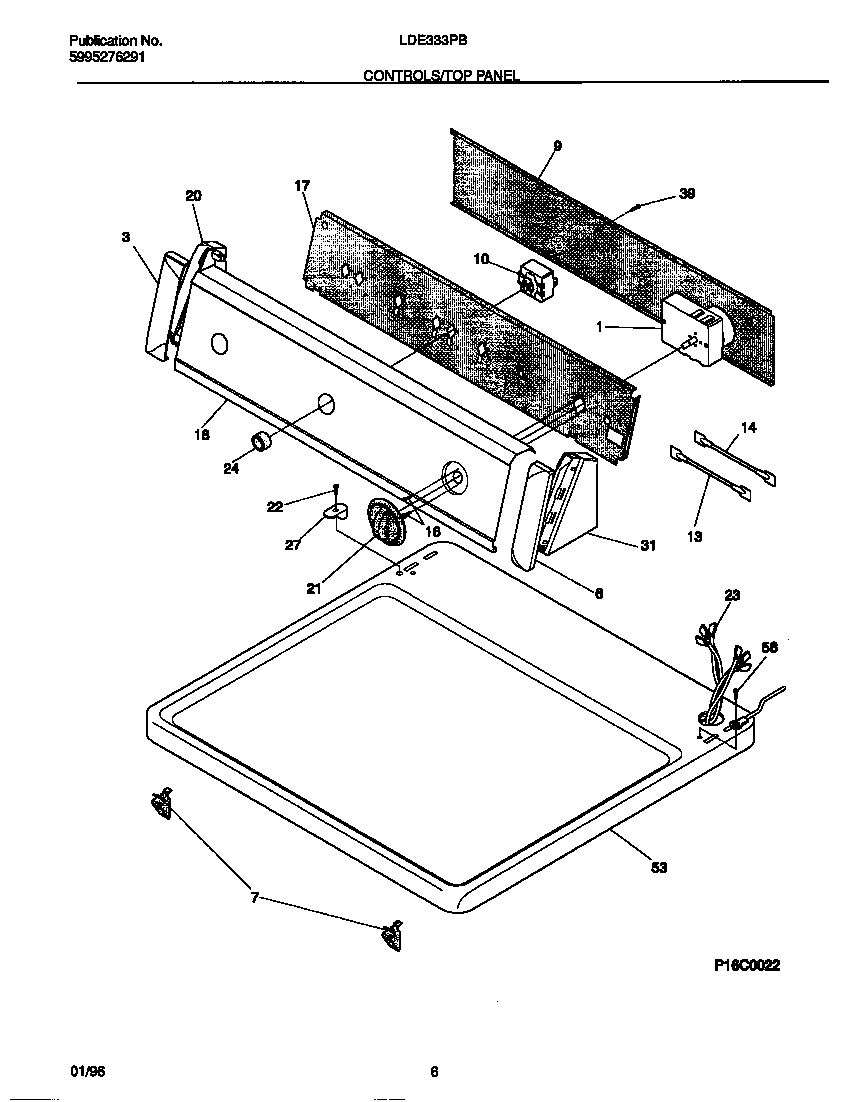

LDE333PBW0 04 – CONTROLS/TOP PANEL

LDE333PBW0 04 – CONTROLS/TOP PANEL

Written by

in

LDE333PBW0 04 – CONTROLS/TOP PANEL

Products

PositionProduct
*352015303303590 Frigidaire Dryer 4.0" Cable Tie
1131062300 Frigidaire Timer
3WCI 131122610
6WCI 131122600
73205821 Frigidaire Clip
9BACKSHEET
10WCI 131048000
13RESISTOR, 3.0K
14RESISTOR-POWER, 4.4K
17WCI 131297306
18WCI 131501500
20WCI 131122710
21134011703 Frigidaire Dryer Timer Knob
22WCI 131266300
23WCI 131235100
24KNOB-START SWITCH, BLACK
27CLIP-CONSOLE MTG
31WCI 131122700
39131205100 Frigidaire Screw
53WCI 131130402
56131243800 Frigidaire Screw
