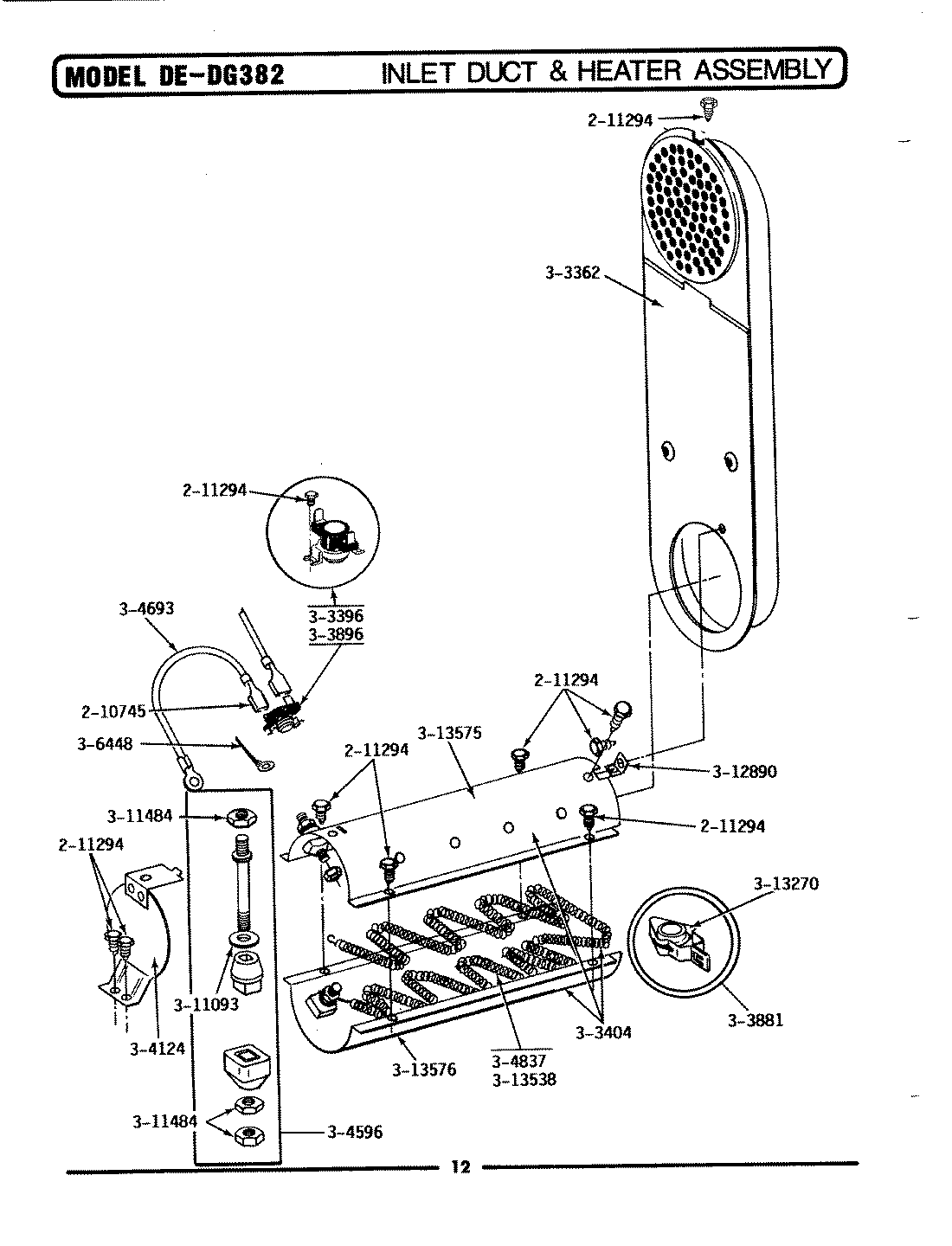

LDE382 04 – INLET DUCT & HEATER ASSEMBLY

LDE382 04 – INLET DUCT & HEATER ASSEMBLY

Written by

in

LDE382 04 – INLET DUCT & HEATER ASSEMBLY

Products

PositionProduct
1MAY 210745
2WP90767 Whirlpool Screw
3MAY Y303362
4WP303396 Whirlpool Thermostat
5WPY303404 Whirlpool Heating Element
6WPY303881 Whirlpool Clip and Insulator
7WP303896 Whirlpool High Limit Thermostat
8MAY 304124
9Y304596 Whirlpool Terminal Insulator Assembly
10WPY304693 Whirlpool Wire Jumper
11W10116793 Whirlpool Element
12MAY 306448
13WP311093 Whirlpool Washer 7
14WP112432 Whirlpool Nut Assembly
15MAY Y312890
16MAY Y313270
17WPY313538 Whirlpool Heater Element
18MAY Y313575
19MAY Y313576
