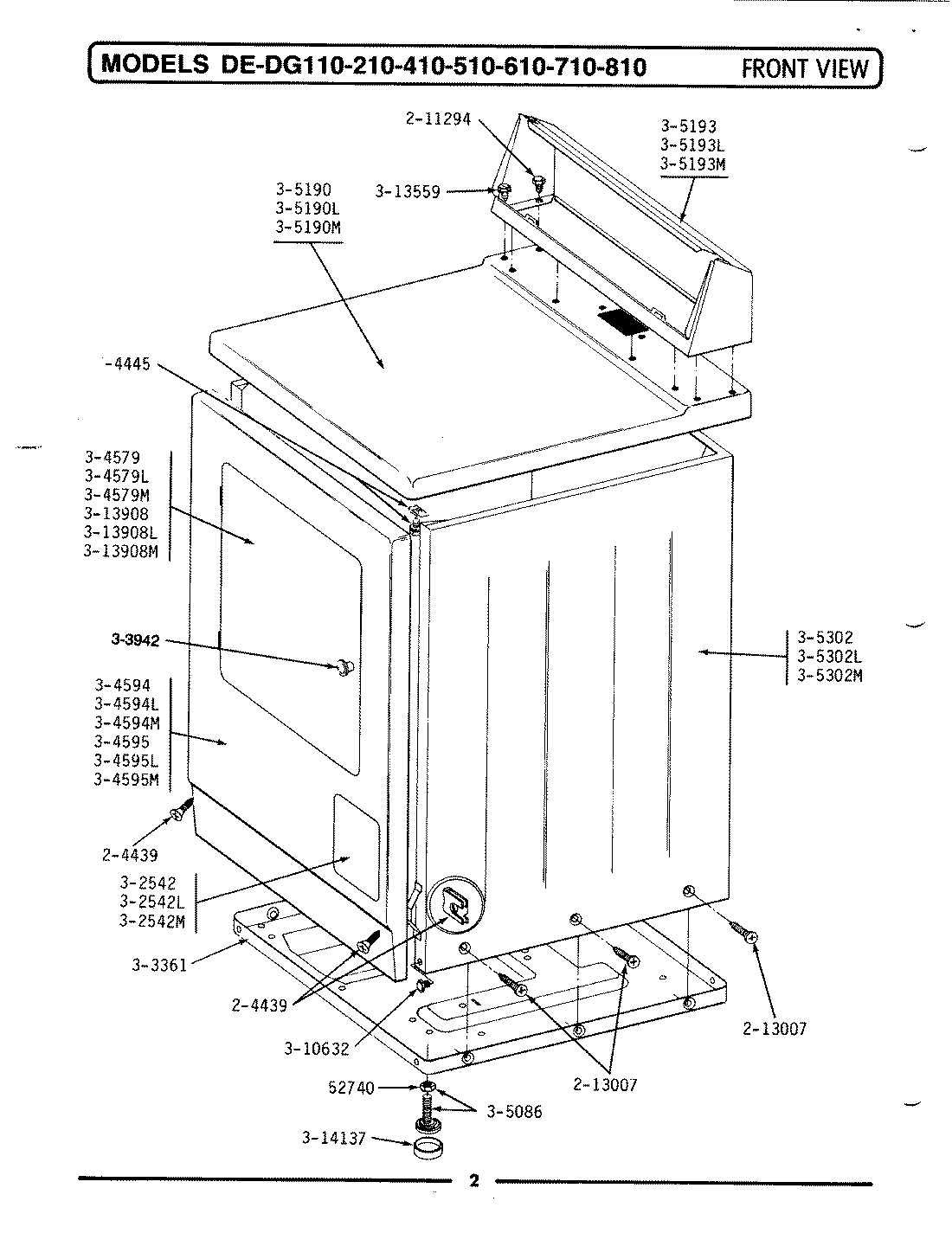

LDE410 03 – FRONT VIEW

LDE410 03 – FRONT VIEW

Written by

in

LDE410 03 – FRONT VIEW

Products

PositionProduct
1WP62739 Whirlpool Nut
2SCREW & FSTNER ASSY (FT. PNL)
3MAY 204445
4WP90767 Whirlpool Screw
5213007 Whirlpool Screw #12
6MAY 302542
7MAY 302542L
8MAY 302542M
9MAY Y303361
11MAY 304579L
13MAY 304594
14MAY 304594L
15MAY 304594M
17MAY 304595L
19W10176519 Whirlpool Leveling Feet
21MAY 305190L
24MAY 305193L
27MAY 305302L
29MAY 303942
30MAY Y310632
31MAY Y313559
33MAY 313908L
35WPY314137 Whirlpool Rubber Foot
