LDE4916ACE 04 – DOOR

LDE4916ACE 04 – DOOR

Written by

in

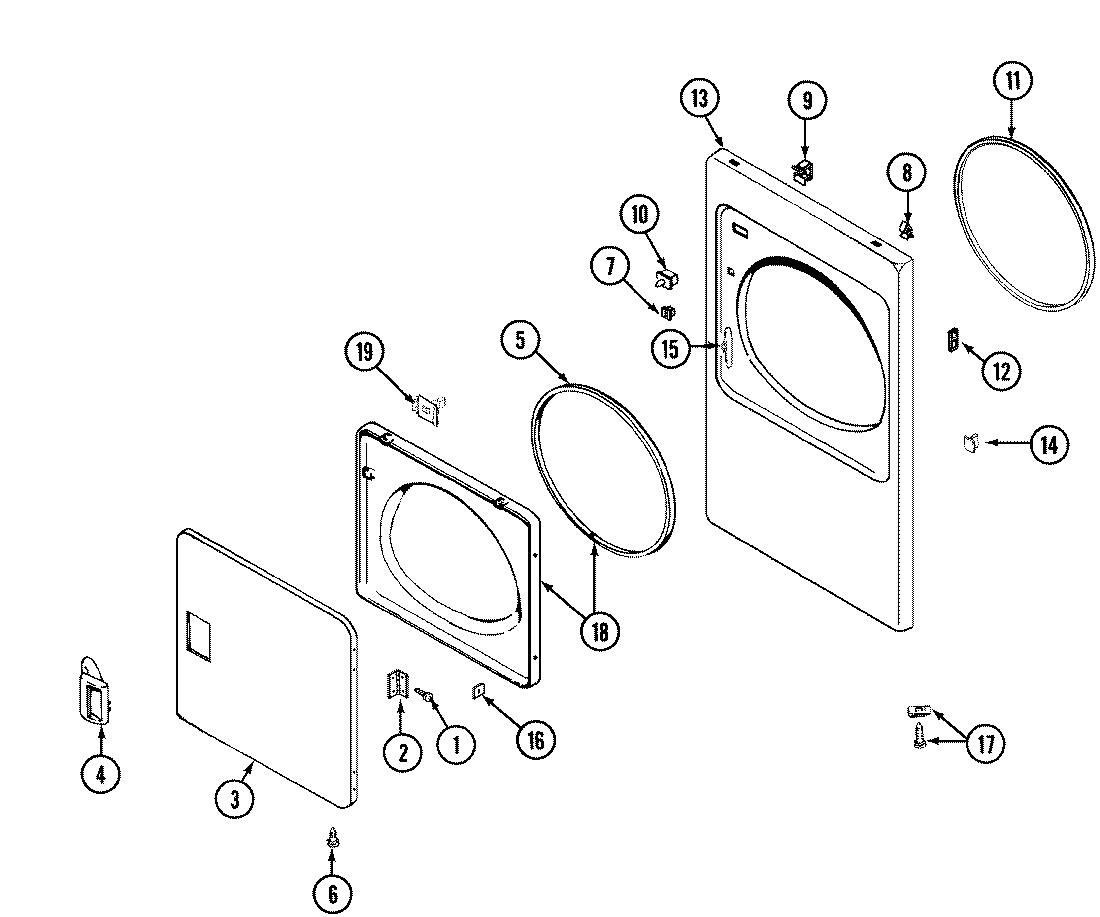

LDE4916ACE 04 – DOOR

Products

PositionProduct
2MAY 33001230
3MAY 33001240
3WP22001817 Whirlpool Sheet
5MAY 33001131
6MAY 33001132
7MAY Y304578
8WP22001650 Whirlpool Spring Clip
9MAY Y310376
10W10169313 Whirlpool Door Switch Kit
11MAY 314937
12MAY 33001487
13WP98008544 Whirlpool Screw Assembly
13MAY 33001610
14MAY 33001174
15MAY 33001175
16CLIP, DOOR LINER
17MAY 12001341
18MAY 33001243
19WP33001305 Whirlpool Door Strike Assembly
