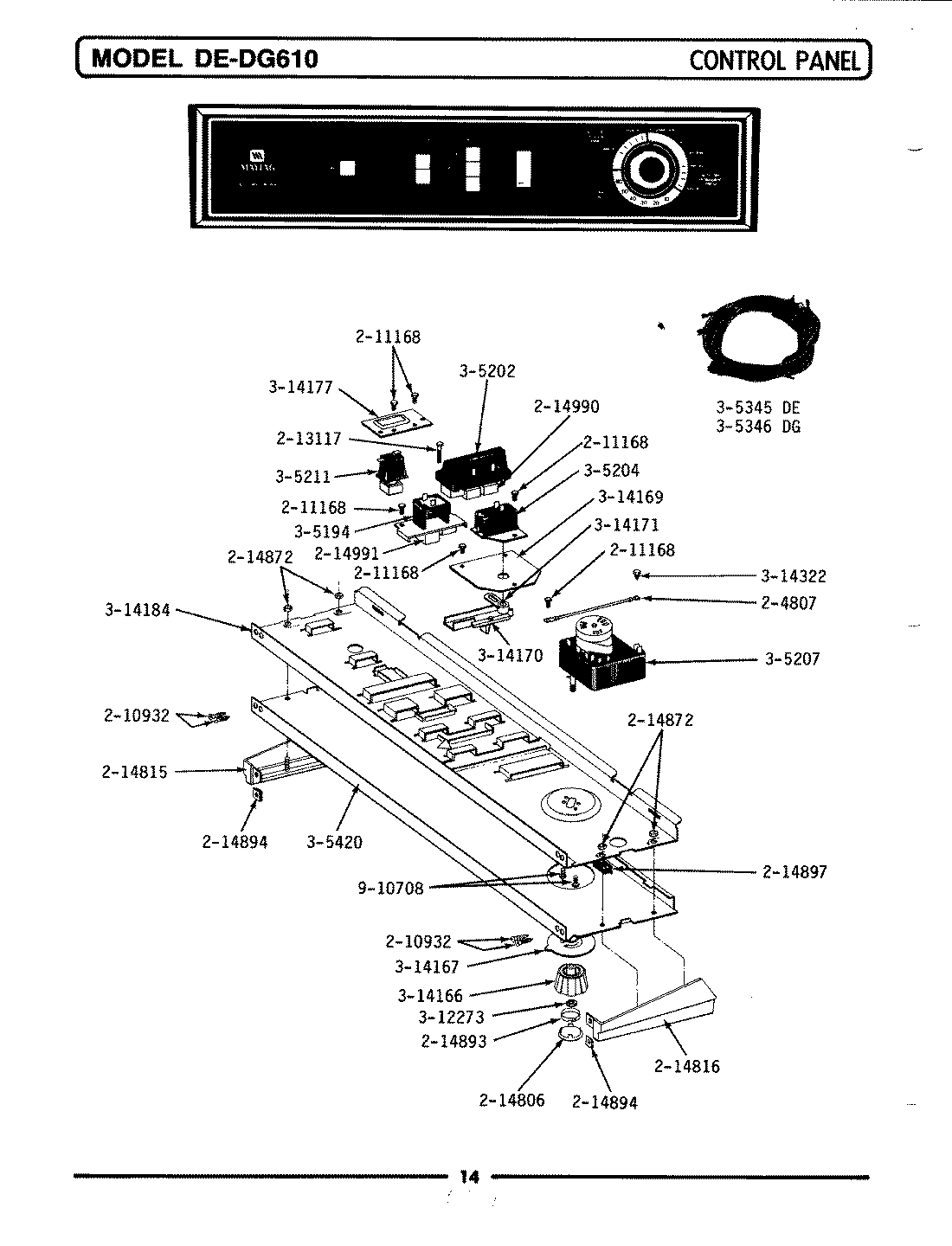

LDE610 01 – CONTROL PANEL

Products

Position	Product
1	MAY 204807
2	MAY 210932
3	WPW10139210 Whirlpool Screw
4	WP67006908 Whirlpool Refrigerator Screw
5	MAY 214806
6	MAY 214815
7	MAY 214816
8	MAY 214872
9	MAY 214893
10	MAY 214894
11	MAY 214897
12	MAY 214990
13	MAY 214991
14	MAY 305194
15	MAY 305202
16	MAY Y305204
17	MAY 305207
18	MAY 305211
19	MAY 305345
20	MAIN WIRE HARNESS
21	CONTROL PANEL
22	W10155650 Whirlpool Nut
23	MAY Y314166
24	TIMER DIAL INDICATOR
25	BRACKET FOR BUZZER
26	MAY 314170
27	MAY 314171
28	BRACKET FOR START SWITCH
29	BACK UP PLATE
30	MAY Y314322
31	MAY 910708
