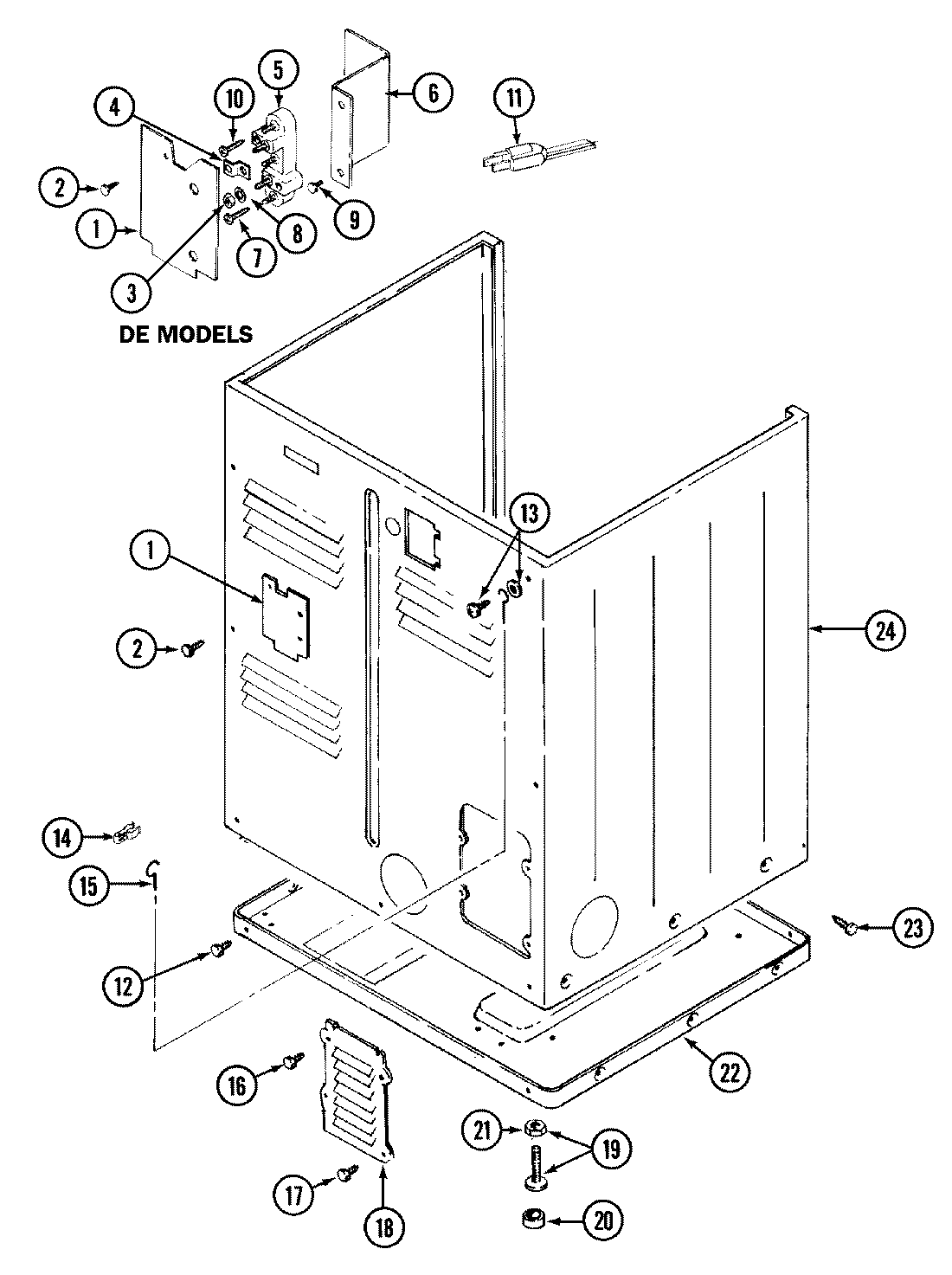

LDE7304ADL 02 – CABINET-REAR

LDE7304ADL 02 – CABINET-REAR

Written by

in

LDE7304ADL 02 – CABINET-REAR

Products

PositionProduct
1MAY Y312905
3WP112432 Whirlpool Nut Assembly
5PART NOT USED
6PART NOT USED
7SCREW, No.10-24 X 3/4 INCH—–O
8WPY311270 Whirlpool Washer TE
11MAY 305168
11MAY 33001425
12MAY Y313561
12MAY Y310632
14MAY 301548
15MAY 204807
16MAY Y313559
17WP90767 Whirlpool Screw
18MAY Y312951
19W10176519 Whirlpool Leveling Feet
20WPY314137 Whirlpool Rubber Foot
21WP62739 Whirlpool Nut
22MAY Y303361
23213007 Whirlpool Screw #12
24MAY 33001160
