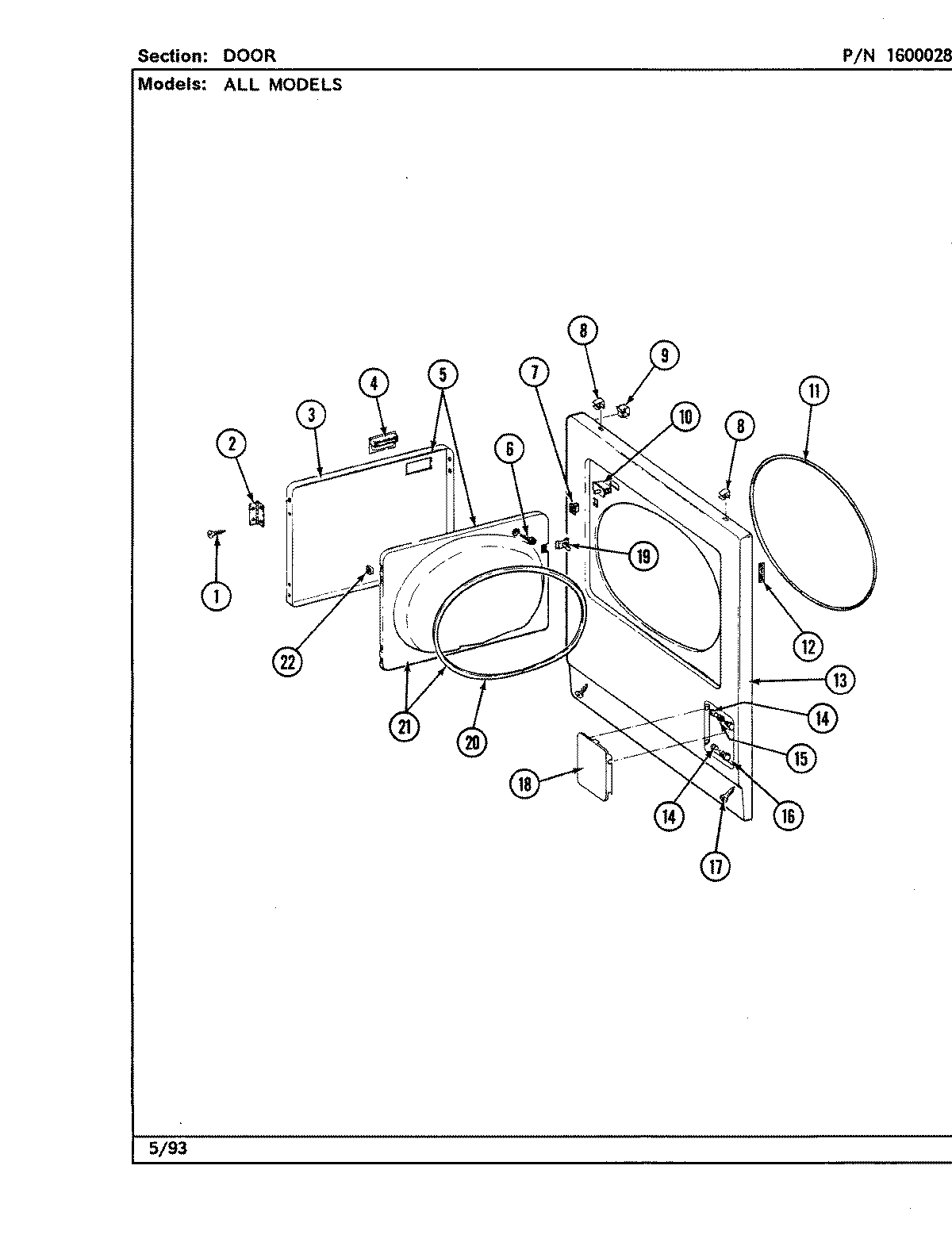

| 2 | MAY 307099 |
| 6 | SCREW |
| 7 | 306436 Whirlpool Washer Dryer Door Catch and Plastic Strike |
| 8 | MAY 212982 |
| 9 | MAY Y310376 |
| 10 | W10169313 Whirlpool Door Switch Kit |
| 11 | MAY 314937 |
| 12 | MAY Y313907 |
| 14 | BUSHING FOR ACCESS STUD |
| 15 | SLEEVE, ACCESS DOOR RUBBER |
| 16 | SCREW, BUSHINGS |
| 17 | SCREW & FSTNER ASSY (FT. PNL) |
| 19 | MAY 314936 |
| 20 | MAY 314935 |
| 21 | MAY 307098 |
| 22 | MAY 314941 |
| 22 | CLIP, DOOR LINER |
| 22 | MAY 315441 |
