LDE7480ADL 01 – CABINET-FRONT – Aparts

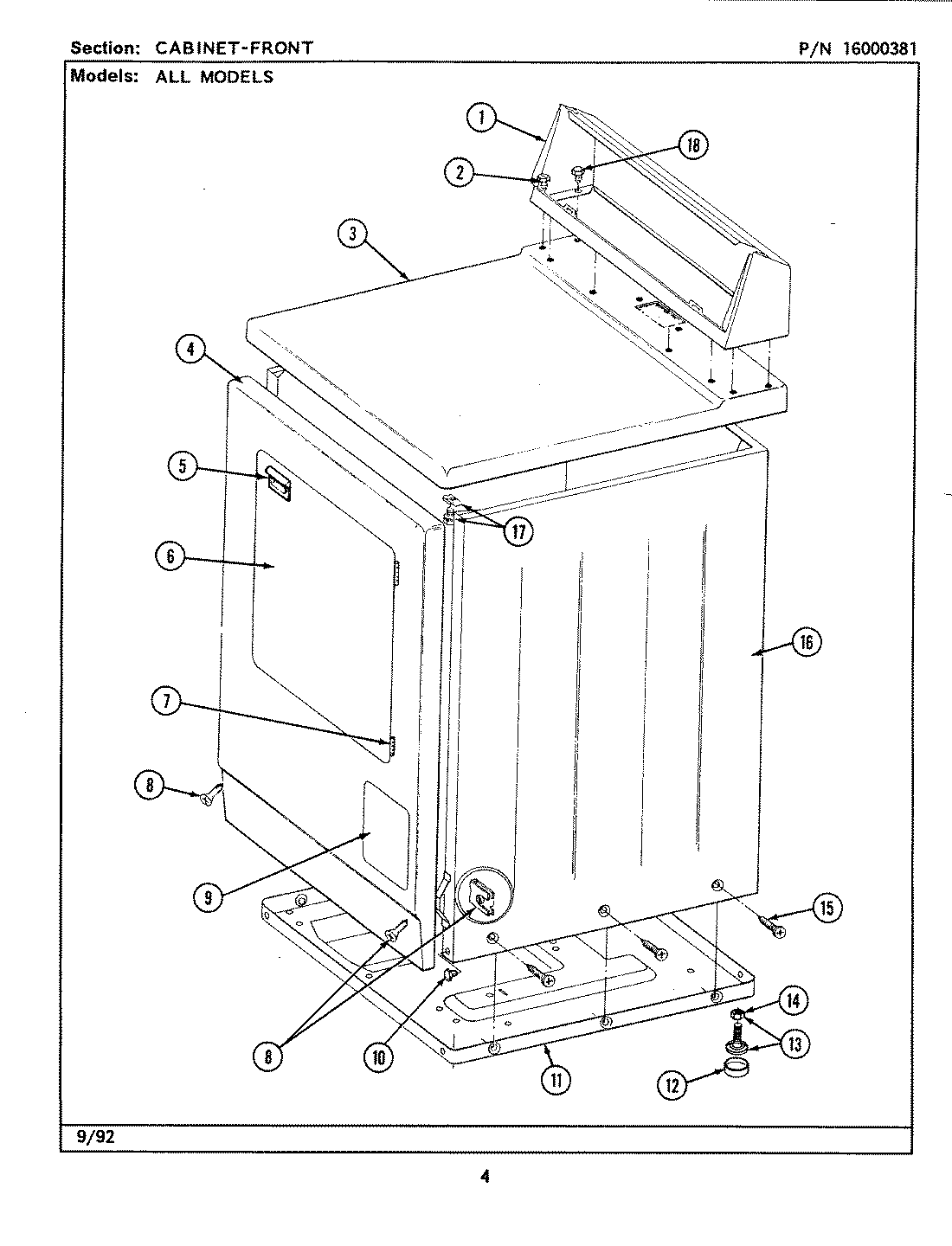

LDE7480ADL 01 – CABINET-FRONT

Products

Position	Product
1	MAY 305193L
2	MAY Y313559
3	MAY 307104L
4	MAY 308000L
5	MAY 314972
6	MAY 314966L
6	MAY 307111L
7	MAY 307099
8	SCREW & FSTNER ASSY (FT. PNL)
10	MAY Y310632
11	MAY Y303361
12	WPY314137 Whirlpool Rubber Foot
13	W10176519 Whirlpool Leveling Feet
14	WP62739 Whirlpool Nut
15	213007 Whirlpool Screw #12
16	MAY 307124L
17	MAY 204445
18	WP90767 Whirlpool Screw
