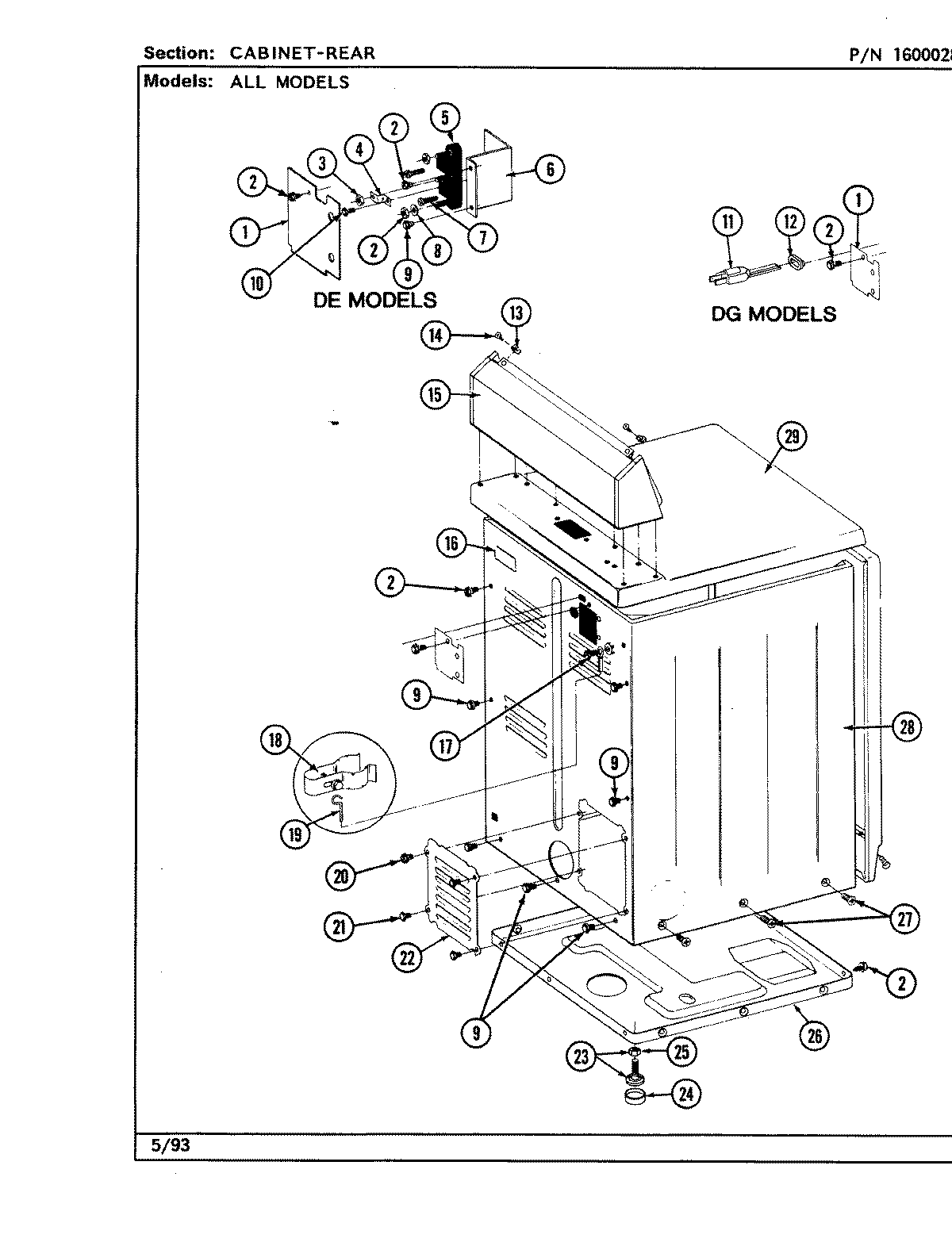

LDE7500ACL 03 – CABINET-REAR (LDE7500ACL,ACW,ADL,ADW)

LDE7500ACL 03 – CABINET-REAR (LDE7500ACL,ACW,ADL,ADW)

Written by

in

LDE7500ACL 03 – CABINET-REAR (LDE7500ACL,ACW,ADL,ADW)

Products

PositionProduct
1MAY Y312905
2MAY Y313561
3WP112432 Whirlpool Nut Assembly
4PART NOT USED
5PART NOT USED
6PART NOT USED
7SCREW, No.10-24 X 3/4 INCH—–O
8WPY311270 Whirlpool Washer TE
9MAY Y310632
10PART NOT USED
13MAY 215075
14MAY 210932
15MAY 305193L
16INSTRUCTION LABEL
17MAY 303846
20MAY Y313559
21WP90767 Whirlpool Screw
22MAY Y312951
23W10176519 Whirlpool Leveling Feet
24WPY314137 Whirlpool Rubber Foot
25WP62739 Whirlpool Nut
26MAY Y303361
27MAY 213077
28MAY 307124L
29MAY 307104L
