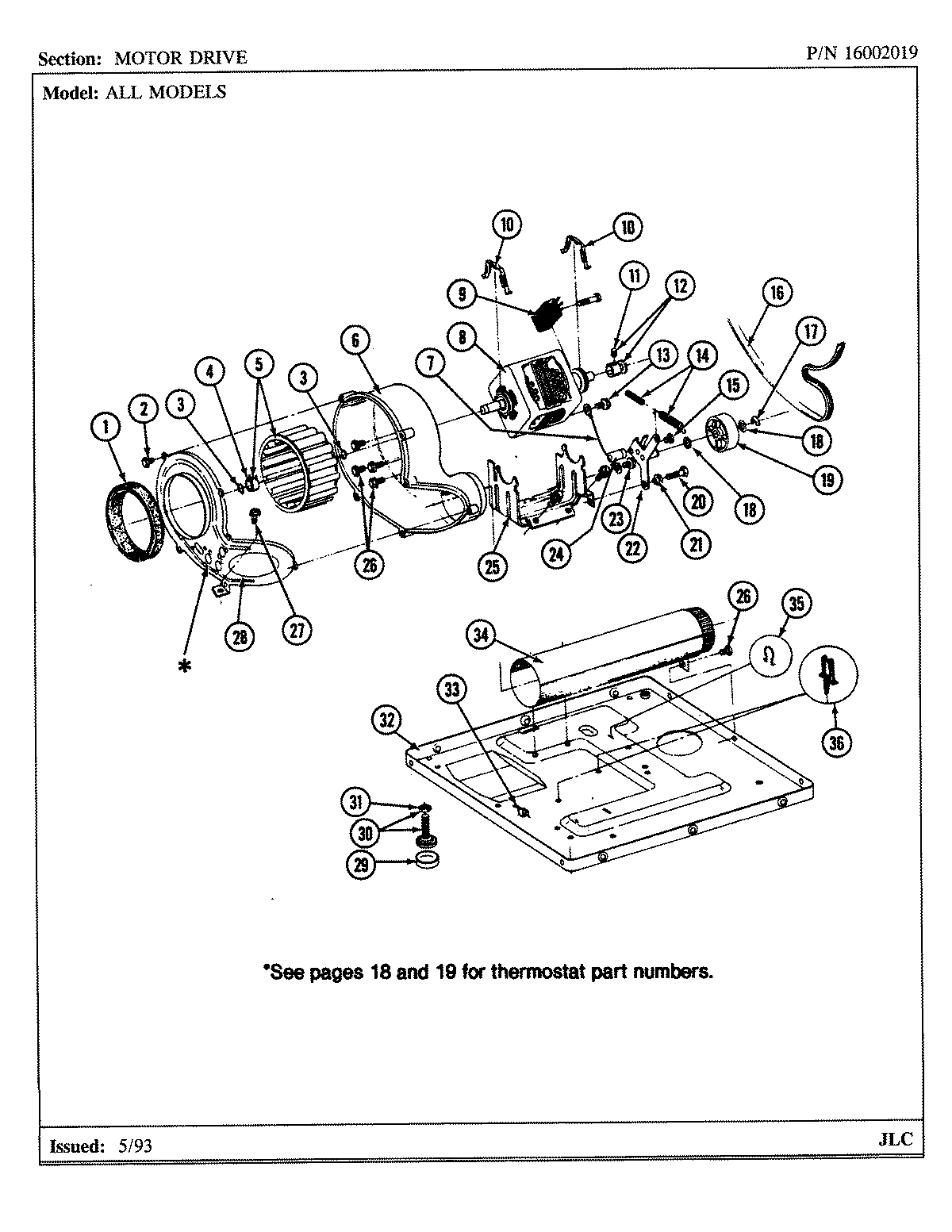

LDE7500ACM 08 – MOTOR DRIVE (LDE7500ACM,ADM) & (LDG)

Products

Position	Product
1	WPY312901 Whirlpool Blow Seal
3	WP9703438 Whirlpool Snap Retaining Ring
4	WP312967 Whirlpool Clamp
5	Y303836 Whirlpool Dryer Blower Wheel
6	MAY Y312893
7	MAY 901220
8	W10410999 Whirlpool Dryer Drive Motor
9	MAY Y303879
9	MAY Y303877
9	MAY 306207
10	WPY015825 Whirlpool Motor Clip
11	MAY Y053241
12	MAY Y305185
13	MAY 910343
14	MAY Y303945
15	WPW10116751 Whirlpool Screw
16	WPY312959 Whirlpool Dryer Drum Belt
17	WP354987 Whirlpool C-Clip
18	MAY Y312527
19	WP6-3037050 Whirlpool Idler Pulley
20	WPY014874 Whirlpool Screw
21	SLEEVE, IDLER ARM —-S
22	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
23	WP90767 Whirlpool Screw
24	WPW10116756 Whirlpool Spacer
25	MAY 312897
26	MAY Y310632
27	MAY Y313561
28	MAY 314846
29	WPY314137 Whirlpool Rubber Foot
30	W10176519 Whirlpool Leveling Feet
31	WP62739 Whirlpool Nut
32	MAY Y303361
33	MAY Y310376
34	MAY Y303442
35	MAY 410490
36	MAY Y313262
