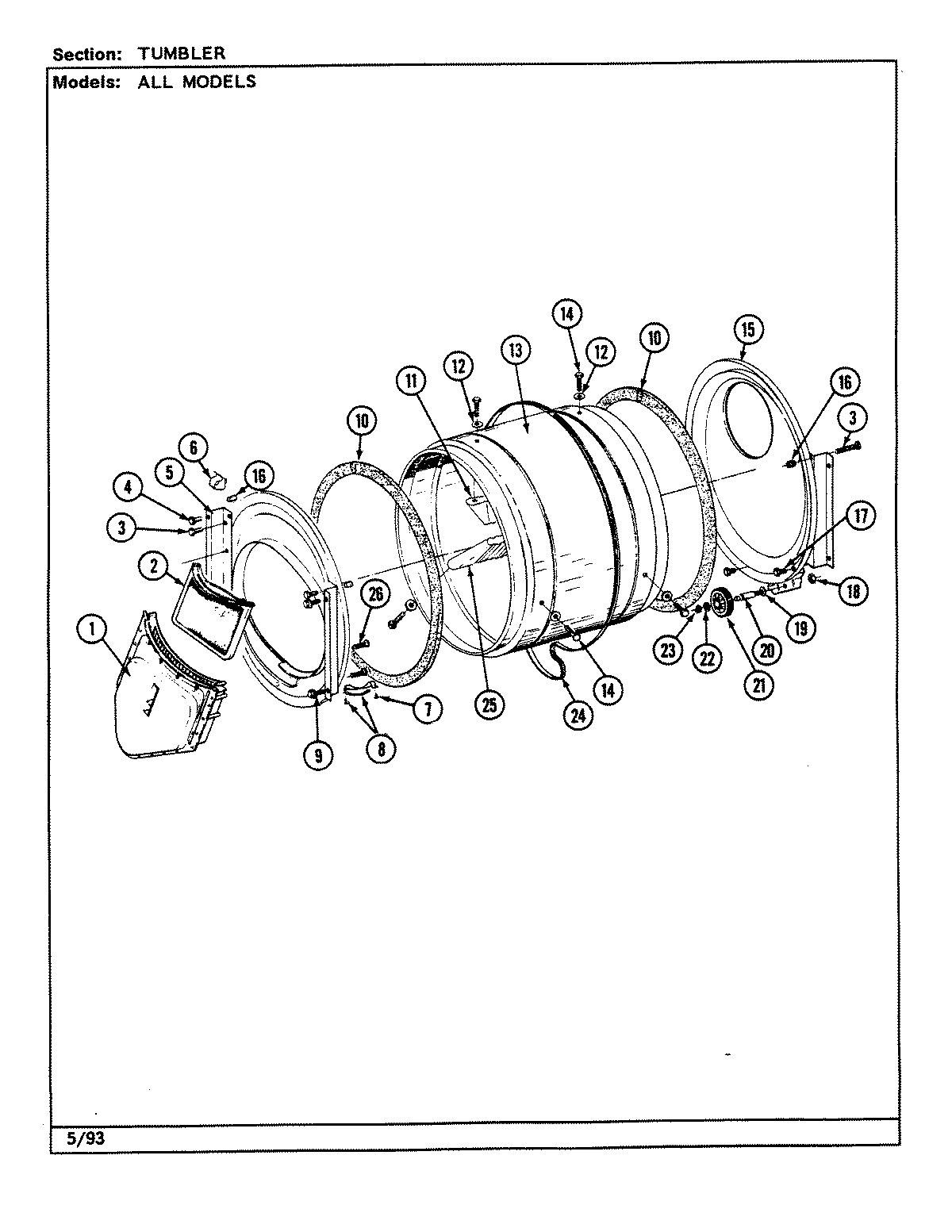

LDE7500ACM 11 – TUMBLER (LDE7500ACM,ADM) & (LDG)

LDE7500ACM 11 – TUMBLER (LDE7500ACM,ADM) & (LDG)

Written by

in

LDE7500ACM 11 – TUMBLER (LDE7500ACM,ADM) & (LDG)

Products

PositionProduct
1MAY Y307112
2MAY Y307107
3MAY 313764
4MAY Y313561
5MAY 307109
6MAY Y310376
7WP210720 Whirlpool Rivet
8306508 Whirlpool Dryer Front Glide Kit
9MAY Y310632
10WP314820 Whirlpool Felt Seal
11MAY 314803
12MAY 314158
13MAY 314802
14MAY Y310759
15MAY Y308544
16MAY 313915
17WP90767 Whirlpool Screw
18MAY 312538
20WP6-3129480 Whirlpool Roller Shaft
21MAY Y303373
22WP312535 Whirlpool Washer
23WP9703438 Whirlpool Snap Retaining Ring
24WPY312959 Whirlpool Dryer Drum Belt
2533001004 Whirlpool Baffle
26SCREW, INLET DUCT —-S
