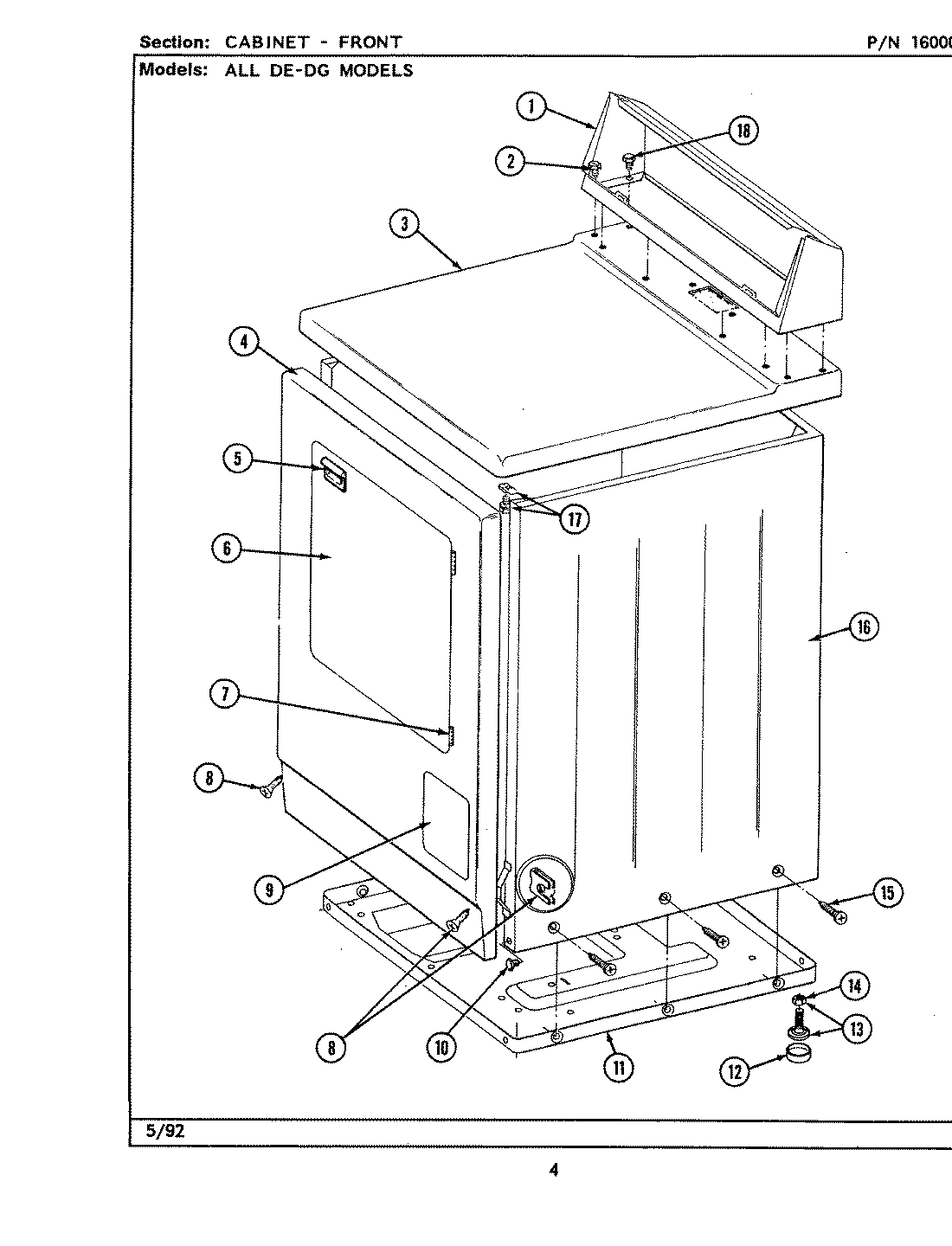

LDE7500ADE 01 – CABINET-FRONT (LDE7500ACE,ADE) & (LDG)

LDE7500ADE 01 – CABINET-FRONT (LDE7500ACE,ADE) & (LDG)

Written by

in

LDE7500ADE 01 – CABINET-FRONT (LDE7500ACE,ADE) & (LDG)

Products

PositionProduct
1MAY Y305193
2MAY Y313559
3TOP COVER ASSY. (WHT)
4PANEL, FRONT (WHT)
5MAY 314946
6MAY Y307111
6MAY 314966
7MAY 307099
8SCREW & FSTNER ASSY (FT. PNL)
10MAY Y310632
11MAY Y303361
12WPY314137 Whirlpool Rubber Foot
13W10176519 Whirlpool Leveling Feet
14WP62739 Whirlpool Nut
15213007 Whirlpool Screw #12
16MAY 307124
17MAY 204445
18WP90767 Whirlpool Screw
