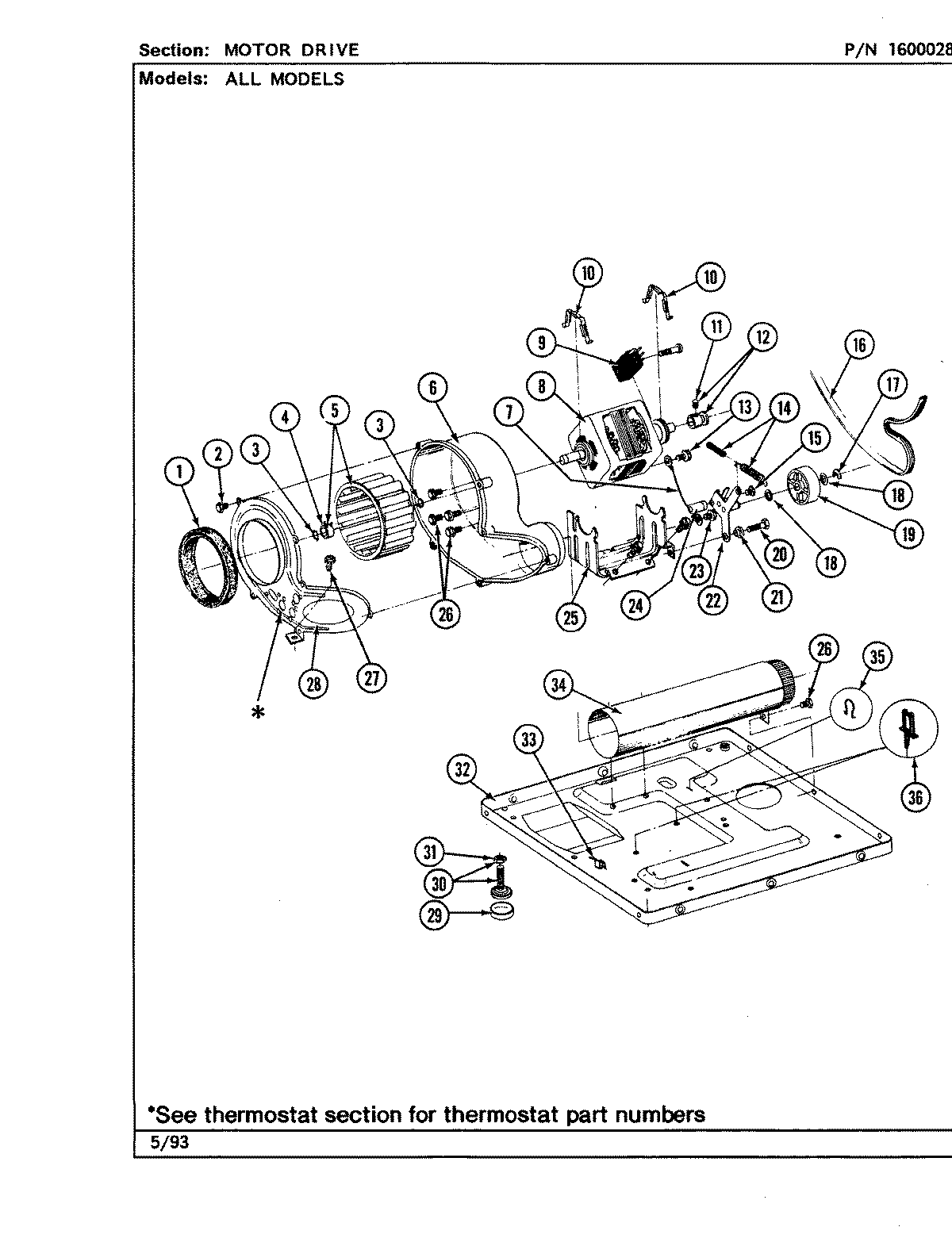

LDE7500ADE 12 – MOTOR DRIVE (LDG7500AAL,AAW,ABL,ABW)

LDE7500ADE 12 – MOTOR DRIVE (LDG7500AAL,AAW,ABL,ABW)

Written by

in

LDE7500ADE 12 – MOTOR DRIVE (LDG7500AAL,AAW,ABL,ABW)

Products

PositionProduct
3WP9703438 Whirlpool Snap Retaining Ring
4WP312967 Whirlpool Clamp
5Y303836 Whirlpool Dryer Blower Wheel
6MAY Y312893
7MAY 901220
8W10410999 Whirlpool Dryer Drive Motor
9MAY Y303877
9MAY Y303879
9MAY 306207
10WPY015825 Whirlpool Motor Clip
11MAY Y053241
12MAY Y305185
13MAY 910343
14MAY Y303945
15WPW10116751 Whirlpool Screw
16WPY312959 Whirlpool Dryer Drum Belt
17WP354987 Whirlpool C-Clip
18MAY Y312527
19WP6-3037050 Whirlpool Idler Pulley
20WPY014874 Whirlpool Screw
21SLEEVE, IDLER ARM —-S
22WP6-3033630 Whirlpool Dryer Idler Arm Assembly
23WP90767 Whirlpool Screw
24WPW10116756 Whirlpool Spacer
25MAY 312897
26MAY Y310632
27MAY Y313561
28MAY 314846
29WPY314137 Whirlpool Rubber Foot
30W10176519 Whirlpool Leveling Feet
31WP62739 Whirlpool Nut
32MAY Y303361
33MAY Y310376
34MAY Y303442
35MAY 410490
36MAY Y313262
