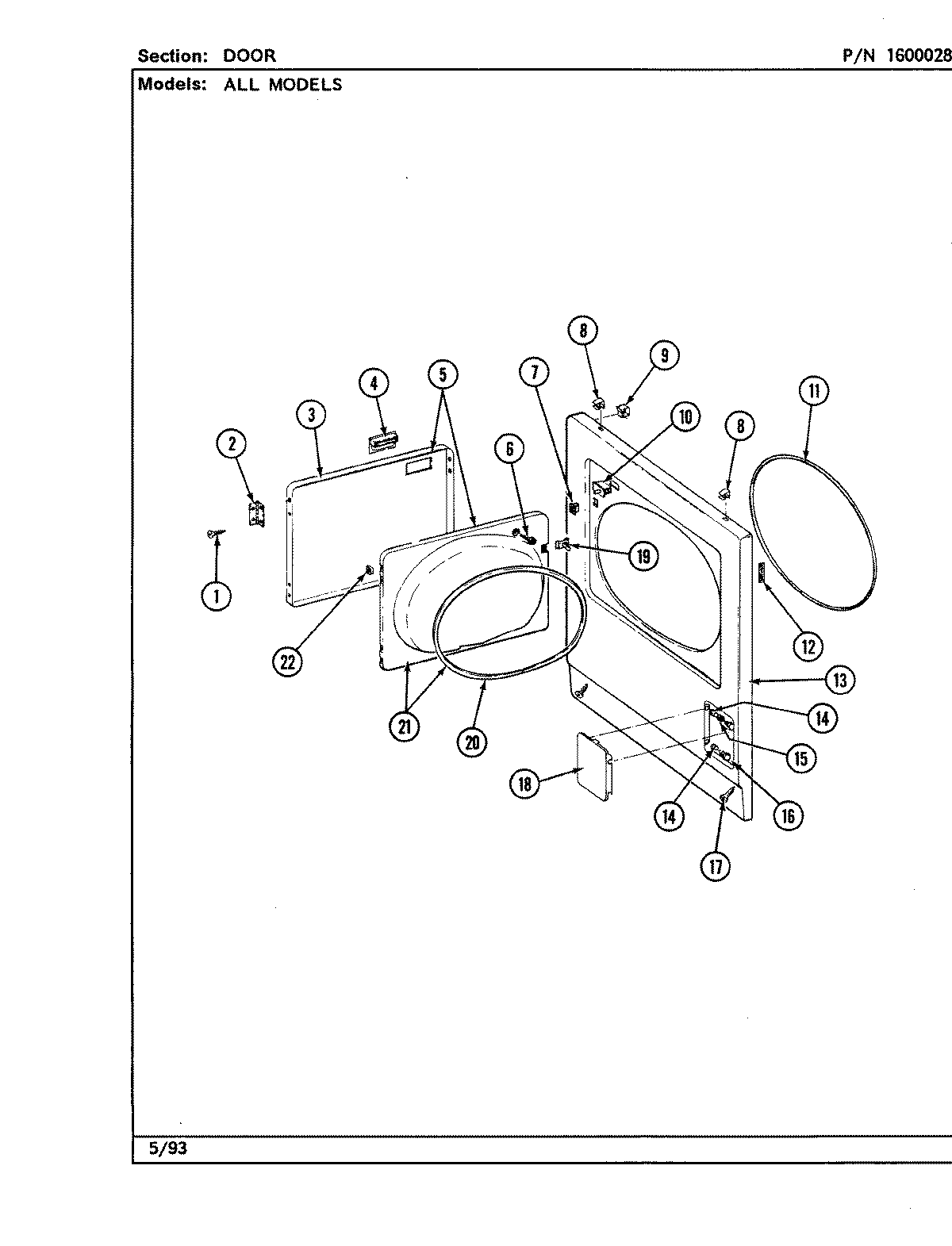

LDE7800ADL 04 – DOOR

Products

Position	Product
2	MAY 307099
3	MAY 314966L
4	MAY 314972
5	MAY 307111L
6	SCREW
7	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
8	MAY 212982
9	MAY Y310376
10	W10169313 Whirlpool Door Switch Kit
11	MAY 314937
12	MAY Y313907
13	MAY 308000L
13	(ALM)
14	BUSHING FOR ACCESS STUD
15	SLEEVE, ACCESS DOOR RUBBER
16	SCREW, BUSHINGS
17	SCREW & FSTNER ASSY (FT. PNL)
18	MAY 302542L
19	MAY 314936
20	MAY 314935
21	MAY 307098
22	MAY 314941
22	CLIP, DOOR LINER
22	MAY 315441
