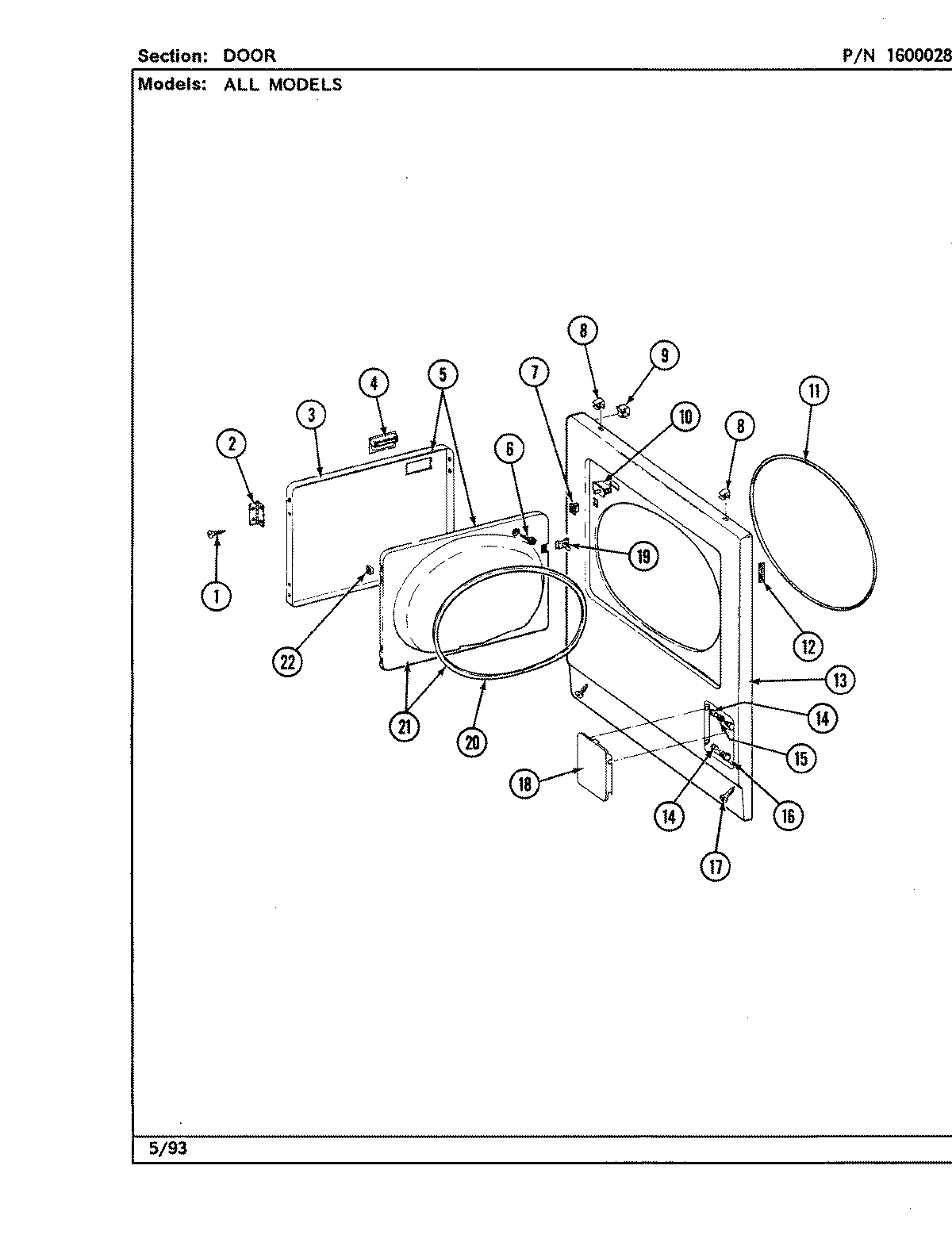

LDE8200ACW 06 – DOOR (LDE8200ACL,ACW,ADL,ADW)

Products

Position	Product
2	MAY 307099
3	MAY 314966
4	MAY 314946
5	MAY Y307111
6	SCREW
7	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
8	MAY 212982
9	MAY Y310376
10	W10169313 Whirlpool Door Switch Kit
11	MAY 314937
12	MAY Y313907
13	PANEL, FRONT (WHT)
14	BUSHING FOR ACCESS STUD
15	SLEEVE, ACCESS DOOR RUBBER
16	SCREW, BUSHINGS
17	SCREW & FSTNER ASSY (FT. PNL)
19	MAY 314936
20	MAY 314935
21	MAY 307098
22	MAY 314941
22	CLIP, DOOR LINER
22	MAY 315441
