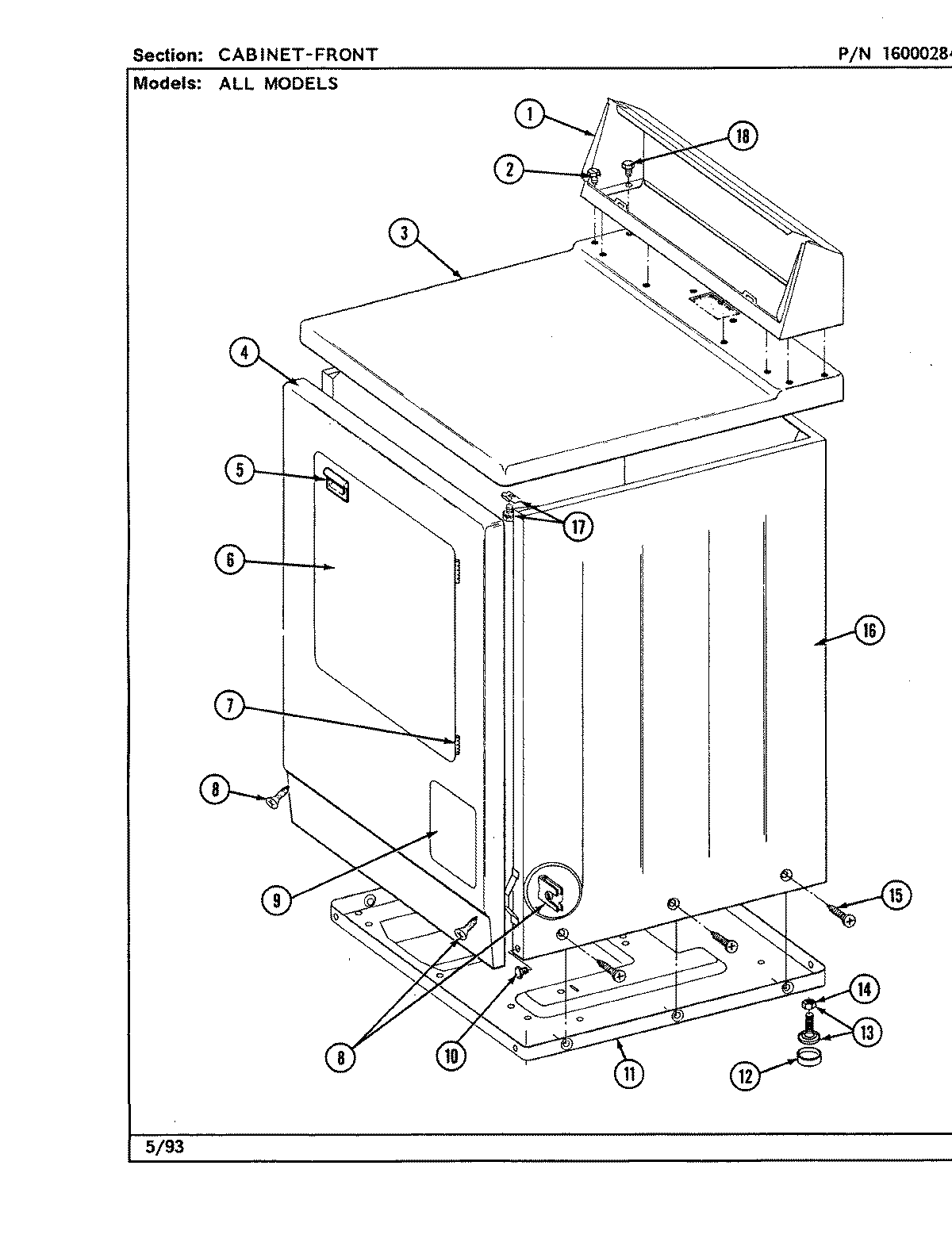

LDE8200ADL 02 – CABINET-FRONT (LDE8200ACL,ACW,ADL,ADW)

LDE8200ADL 02 – CABINET-FRONT (LDE8200ACL,ACW,ADL,ADW)

Written by

in

LDE8200ADL 02 – CABINET-FRONT (LDE8200ACL,ACW,ADL,ADW)

Products

PositionProduct
1MAY 305193L
2MAY Y313559
3MAY 307104L
4MAY 308000L
5MAY 314972
6MAY 314966L
6MAY 307111L
7MAY 307099
8SCREW & FSTNER ASSY (FT. PNL)
10MAY Y310632
11MAY Y303361
12WPY314137 Whirlpool Rubber Foot
13W10176519 Whirlpool Leveling Feet
14WP62739 Whirlpool Nut
15213007 Whirlpool Screw #12
16MAY 307124L
17MAY 204445
18WP90767 Whirlpool Screw
